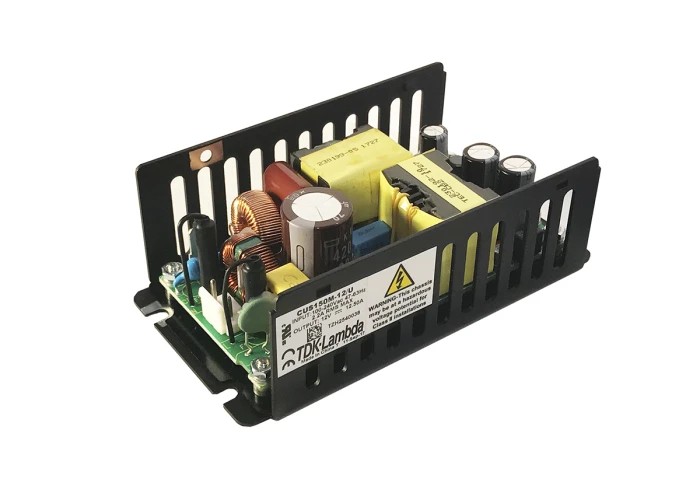

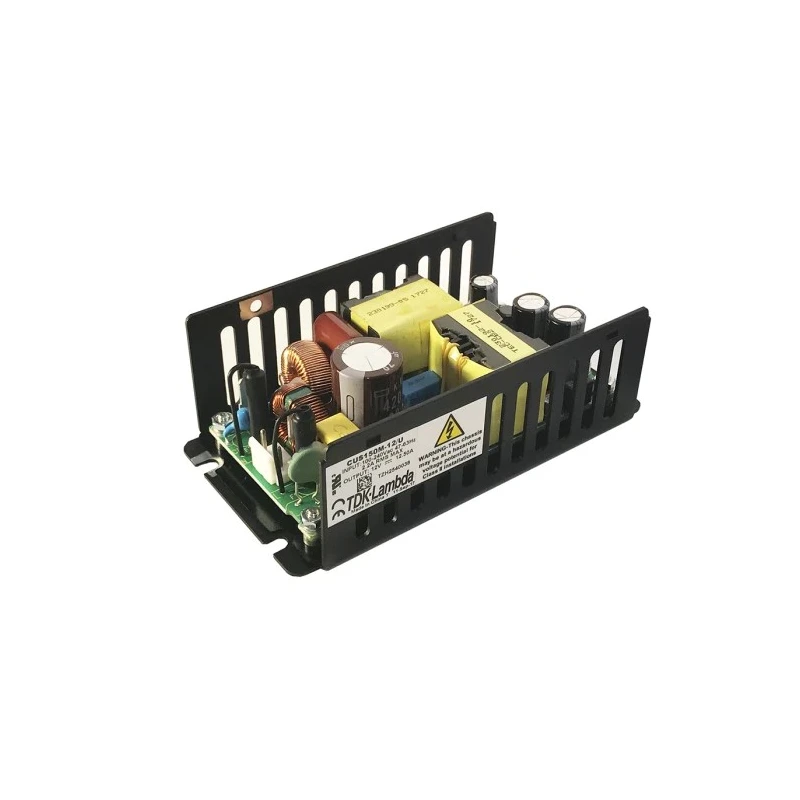

TDK-Lambda Switching Power Supply 28 V dc 150 W Chassis Mount CUS150M-28/U
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK-Lambda |
| Power | 150W |
| Efficiency | 94% |
| Length | 116mm |
| Model | CUS150M-28/U |
| Depth | 38.5mm |
| Gross Weight | 245g |
| Width | 64mm |
| Mount Type | Chassis |
| Series | CUS150M |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 28V dc |
| SMPS Output Current | 5.4A |
| Minimum Input Voltage | 85V ac |
Key Features
- Compact chassis mount with dimensions 116mm x 64mm x 38.5mm.
- Single output delivering 5.4 A current.
- Operates within temperature range -20°C to 85°C.
- High efficiency of 94% ensuring energy savings.
- Compatible with input voltages from 85 V ac to 264 V ac.
- Conforms to multiple international safety and EMC standards.
- Lightweight design weighing 245 grams.
- Includes options for U channel, cover, and top fan for enhanced cooling.
Product Description
TDK-Lambda CUS150M-28/U Switching Power Supply delivers a robust 28 V dc output at 150 W power rating with chassis mount form factor, suitable for diverse industrial and scientific environments. This model features a compact footprint measuring 116 mm length, 64 mm width, and 38.5 mm depth, allowing installation flexibility in constrained spaces.
It supports a single output channel providing 5.4 A current and operates reliably in ambient temperatures ranging from -20°C up to 85°C, making it ideal for harsh conditions. The power supply accepts a wide input voltage range from 85 V ac to 264 V ac, accommodating various power networks.
With an efficiency of 94%, it provides energy-saving operation while meeting stringent regulatory standards including IEC/UL/CSA/EN 62368-1, EN 55022-B, FCC-B, and diverse IEC 61000 immunity and emission certifications. Its design is convection cooled with optional accessories like U channel, cover, and top fan to enhance thermal management.
This switching power supply is suitable for general purpose industrial applications, medical and scientific equipment, test and measurement instruments, broadcast systems, and LED lighting signage. It supports installations classified as Class I and Class II without requiring earth connection.
Compact 2x4 inch chassis footprint for space-efficient mounting. Operates efficiently with convection cooling at temperatures up to 85°C. Wide input voltage coverage ensures versatile deployment. Meets Class B conducted and radiated EMI standards for reliable operation.
Lightweight construction at 245 grams for ease of handling. Designed with multi-standard compliance for global usage. Options available for U channel, cover, and top fan enhance adaptability. Single output configuration with 5.4 A maximum output current.
Suitable for installation in both Class I and Class II environments. Applications cover industrial, medical, test & measurement, broadcast, and LED lighting fields. Explore our comprehensive catalog of Switching Power Supplies at EnvMart for reliable power conversion solutions tailored to your industrial and scientific requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 150 W.
This unit has an efficiency rating of 94%.
The dimensions are 116 mm in length, 64 mm in width, and 38.5 mm in depth.
It operates within a temperature range of -20°C to 85°C.
It supports an input voltage range from 85 V ac to 264 V ac.
The maximum output current is 5.4 A.
This model is designed for chassis mounting.
Optional accessories include a U channel, cover, and top fan for enhanced cooling.
It is suitable for industrial, medical, test & measurement, broadcast systems, and LED lighting applications.
It conforms to multiple international safety and EMC standards including IEC/UL/CSA/EN 62368-1 and EN 55022-B.
The weight of this model is 245 grams.
Yes, it supports installations classified as Class I and Class II without requiring an earth connection.
