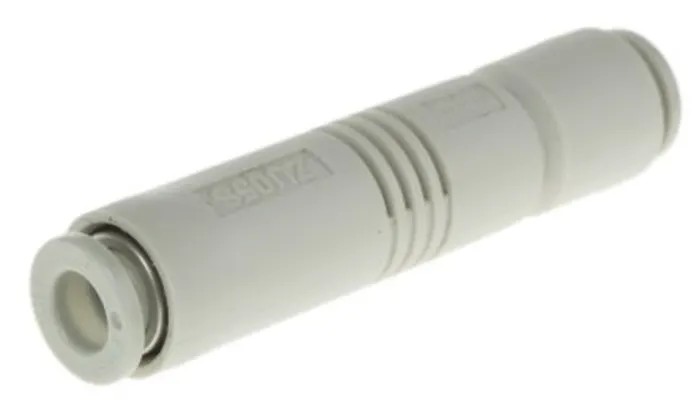

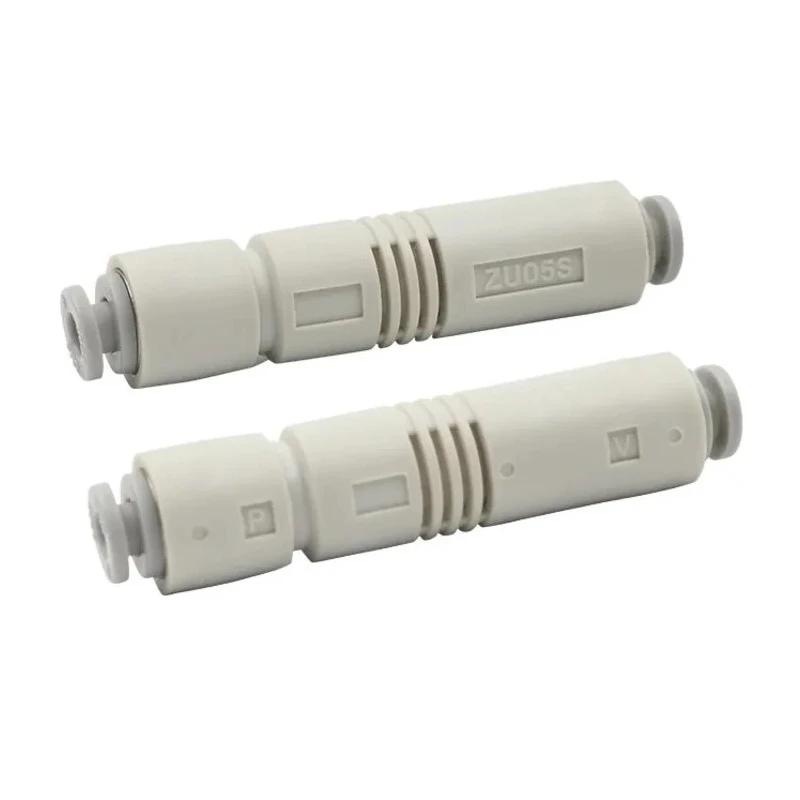

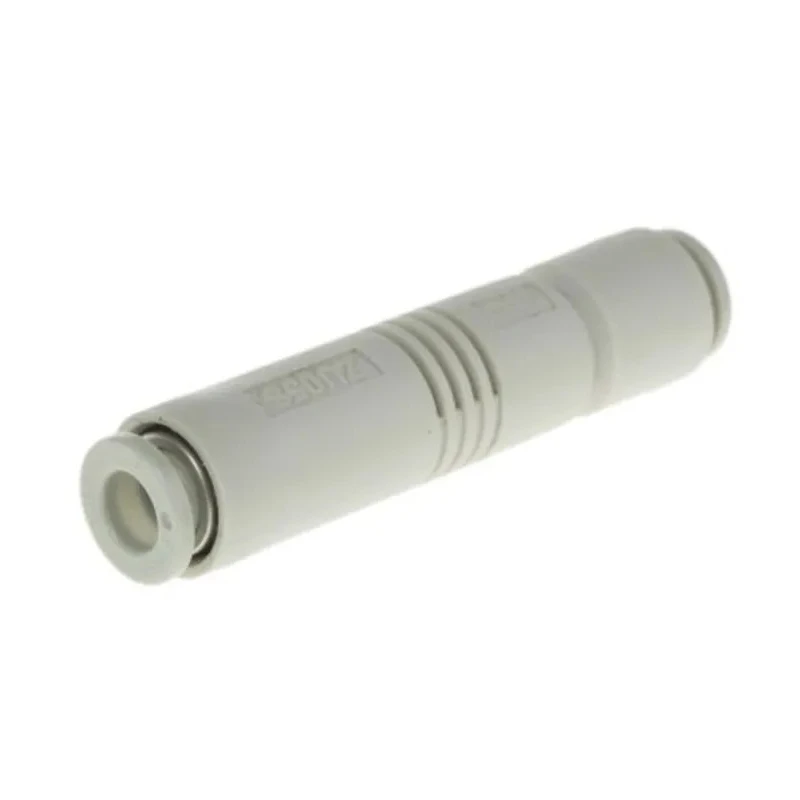

SMC Compact Vacuum Generator with 0.5 mm Nozzle Diameter ZU05SA
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Model | ZU05SA |
| Standards/Approvals | RoHS |
| SMC Vacuum Ejector, 0.5mm nozzle , -85kPa 7L/min, ZU seriesBrand | SMC |
Key Features
- Provides a maximum flow rate of 16 l/min for faster cycle handling.
- Maximum vacuum pressure of −90 kPa ensures secure gripping.
- Operates with air consumption of 14 l/min to minimize supply demand.
- Supports tubing made of FEP, PFA, Nylon, and polyurethane for versatile application.
- Equipped with ports accepting one-touch fittings for ø6 tubing for easy integration.
- Operates reliably within a temperature range of −5 °C to 50 °C without moisture freezing.
- Functions optimally at a standard supply pressure of 0.45 MPa, adjustable between 0.1 to 0.6 MPa.
- Suitable for pick-and-place tasks of electronic components and lightweight assembly.
Product Description
SMC ZU05SA Vacuum Generator is a compact pneumatic ejector featuring a 0.5 mm nozzle diameter designed for creating negative pressure for small-scale handling and automation in industrial settings. It operates using compressed air to provide suction, making it ideal for pick-and-place and component transfer applications.
This vacuum generator offers a maximum flow rate of 16 l/min, allowing faster cycle handling and efficient suction performance. With a maximum vacuum pressure of −90 kPa, it provides a secure grip on small components during handling processes. The air consumption is optimized at 14 l/min, minimizing air supply demand while maintaining effective vacuum generation.
The unit supports a variety of tubing materials including FEP, PFA, Nylon, and polyurethane, enhancing its versatility across different pneumatic systems. It features ports compatible with one-touch fittings and accepts ø6 diameter tubing for convenient connection and integration in existing systems.
Designed to operate in typical industrial environments, this product functions reliably within an operating temperature range of −5 °C to 50 °C, provided that moisture in the supply or tubing does not freeze. The standard supply pressure is 0.45 MPa with operational flexibility ranging from 0.1 to 0.6 MPa, which adjusts suction flow and vacuum depth accordingly.
Applications include pick-and-place of electronic components on production lines, lightweight assembly and handling tasks in automation cells, and use with pneumatic grippers for small-part transfer. It is also suitable for laboratory automation requiring a compact vacuum source.
Maximum flow rate 16 l/min for faster cycle handling. Maximum vacuum pressure −90 kPa for secure grip. Air consumption 14 l/min to minimize supply demand. Supports FEP, PFA, Nylon, and polyurethane tubing for versatility.
Ports accept one-touch fittings with ø6 tubing. Operating temperature range −5 °C to 50 °C. Standard supply pressure 0.45 MPa, adjustable 0.1 to 0.6 MPa. Ideal for pick-and-place and assembly automation. Compatible with pneumatic grippers for small-part transfer.
Suitable for laboratory automation requiring compact vacuum supply.
This SMC vacuum generator is manufactured in Japan and complies with RoHS standards. It is engineered for industrial, laboratory, and automation system applications requiring reliable and efficient vacuum generation.
Explore more products in the Vacuum Generator category at EnvMart for quality pneumatic components and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum flow rate of this vacuum generator is 16 l/min, allowing for faster cycle handling during operations.
It can achieve a maximum vacuum pressure of −90 kPa, ensuring a secure grip on components during handling.
This model operates with an air consumption of 14 l/min, which minimizes supply demand while maintaining effective performance.
It supports tubing made of FEP, PFA, Nylon, and polyurethane, providing versatility for different pneumatic systems.
It features ports that accept one-touch fittings for ø6 tubing, facilitating easy integration into existing systems.
The operating temperature range is from −5 °C to 50 °C, provided that moisture in the supply or tubing does not freeze.
The standard supply pressure is 0.45 MPa, with an adjustable range from 0.1 to 0.6 MPa to modify suction flow and vacuum depth.
It is suitable for pick-and-place tasks of electronic components, lightweight assembly, and laboratory automation requiring a compact vacuum source.
Specific dimensions and weight details are not provided in the product information.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
This vacuum generator is manufactured in Japan, ensuring adherence to quality standards in production.
The nozzle diameter of this model is 0.5 mm, designed for creating negative pressure for small-scale handling.
