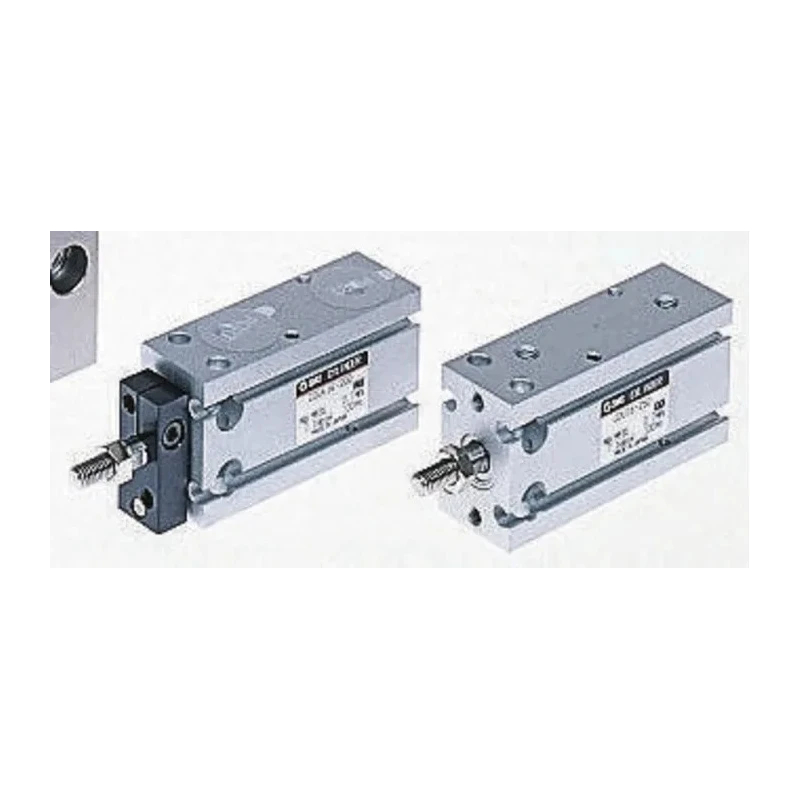

SMC 10 mm Pneumatic Piston Rod Cylinder, CUK Series, Double Acting, Rubber Cushioning, Aluminium Alloy Body, 66mm CDUK16-10D

SMC CDUK16-10D Pneumatic Piston Rod Cylinder from the CUK Series is a high-quality double acting pneumatic cylinder featuring a piston rod diameter of 10 mm and a length of 66 mm with a 10 mm stroke. It is constructed with an aluminium alloy body for high strength and corrosion resistance, making it suitable for demanding industrial environments.

This cylinder incorporates rubber cushions on both ends, effectively damping shock and noise during operation to protect system components and enhance longevity. The piston rod is of single type with male thread conforming to metric standards, ensuring reliable mechanical connection in pneumatic setups.

Designed for a maximum operating temperature up to 70 degrees Celsius and a maximum piston speed of 500 mm/s, it provides robust performance for various pneumatic actuation tasks. The cylinder requires no lubrication, reducing maintenance and ensuring ease of use.

Its compact design allows direct and precise mounting, facilitating space-saving installation in automated machinery, industrial, HVAC, and laboratory pneumatic systems. The cylinder’s double acting function supplies force both for extension and retraction strokes, suitable for diverse applications including manufacturing automation and fluid power systems.

The product contains ports sized M5 for pneumatic line connection, completing a professional-standard pneumatic cylinder solution. Constructed with a durable aluminium alloy body for strength and corrosion resistance. Features rubber cushioning on both ends to absorb shock and reduce noise during operation.

Equipped with a single-type, male thread piston rod adhering to metric standards for compatibility. Designed for a maximum operating temperature of 70°C ensuring reliability under moderate heat conditions. Compact size with 10mm stroke allows for space-saving installation in pneumatic systems.

Double acting action type provides force in both extending and retracting strokes. Suitable for applications requiring free mount cylinders with direct and precise positioning. No lubrication required, reducing maintenance needs.

Maximum piston speed of 500 mm/s ensures rapid operational cycles. Standard port size is M5, enabling ease of connection to pneumatic lines.

This SMC pneumatic cylinder is ideal for industrial tools and equipment applications within hydraulic and pneumatic tool domains, including manufacturing, automation, HVAC, and laboratory pneumatic actuation.
