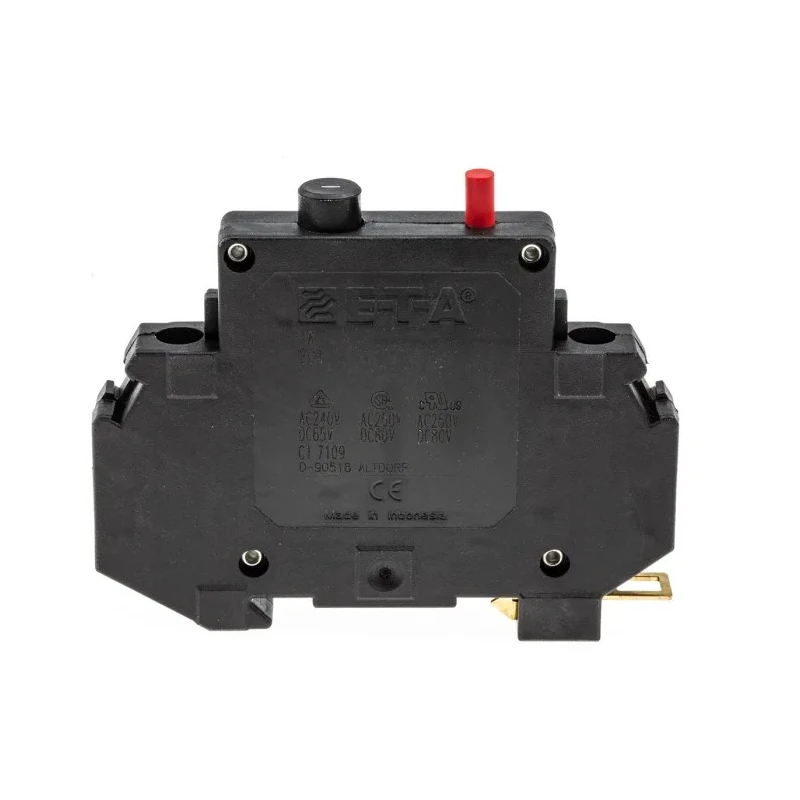

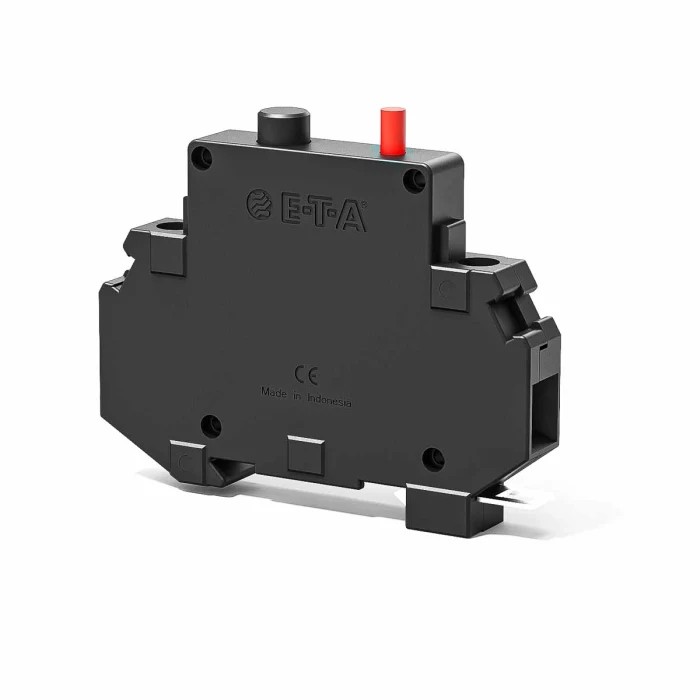

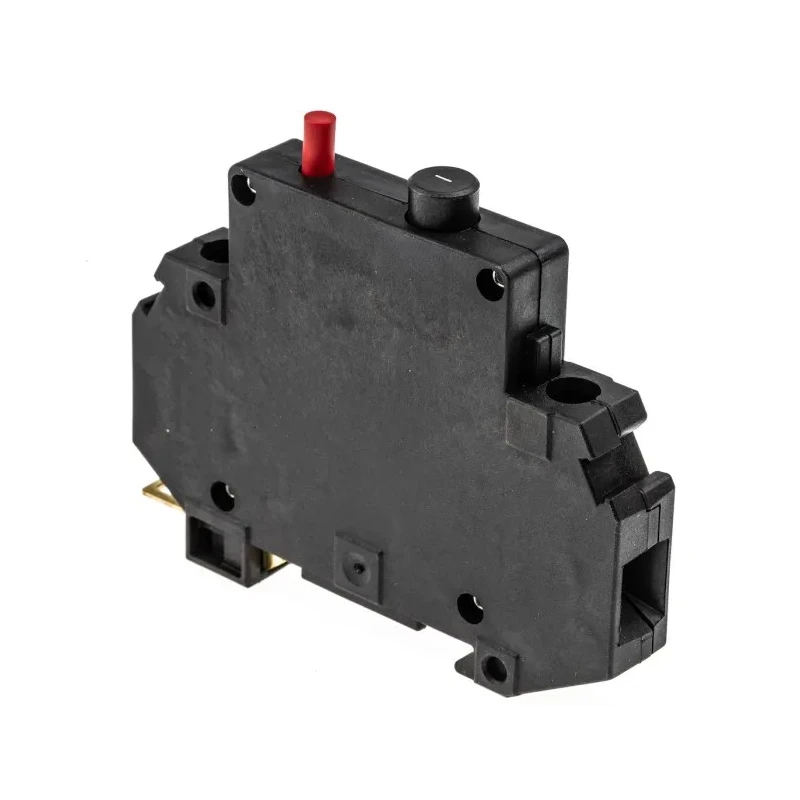

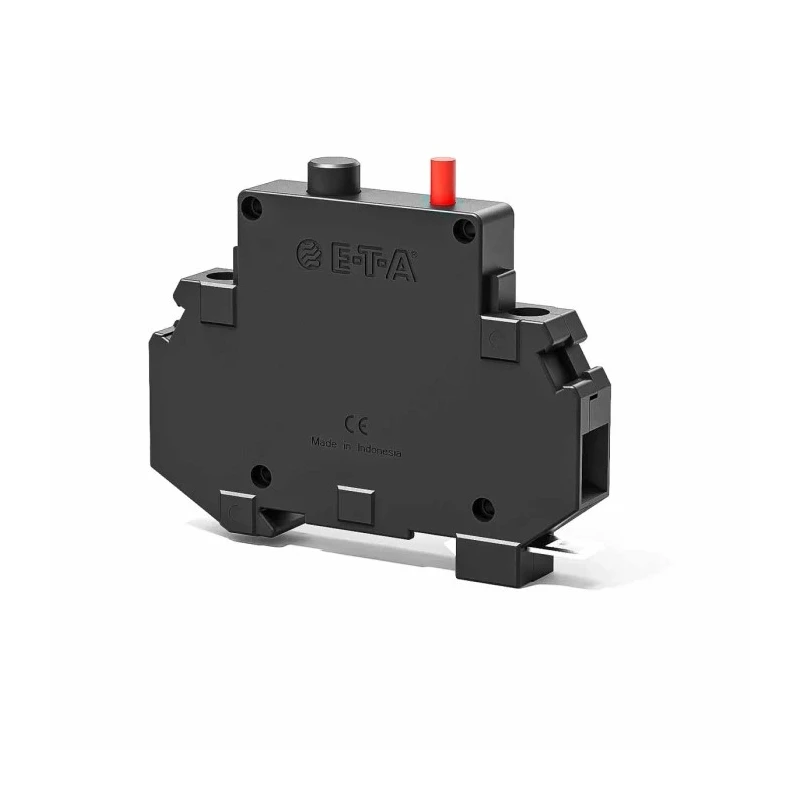

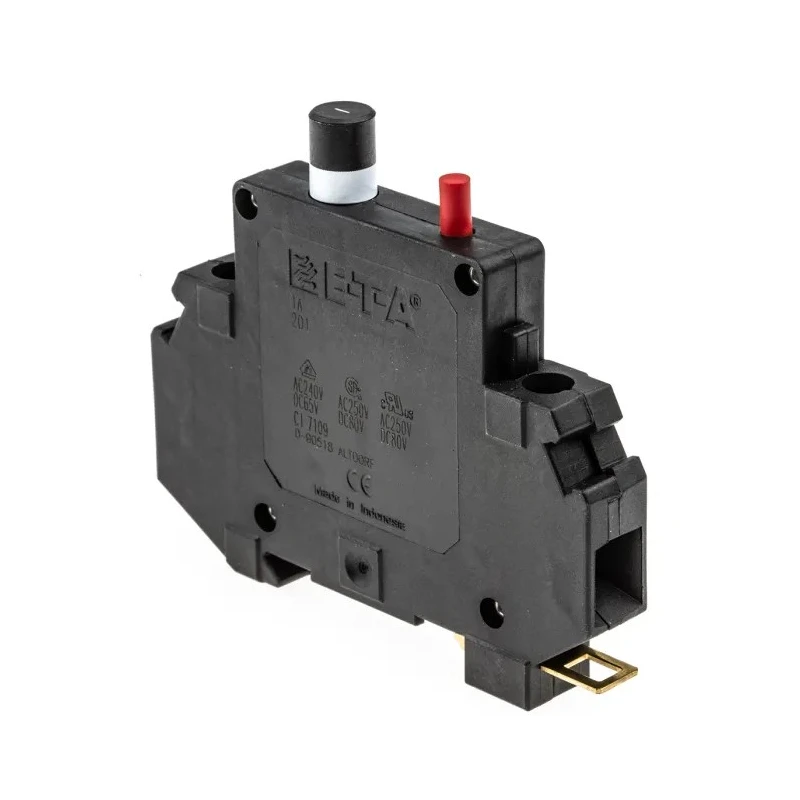

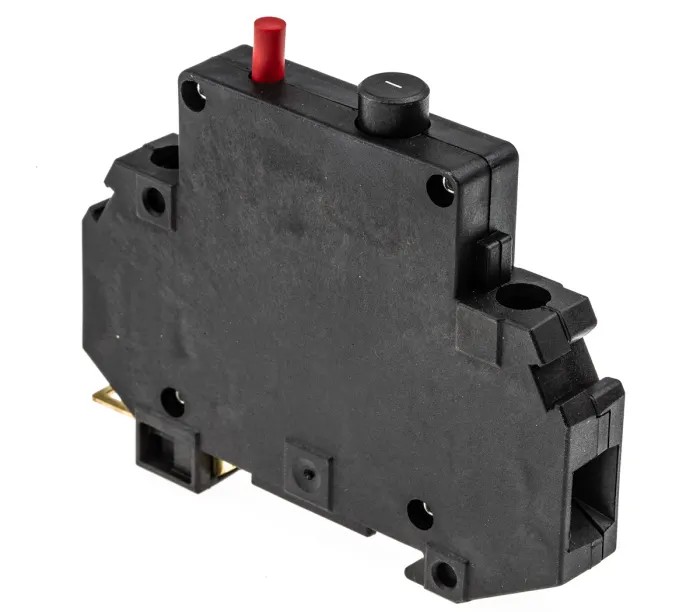

ETA 201 Series Thermal Magnetic Circuit Breaker 1A Current Rating, 1-Pole, DIN Rail Mount 201-1A

ETA 201-1A Thermal Magnetic Circuit Breaker is a specialized device designed to provide superior protection for electrical systems in industrial, commercial, and automation applications. Rated for 1 amp current with a single pole configuration, it offers dependable tripping characteristics making it suitable for finely tuned protection needs.

This breaker mounts securely on DIN rails compatible with modular DIN 43 880 enclosures, facilitating quick and flexible installation across various electrical panels. The device features an innovative thermal magnetic tripping mechanism that combines fast response to short circuits with precise overload protection.

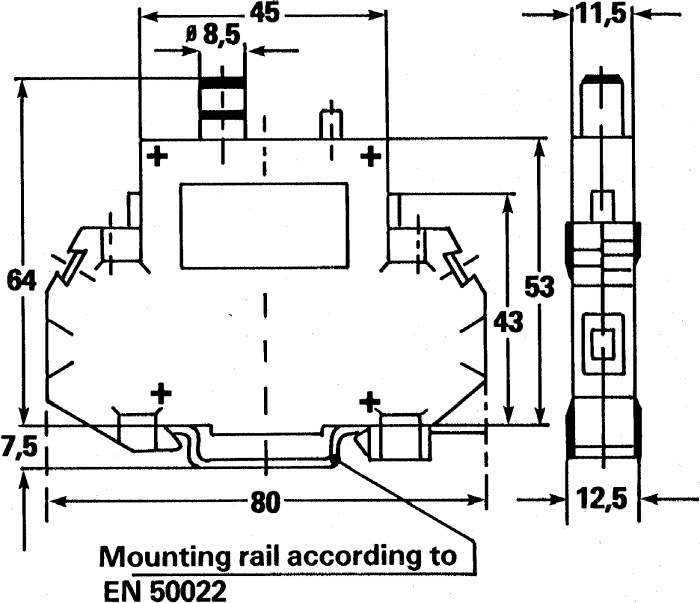

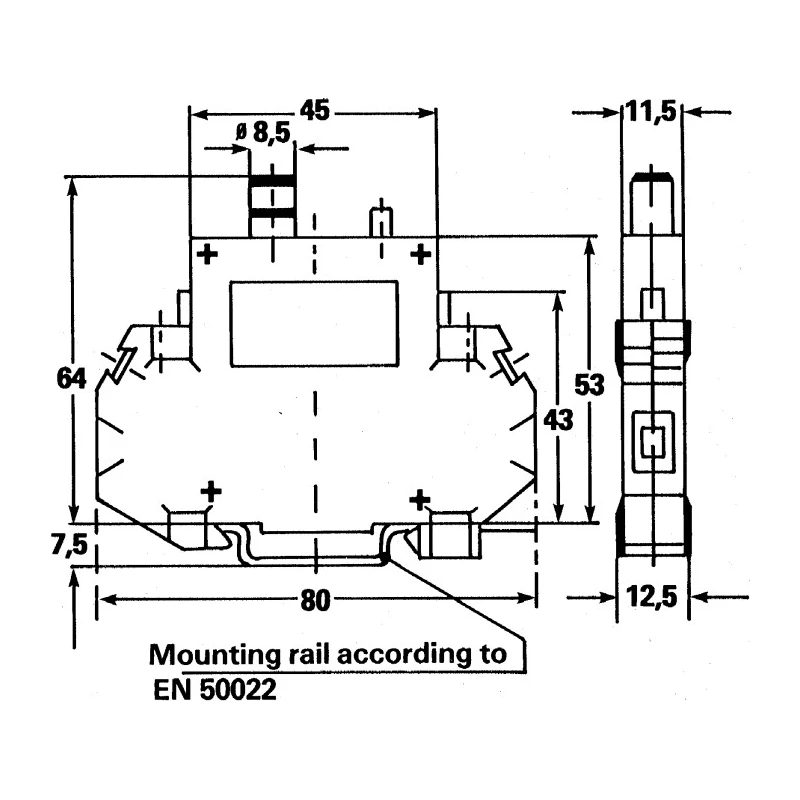

The circuit breaker benefits from a highly compact design, only 12.5mm wide, which is significantly narrower than standard miniature circuit breakers, optimizing panel space. Its trip-free and tease-free operation ensures safety under all working conditions, significantly reducing accidental resets or tampering.

Approved for continuous operation at 250V AC and a DC voltage rating of 65V, this product supports diversified electrical environments. Additional certifications from UL, CSA, VDE, Demko, ABS, BV, and LROS attest to its compliance with international safety standards.

Its breaking capacity of 200A for currents up to 2A enhances protection capabilities, extending suitability to professional and industrial-grade electrical systems. The reset actuator features a twin button system with a black reset and contrasting red trip button for clear visual status indication.

Single-pole, 1A current rating circuit breaker. DIN rail mount compatible with DIN 43 880 enclosures. Thermal magnetic trip mechanism for precise overload and short circuit protection. Ultra-compact width of 12.5 mm optimizes panel space.

Approved for 250V AC and 65V DC operation for versatility. Trip-free and tease-free operation for enhanced safety. Breaking capacity up to 200A improves protection reliability. Twin button reset actuator with black reset and red trip buttons.

This circuit breaker is ideal for use in electrical distribution boards, industrial automation systems, and HVAC control panels, providing robust circuit protection and operational reliability. Harness the efficiency and safety of ETA's 201-1A thermal magnetic circuit breaker for your electrical applications.

Explore more products in the Thermal Circuit Breaker category at EnvMart for comprehensive circuit protection solutions.
