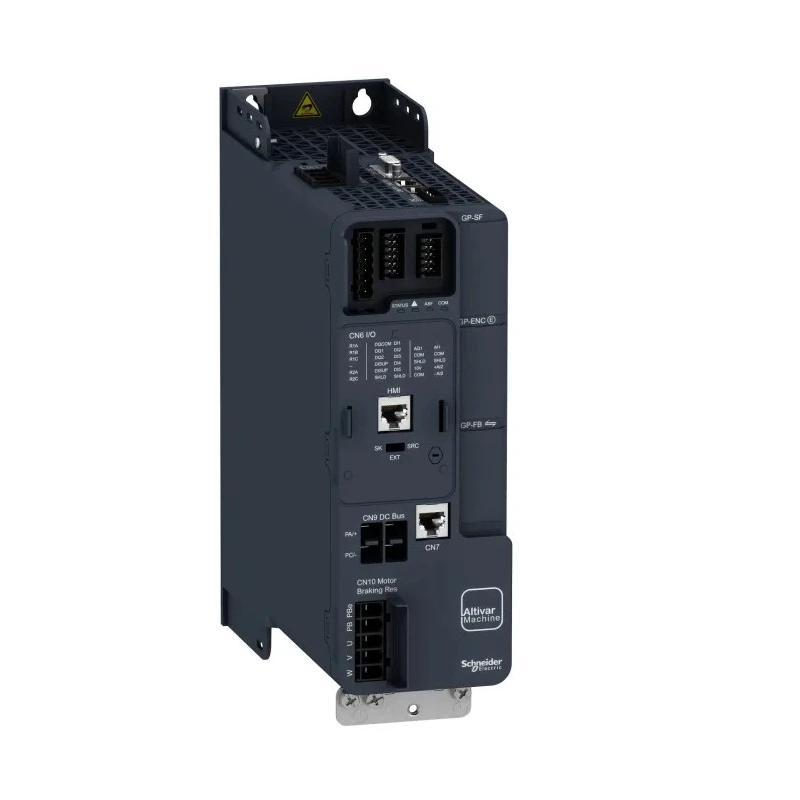

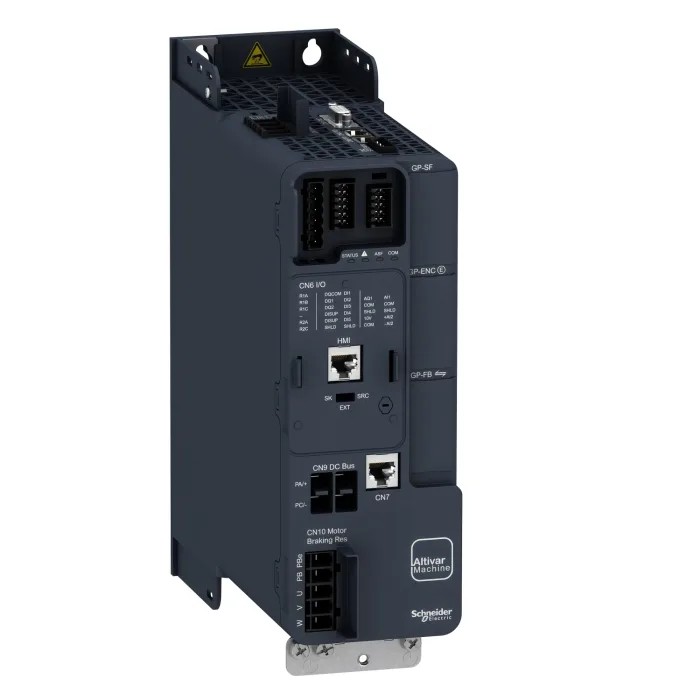

RS PRO Inverter Drive 2.2 kW 3 Phase Altivar Series Cabinet Mount ATV340U22N4
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | ATV340U22N4 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 85mm |
| Series | Altivar |
| Overall Width | 232.5mm |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 8.4A |
| Standards/Approvals | EAN, RoHS, TUV, CE, EAC, IEC, UL, REACH, C-Tick, CSA |
| Maximum Supply Voltage | 480V |
| Overall Depth | 270mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Permanent Magnet Motor, Reluctance Motor |
Key Features
- Operates with a maximum output current of 8.4A for efficient motor control.
- Supports variable speed control for permanent magnet and reluctance motors.
- Designed to operate from 380V up to 480V supply voltage.
- Features IP20 rating suitable for protected indoor environments.
- Compact dimensions of 85 mm length, 232.5 mm width, and 270 mm depth.
- Capable of operating within temperature ranges of 0°C to 50°C.
- Includes Modbus serial communication protocol for seamless integration.
- Meets multiple international certifications including CE, UL, CSA, and TUV.
Product Description
Schneider Electric ATV340U22N4 is a high-performance inverter drive delivering 2.2 kW power for 3-phase synchronous and asynchronous motors. Suitable for industrial automation, packaging, material handling, and hoisting applications, this Altivar Series cabinet-mounted inverter operates efficiently in harsh environments with high resistance to vibration, shock, and non-conductive dust.
This variable speed drive supports motors operating between 380V and 480V AC and features an IP20 rating for indoor installation. Its compact build with dimensions 85 mm (length) x 232.5 mm (width) x 270 mm (depth) and lightweight design (1.8 kg) aid in easy panel integration.
The ATV340U22N4 drive incorporates Modbus serial communication protocols as standard, providing versatile connectivity and control. It supports operation temperatures from 0°C to 50°C, ensuring stable performance under industrial conditions.
Certified to multiple international standards including CE, UL, CSA, and TUV, the product guarantees compliance with electrical safety and environmental norms. Its modular design allows expansion via encoder interface, I/O extension, communication modules, braking resistors, and EMC filters depending on application needs.
The drive is designed primarily for vertical mounting using four fixing holes and is fully integrated with Schneider Electric’s EcoStruxure Machine platform, enabling configuration and diagnostics via SoMachine and SoMove software through DTM support.
Operates motor loads up to 2.2 kW with 8.4A current rating. Variable frequency output range from 0.1 to 599 Hz offers fine speed control. Compatible with permanent magnet and reluctance motors for broad use cases. Compact size and lightweight for flexible panel integration and space-saving.
Multiple communication and expansion options enhance automation capabilities. Designed for demanding industrial environments ensuring long-term reliability. Certified with RoHS, CE, UL, CSA, and other global standards. Environmentally friendly Green Premium label supporting sustainability goals.
Explore the complete range of Inverter Drives at EnvMart for efficient industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inverter drive has a power rating of 2.2 kW, suitable for controlling 3-phase synchronous and asynchronous motors.
It operates with a maximum output current of 8.4A, providing efficient motor control.
This inverter drive supports a supply voltage range from 380V to 480V.
The operating temperature range for this model is from 0°C to 50°C.
It is compatible with permanent magnet motors and reluctance motors, allowing for versatile applications.
The dimensions are 85 mm in length, 232.5 mm in width, and 270 mm in depth.
This model has an IP20 rating, making it suitable for protected indoor environments.
It includes Modbus serial communication protocol for seamless integration with other systems.
It is designed for cabinet mounting and can be mounted vertically using four fixing holes.
It meets multiple international certifications including CE, UL, CSA, and TUV, ensuring compliance with safety and environmental standards.
The output frequency range is from 0.1 Hz to 599 Hz, allowing for fine speed control.
The inverter drive weighs 1.8 kg, contributing to its compact and lightweight design for easy integration.
