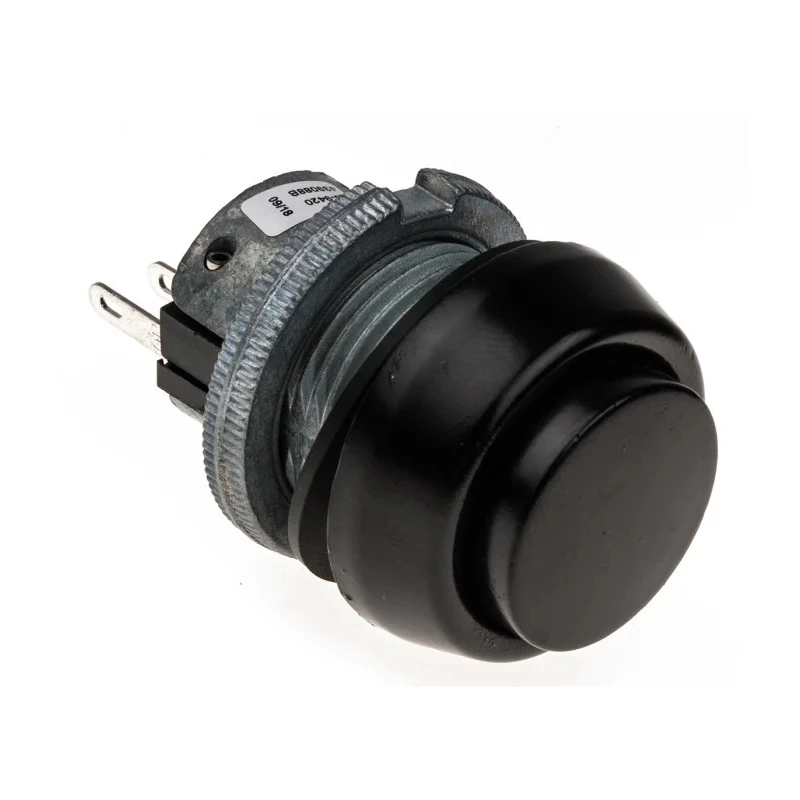

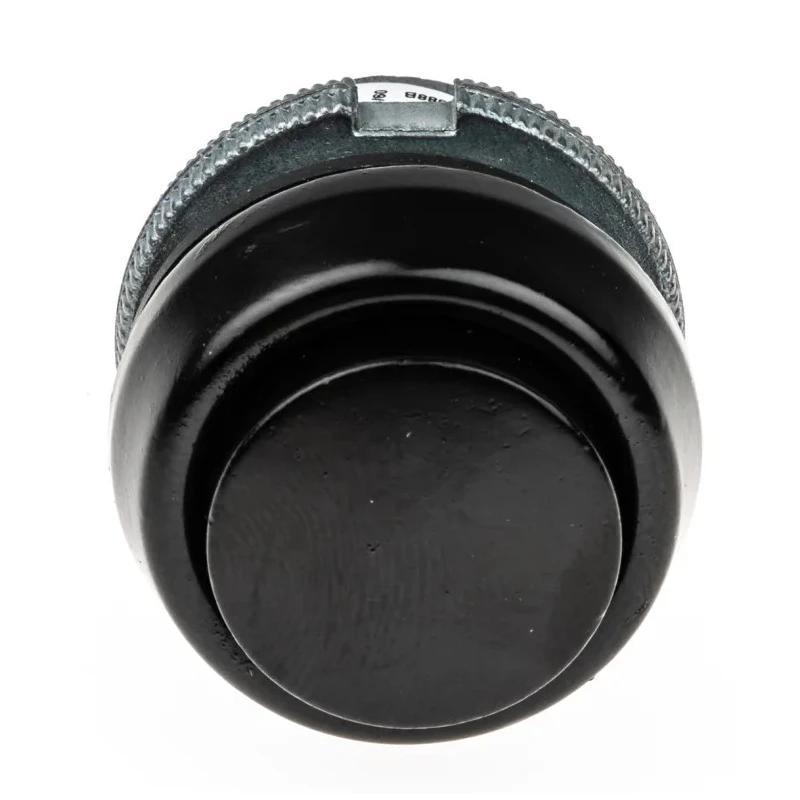

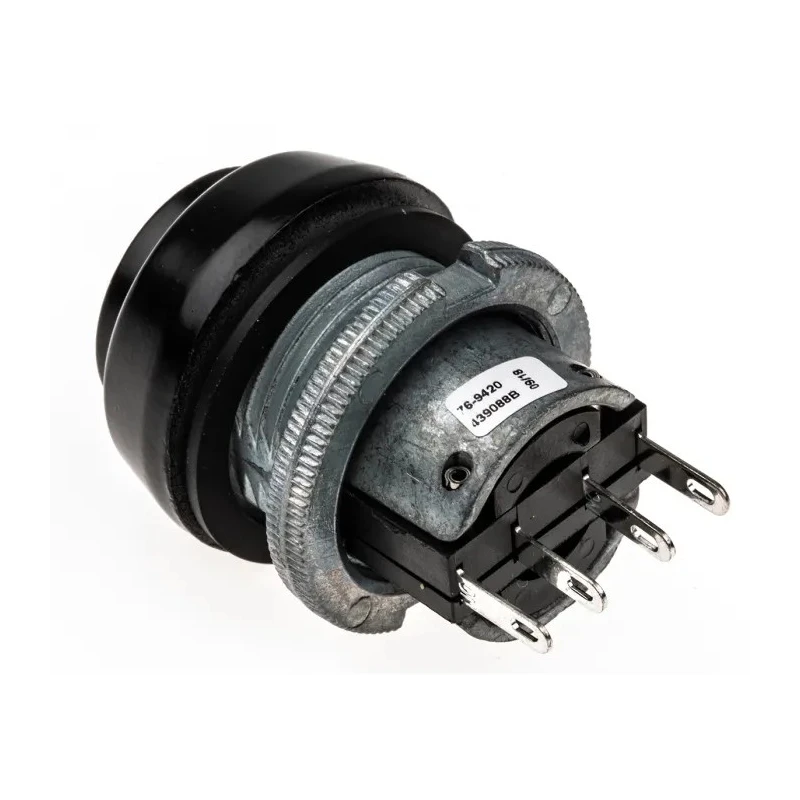

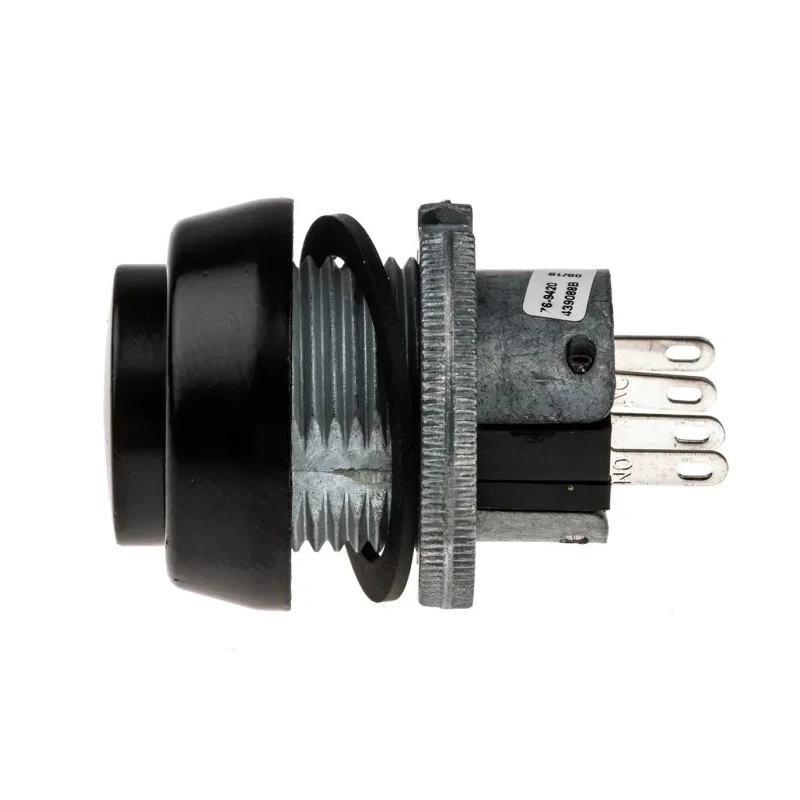

ITW Switches 76-94 Series Panel Mount Momentary Push Button Switch, 22 mm Cutout, SPDT, Clear LED, IP67, 250 76-9420/439088B

ITW Switches 76-9420/439088B is a high-quality momentary push button switch designed for panel mount applications requiring a 22 mm cutout. Featuring a SPDT contact configuration, the switch includes a clear LED indicator and a black round actuator. This switch is rated IP67, ensuring total protection against dust ingress and resistance to temporary immersion in water, making it suitable for challenging industrial environments.

The switch operates at a maximum voltage of 250 V AC/DC and supports a contact current of 10A. It is fitted with solder terminals for secure connections and designed to endure operating temperatures ranging from -40°C up to 125°C. The compact dimensions (43 mm length, 30 mm width, and 23 mm height) enable versatile mounting options.

The bezels and actuators are made from non-sparking zinc alloy, providing additional safety in explosive environments.

This push button switch features a mechanical design that ensures the button only makes electrical contact while pressed, returning to off position immediately upon release. The switch construction is capable of surviving impacts of approximately 5 kg mass dropped from 40 cm height (20J impact resistance).

Certified to CSA and UL standards, this switch delivers reliable performance and safety assurance, making it ideal for robust industrial and process control applications requiring vandal resistance and environmental sealing.

The switch is momentary type, making contact only while pressed. Constructed with a black, round actuator and designed for panel mounting. IP67 rated for total dust protection and temporary immersion in water. Capable of withstanding operating temperatures from -40°C to 125°C.

Features solder terminals and supports up to 250 V AC/DC voltage. Compact size with dimensions 43mm length, 30mm width, and 23mm height. Ideal for industrial, military, mining, petrochemical, material handling, and process control applications.

High impact resistance capable of withstanding a 20J impact. Meets CSA and UL standards ensuring reliable quality and safety. Explore more Push Button Switches and panel mount controls from ITW Switches on EnvMart to meet your industrial and automation requirements.
