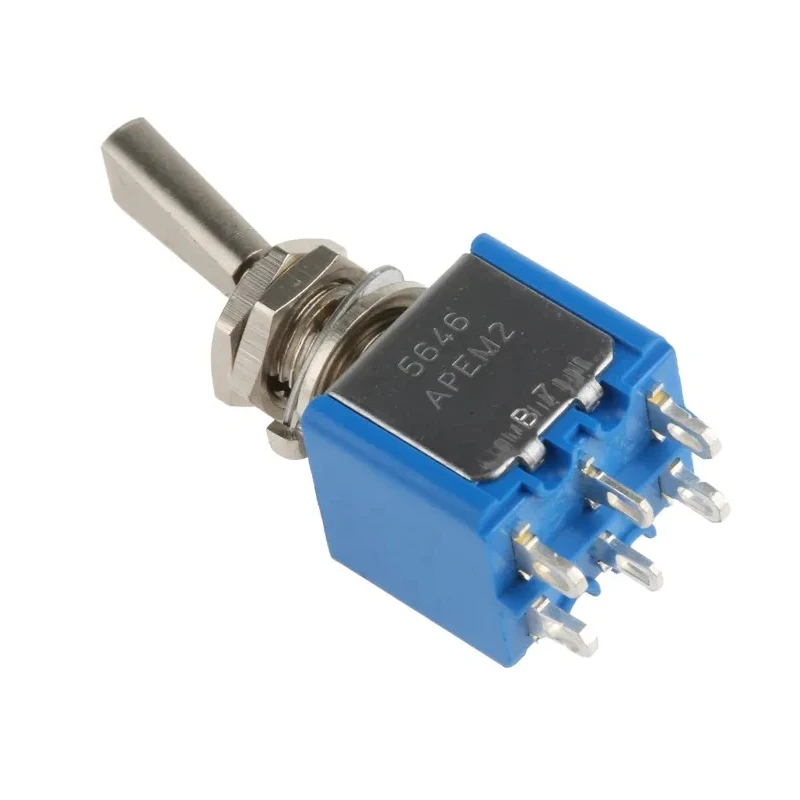

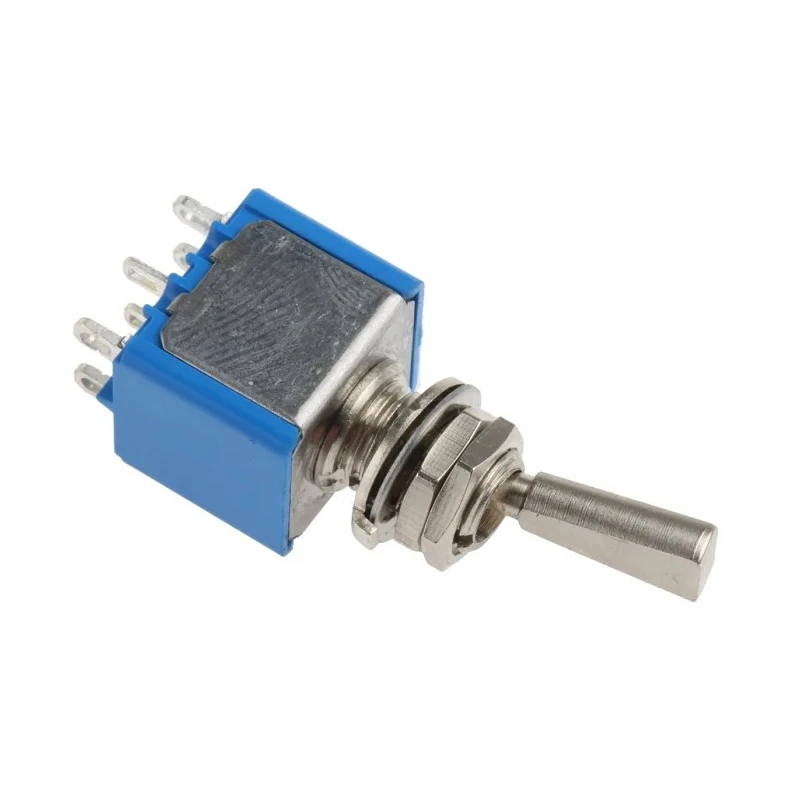

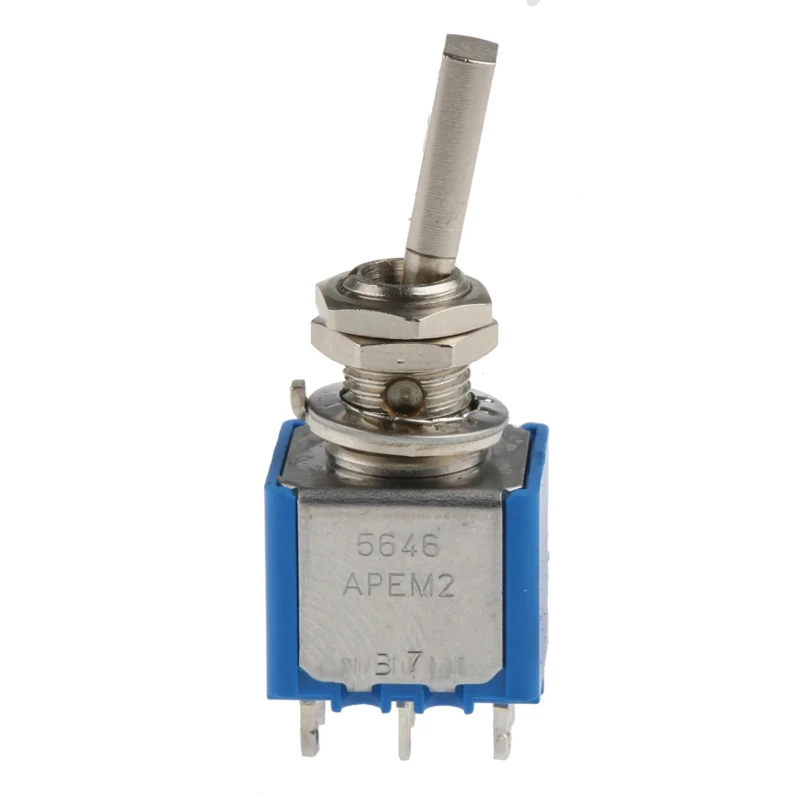

APEM Toggle Switch Panel Mount On-On DPDT Solder Terminal 30 V dc 250 V ac 5646A9
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 34.2mm |
| Length | 13.2mm |
| Model | 5646A9 |
| Width | 12mm |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |

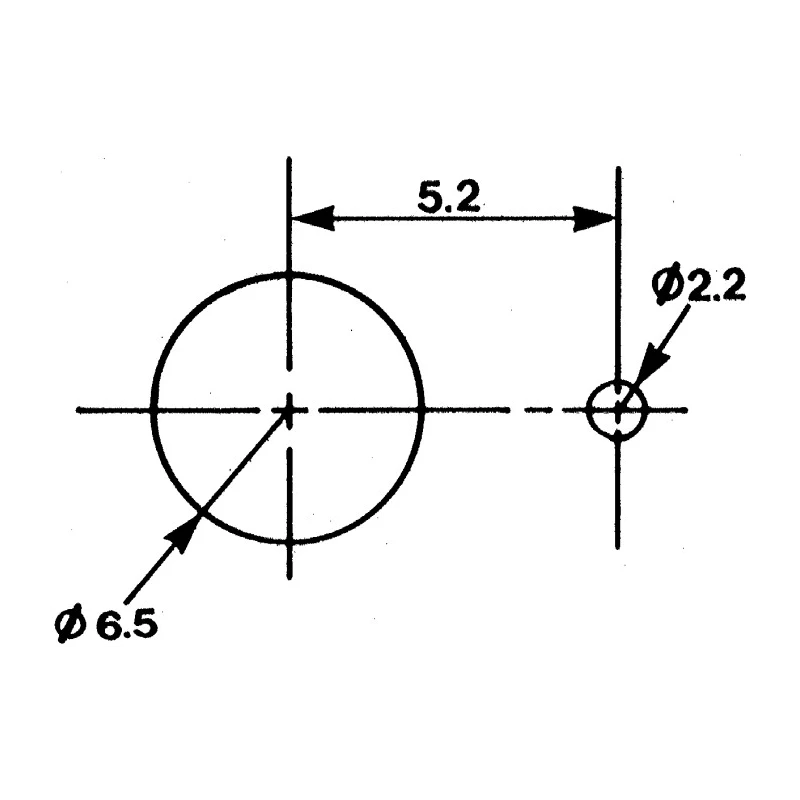

| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, CECC, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 11.4mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- The switch features a brass actuator and Diallyl Phthalate case.
- It supports On-On DPDT operation with solder terminal connections.
- Rated for 30 V dc and 250 V ac with a 4A contact current.
- Compact design with a panel cutout size of 6.5 mm and actuator length of 11.4 mm.
- Operates within a temperature range of -40°C to 85°C.
- Mechanical life rated at 100,000 operations.
- Certified to CSA, CECC, RoHS, and UL standards.
Product Description
APEM 5646A9 Toggle Switch is a high-quality panel mount toggle switch with On-On DPDT configuration. It features solder terminal connections suitable for secure wiring in electrical and automation systems.
The switch has a brass actuator paired with a durable Diallyl Phthalate case, providing mechanical strength and resistance to wear. It supports 4A contact current and silver contacts to ensure reliable electrical performance over its extensive mechanical life of 100,000 operations.
Rated for 30 V dc and 250 V ac, the toggle switch is designed to operate in demanding environments within temperature limits from -40°C up to 85°C. The compact size includes a panel cut-out size of 6.5 mm and actuator length of 11.4 mm, with overall dimensions of 34.2 mm (height), 12 mm (width), and 13.2 mm (length).
This model complies with international standards including CSA, CECC, RoHS, and UL, making it suitable for industrial, laboratory, HVAC, manufacturing, and commercial electrical panel applications. It originates from France, ensuring premium manufacturing standards.
The switch features a brass actuator and Diallyl Phthalate case. It offers On-On DPDT switch operation with solder terminal type. Rated for 30 V dc and 250 V ac with 4A contact current capacity. Compact design with a panel cutout size of 6.5 mm and actuator length of 11.4 mm.
Wide operating temperature range from -40°C to 85°C. Mechanical life rated at 100,000 operations. Certified to CSA, CECC, RoHS, and UL standards. Explore reliable Toggle Switches like APEM 5646A9 here at EnvMart, ideal for your electrical control and panel building needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching capabilities.
It is rated for 30 V DC and 250 V AC, making it suitable for various electrical applications.
This model can handle a maximum contact current of 4A, ensuring reliable performance in electrical circuits.
The dimensions of this toggle switch are 34.2 mm in height, 12 mm in width, and 13.2 mm in length.
The required panel cutout size for this switch is 6.5 mm, allowing for proper mounting in panels.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
This toggle switch uses solder terminal connections, which provide secure wiring for electrical systems.
The mechanical life of this switch is rated at 100,000 operations, indicating its durability under normal use.
This model is certified to CSA, CECC, RoHS, and UL standards, ensuring compliance with international safety and quality standards.
The actuator of this toggle switch is made of brass, providing mechanical strength and resistance to wear.
It is suitable for various applications including industrial, laboratory, HVAC, manufacturing, and commercial electrical panels.
The switch operation type is On-On, allowing it to toggle between two positions effectively.
