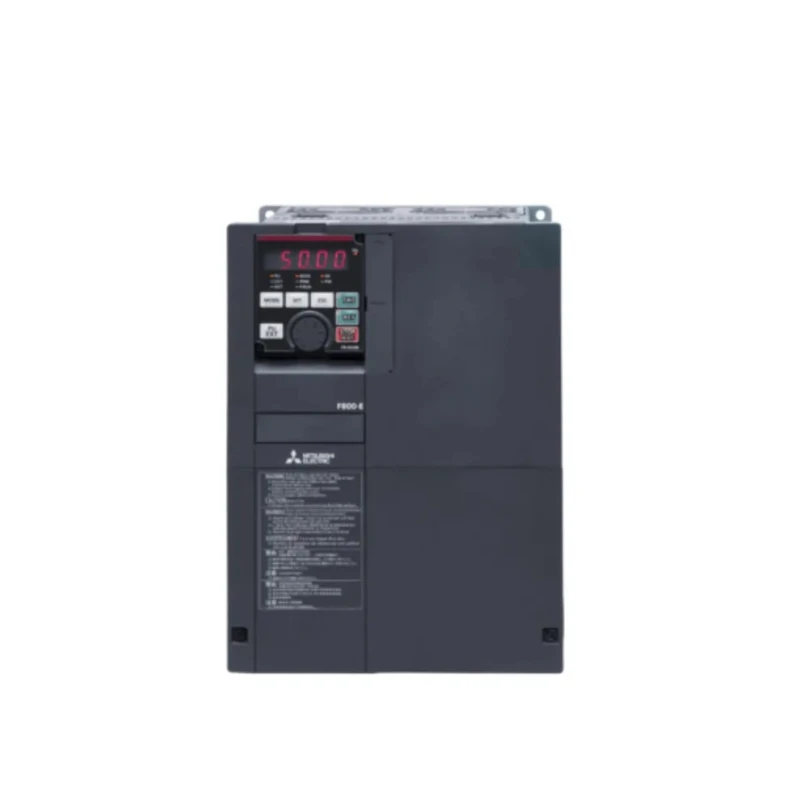

Mitsubishi Electric Inverter Drive 18.5 kW 3 Phase 400V AC 38A Wall Mount FR-F840-00380-E2-60
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FR-F840-00380-E2-60 |
| IP Rating | IP20 |
| Drive Type | PID Control |
| Mount Type | Wall |
| Overall Length | 220mm |
| Series | FR-F800 |
| Overall Width | 300mm |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 60Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | Standard USB port - for simple set-up using a memory stick |
| Number of Phases | 3 |
| Maximum Output Current | 38A |
| Standards/Approvals | CE, cUL, EC, IEC, UL |
| Overall Depth | 190mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Standard 4-Pole Motor |
Key Features
- Optimized pump and fan control variable frequency drive (VFD) for maximum energy saving.
- Equipped with PID control for precise motor speed regulation.
- Wall mount type with compact dimensions (220mm length, 300mm width, 190mm depth).
- Features standard USB port for easy setup via memory stick.
- IP20 rated enclosure ensuring protection against solid objects.
- Supports standard 4-pole motor compatibility for various industrial uses.
- Includes load detection system to identify mechanical problems like broken drive belts.
- Operating temperature range from -10°C to 50°C for diverse environmental conditions.
Product Description
Mitsubishi Electric FR-F840-00380-E2-60 inverter drive is a high-performance 18.5 kW variable frequency drive designed for three-phase 400V AC motor control in industrial and commercial applications. It is specifically optimized for pump and fan control with energy-efficient operation, making it suitable for HVAC and manufacturing environments requiring precise and reliable motor speed regulation.
This inverter drive operates at a maximum output current of 38A and supports PID control to maintain the desired motor performance. The compact wall-mount design with overall dimensions of 220mm length, 300mm width, and 190mm depth allows convenient installation in control panels or machinery enclosures.
The FR-F840-00380-E2-60 features include a standard USB port that enables simple and flexible setup using a memory stick, a real-time clock for timestamping fault messages aiding diagnosis, and a load detection system that monitors mechanical faults such as broken belts. It also incorporates an Anti-Windmill function to protect the drive and motor by smoothly controlling loads already spinning before start-up.
The unit is rated IP20, providing protection against solid objects larger than 12.5mm but is intended for indoor environments. It supports standard 4-pole motors and operates reliably within a temperature range of -10°C to 50°C. Compliance with international certifications (CE, cUL, EC, IEC, UL) assures quality and safety standards.
Manufactured in China, this model is part of Mitsubishi Electric's FR-F800 series, known for energy-saving capabilities contributing to sustainable industrial operations. It is ideal for industrial automation, HVAC systems, water treatment plants, and general manufacturing where motor speed control and energy efficiency are priorities.
Optimized pump and fan control VFD for energy savings. PID control offers precise speed regulation. Compact wall mount design for flexible installation. Standard USB port simplifies configuration and backup. Real-time clock aids troubleshooting and diagnostics.
Load detection system monitors mechanical component status. Anti-Windmill function protects drive and motor during start-up. Compatible with standard 4-pole motors. IP20 rated for indoor protection. Meets CE, cUL, EC, IEC, and UL standards ensuring safety.
Explore a wide range of Inverter Drives and industrial automation products with Mitsubishi Electric at EnvMart for reliable and energy-saving solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 18.5 kW.
This model has a maximum output current of 38A.
It is compatible with standard 4-pole motors.
The operating temperature range is from -10°C to 50°C.
The inverter drive has an IP20 rating, providing protection against solid objects larger than 12.5mm.
This model is designed for wall mounting.
It includes a standard USB port for easy setup using a memory stick.
It employs PID control for precise motor speed regulation.
The overall dimensions are 220mm in length, 300mm in width, and 190mm in depth.
It complies with CE, cUL, EC, IEC, and UL standards.
The load detection system identifies mechanical problems such as broken drive belts.
This model is part of the FR-F800 series.
