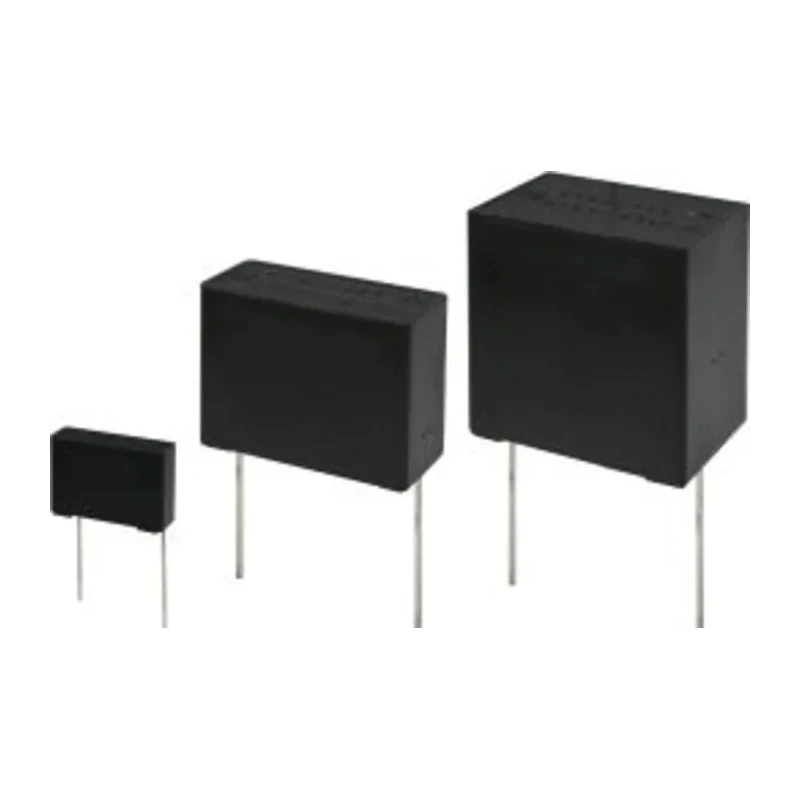

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 470 nF 275V AC Through Hole ECQUAAF474TA

Free Delivery in India | Lowest Global Shipping Charges

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 470 nF 275V AC Through Hole ECQUAAF474TA

Name: Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 470 nF 275V AC Through Hole ECQUAAF474TA
Brand: Panasonic
SKU: 154833



Category Film Capacitors Brand Panasonic Condition New

Specifications

Country of Origin	China
Brand	Panasonic
Height	15mm
Length	26mm
Model	ECQUAAF474TA
Packaging	Bag
Width	8.5mm
Mount Type	Through Hole
Series	ECQUA
Maximum Operating Temperature	110°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-40°C
Terminal type	Solder
Dissipation Factor	0.1%
Lead Length	4mm
Rated AC Voltage	275V ac
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200
Suppression Class	X2
High humidity resistance (THB test	85 °C, 85 %, 240 V.AC, 1000 h )

Key Features

Capacitance value of 470 nF with ±10 % tolerance ensures reliable performance.
Designed for through-hole mounting with 22.5mm lead pitch and 4mm lead length.
Operates at temperatures ranging from -40°C to 110°C, suitable for automotive use.
Offers high humidity resistance and thermal shock resistance for enhanced durability.
Flame-retardant plastic case and non-combustible resin for safety compliance.
Meets automotive standard AEC-Q200 and safety standards CSA E60384-14, EN 60384-14, UL 60384-14.
Terminal type is solder for secure electrical connections.
Compact size with dimensions 26mm length, 15mm height, and 8.5mm width.

Product Description

Panasonic ECQUAAF474TA is a high safety class Film Capacitor X2 specifically designed for interference suppression applications in automotive and industrial environments. This through-hole capacitor offers a capacitance of 470 nF with a tight ±10 % tolerance, ensuring precise electrical performance at a rated AC voltage of 275V. It features a flame-retardant plastic case and non-combustible resin construction, providing enhanced safety and compliance with strict automotive standards such as AEC-Q200.

The capacitor is engineered for high humidity resistance, demonstrated by THB testing at 85°C, 85% humidity, and 240V AC for 1000 hours, as well as robust thermal shock resistance over 1000 cycles between -40°C and 85°C. Its terminal type is solder, facilitating secure and durable electrical connections in PCB assemblies. Dimensionally, it measures 26mm in length, 15mm in height, and 8.5mm in width, with a lead pitch of 22.5mm and 0.8mm lead diameter, optimized for standard through-hole mounting.

Panasonic ECQUAAF474TA also complies with safety standards CSA E60384-14, EN 60384-14, and UL 60384-14, making it suitable for demanding industrial, automotive, and electrical systems. Its low dissipation factor of 0.1% ensures minimal energy loss, enhancing system efficiency.

This capacitor serves critical roles in noise filtering, electromagnetic interference suppression, and safety-critical circuits in automotive electronics, HVAC systems, industrial control panels, and power supplies. The robust construction and certifications underscore its reliability in harsh operating conditions.

Capacitance of 470 nF with ±10 % tolerance for accurate filtering. Rated AC voltage of 275V suitable for automotive interference suppression. Through-hole mounting with 22.5mm lead pitch for easy PCB integration. High humidity and thermal shock resistance for longevity in tough conditions.

Flame-retardant plastic casing enhances safety and compliance. Meets automotive and international safety standards: AEC-Q200, CSA, EN, UL. Compact dimensions allow space-efficient designs. Low dissipation factor of 0.1 % reduces energy loss and heat generation.
