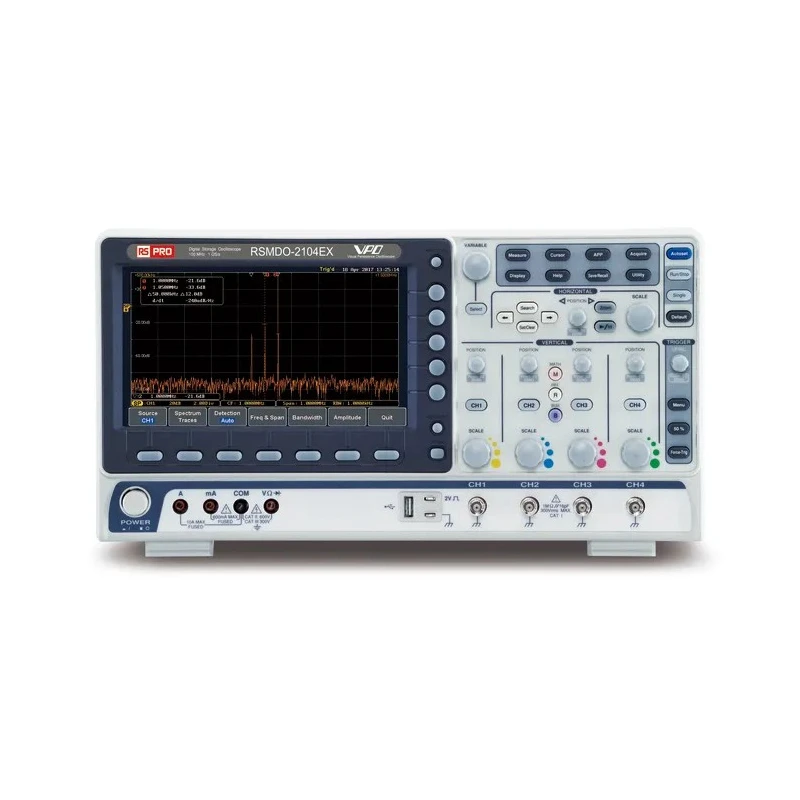

RS PRO 100 MHz Bench Oscilloscope 4 Channels Mixed Domain TFT LCD Display RSMDO-1804802 180-4802
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | TFT LCD |
| Brand | RS PRO |
| Height | 208mm |
| Model | 180-4802 |
| Depth | 127.3mm |
| Width | 384mm |
| Bandwidth | 100MHz |
| Series | RS PRO |
| Screen Size | 8 in |
| Plug Type | USB |
| Interfaces | USB 2 |
| Number Of Channels | 4 |
| Vertical Resolution | 8 bit |
| Memory Depth | 10Mpts |
| Rise Time | 3.5ns |
| Waveform Refresh Rate | 120000per sec |
| Interface Type | CAN, IIC, LIN, RJ45, SPI, UART, USB |
| Oscilloscope Type | Bench |
| Minimum Vertical Sensitivity | 1mV/div |
| Oscilloscope Form | Mixed Domain |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 100s/div |
Key Features
- This bench oscilloscope offers 100 MHz bandwidth suitable for detailed electronic signal analysis.
- Includes 4 analog channels with 1GSa/s maximum real-time sampling rate for comprehensive waveform capture.
- Features mixed domain technology combining time and frequency domain analysis.
- Equipped with a built-in spectrum analyzer and 10Mpts memory depth for advanced measurement capabilities.
- Supports various interface protocols including CAN, IIC, LIN, RJ45, SPI, UART, and USB for flexible connectivity.
- Compact form factor with dimensions 384mm (W) x 208mm (H) x 127.3mm (D) and TFT LCD display ensures clear real-time waveform visualization.
- Includes an integrated Dual Channel 25MHz Arbitrary Waveform Generator and 5V/1A Power Supply outputs.
- Waveform refresh rate up to 120,000 per second enhances signal monitoring responsiveness.
Product Description
RS PRO RSMDO-1804802 is a 100 MHz bench oscilloscope featuring 4 channels and mixed domain technology, designed for precise electronic signal measurement and analysis. Equipped with a high-resolution 8-inch WVGA TFT LCD display, it offers clear and real-time visualization of waveforms and spectral data critical for engineering and development applications.
This oscilloscope supports a wide range of interface types including CAN, IIC, LIN, RJ45, SPI, UART, and USB, enabling versatile connectivity options for integration with various testing environments. The device boasts a memory depth of 10Mpts to capture detailed signal histories with high accuracy.
Included within the RSMDO-1804802 is a built-in spectrum analyzer and a dual channel 25MHz arbitrary waveform generator that facilitates signal creation and frequency domain analysis, essential for RF and mixed signal work. Additionally, the integrated 5V/1A power supply outputs make it convenient for powering development boards and IoT modules directly.
With a maximum waveform refresh rate of 120,000 per second, this instrument delivers high responsiveness, minimizing dead time during signal acquisition. Its vertical sensitivity spans from 1mV/div to 10V/div, complemented by an 8-bit vertical resolution and rise time of 3.5ns, supporting detailed waveform resolution. The minimum time base capacity is 1ns/div.
The compact and ergonomic design, measuring 384mm in width, 208mm in height, and 127.3mm in depth, suits bench-top use in laboratories, manufacturing quality control, educational institutions, and electronic design centers.
100 MHz bandwidth with 4 analog channels for complex signal capture. Mixed domain oscilloscope integrating time and frequency spectrum analysis. Multiple communication interfaces for flexible connectivity. Integrated spectrum analyzer, arbitrary waveform generator, and power supply.
High waveform refresh rate for accurate and real-time observation. Compact design with clear TFT LCD display for ease of use. Horizontal and vertical resolutions supporting fine detail measurement. Ideal for industrial, laboratory, educational, and commercial electronics testing.
This RS PRO oscilloscope exemplifies advanced measurement technology combined with user-friendly features and robust industrial design. Browse more in our Measuring & Testing Instruments category to find complementary Oscilloscopes and test equipment for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The oscilloscope features a bandwidth of 100 MHz, suitable for detailed electronic signal analysis.
It is equipped with 4 analog channels, allowing for comprehensive waveform capture.
The oscilloscope has a maximum real-time sampling rate of 1 GSa/s, enhancing its ability to capture detailed waveforms.
It supports various interface protocols including CAN, IIC, LIN, RJ45, SPI, UART, and USB, providing flexible connectivity options.
The memory depth is 10Mpts, allowing for detailed signal history capture.
It features an 8-inch TFT LCD display, ensuring clear real-time visualization of waveforms.
The vertical sensitivity ranges from 1 mV/div to 10 V/div, supporting detailed waveform resolution.
The rise time is 3.5 ns, which is essential for accurately capturing fast signal transitions.
The minimum time base capacity is 1 ns/div, allowing for precise timing measurements.
It has a waveform refresh rate of up to 120,000 per second, enhancing signal monitoring responsiveness.
The dimensions are 384 mm in width, 208 mm in height, and 127.3 mm in depth, making it suitable for bench-top use.
It includes a built-in spectrum analyzer and a dual channel 25 MHz arbitrary waveform generator, enhancing its measurement capabilities.
