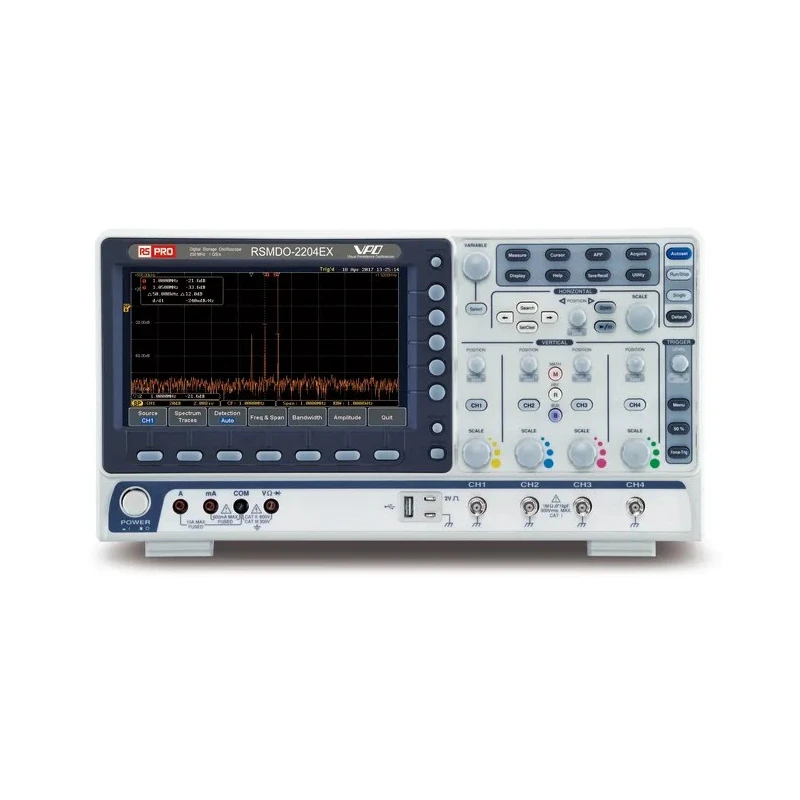

RS PRO 200 MHz Bench Mixed Domain Oscilloscope, 4 Channels RSMDO-180-4804

The RS PRO RSMDO-180-4804 is a 200 MHz bench mixed domain oscilloscope designed for industrial, laboratory, and educational use cases requiring precise signal analysis and waveform measurement. Featuring 4 analog channels, this oscilloscope supports comprehensive testing with real-time sampling rates up to 1GSa/s per channel, enabling detailed inspection of high-frequency signals.

This model incorporates a built-in spectrum analyzer to view signal spectra efficiently, going beyond common FFT-based methods to provide accurate frequency domain analysis. The dual channel 25 MHz arbitrary waveform generator and integrated power supply with dual 5V/1A outputs make it an all-in-one test instrument ideal for embedded system development and IoT module testing.

The device includes an advanced 5,000 count digital multimeter capable of measuring AC/DC voltages, currents, resistance, diode test, and temperature, enhancing its capability as a multifunction instrument suitable for various electronics development and troubleshooting tasks.

Its 8-inch WVGA TFT LCD provides sharp and clear real-time waveform displays, facilitating efficient monitoring and analysis. Connectivity options include CAN, IIC, LIN, RJ45, SPI, UART, and USB interfaces, supporting diverse industrial communication protocols and test configurations.

Compact and ergonomic dimensions measuring 384 mm wide, 208 mm high, and 127.3 mm deep ensure ease of placement in any laboratory or production environment. The oscilloscope refreshes waveforms at up to 120,000 per second, empowering engineers with rapid response and analysis capabilities.

The oscilloscope supports advanced filter functions such as high pass, low pass, and band pass to isolate signal components. Compatible with free frequency response analyzer software for expanded analysis potential. Power supply feature enables powering of development boards including 8051, Arduino, ESP8266, and MSP430 modules.

Its mixed domain capability makes it unique for combined time and frequency domain signal analysis. Applications span industrial electronics testing, manufacturing quality assurance, research laboratories, educational labs, and IoT device development.

This RS PRO Oscilloscope ensures reliable, precise, and multifunctional operation for diverse electronic testing needs. Browse the full range of measuring and testing instruments at EnvMart for complementary tools and accessories.
