TDK 100 nF Multilayer Ceramic Capacitor 630V DC ±10% Tolerance Surface Mount Tape & Reel CGA6L1X7T2J104K160AE
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 630V dc |
| Brand | TDK |
| Height | 1.6mm |
| Length | 3.2mm |
| Model | CGA6L1X7T2J104K160AE |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1210 |
| Dielectric | X7T |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class II |
Key Features
- Capacitance of 100 nF ensures suitability for various electronic applications.
- X7T dielectric material delivers stable performance with a maximum temperature of 125°C.
- Soft termination design enhances mechanical endurance by absorbing thermal and mechanical stress.
- Package size 1210 and Surface Mount Technology ensures compactness and ease of installation.
- Automotive standard AEC-Q200 certified for reliable automotive use.
- Operating temperature range from -55°C to 125°C supports harsh environmental conditions.
- Termination type is surface mount with conductive resin layers for enhanced durability.
- Class II suppression class for general purpose electronic circuits.
Product Description
TDK CGA6L1X7T2J104K160AE is a high-quality multilayer ceramic capacitor designed for surface mounting with a nominal capacitance of 100 nF and voltage rating of 630V DC. It features ±10% tolerance and utilizes X7T dielectric, providing stable electrical characteristics under varying temperature conditions ranging from -55°C to 125°C.
This CGA series capacitor incorporates a soft termination design with conductive resin layers enhancing mechanical endurance by mitigating stress from thermal cycling and mechanical bending. Its tape and reel packaging facilitates efficient automated PCB assembly processes commonly used in industrial and automotive electronic manufacturing.

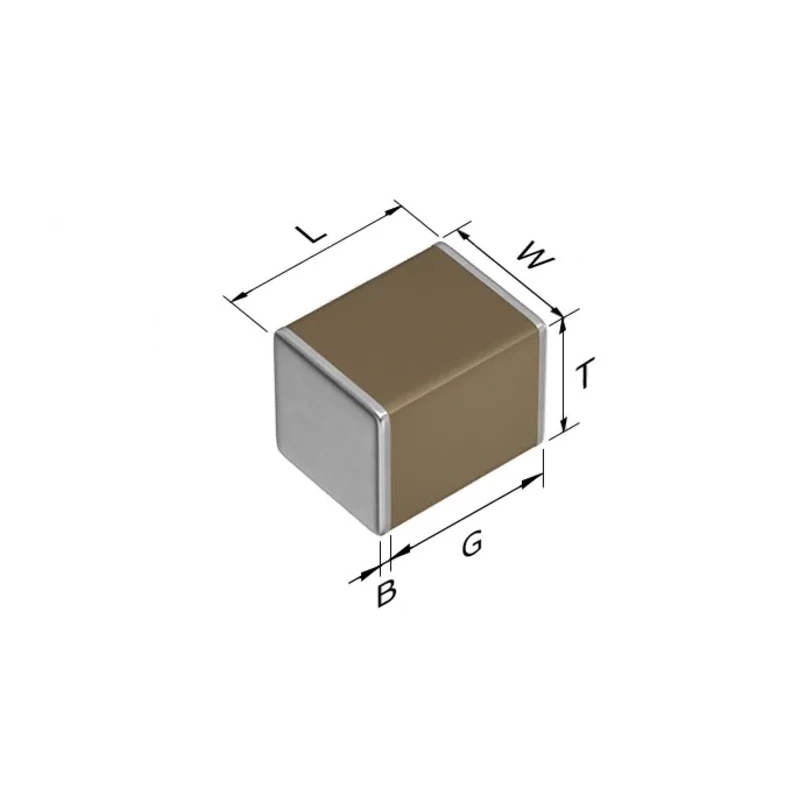

Measuring 3.2 mm in length, 2.5 mm in width, and 1.6 mm in height, this 1210 package size component fits compact printed circuit boards with precise layout requirements. The capacitor is compliant with automotive grade standard AEC-Q200, ensuring reliability for automotive and high-demand electronic applications.
It is ideal for fail-safe design in battery lines, keyless entry systems, and smart key applications where prevention of ceramic body cracks, solder cracks, and thermal shock resilience are critical. The Class II suppression classification allows it to be used in a wide range of consumer electronics, automotive electronics, and industrial equipment.
Capacitance: 100 nF. Voltage rating: 630V DC. Temperature range: -55°C to 125°C. Package size: 1210. Soft termination with conductive resin layers. Automotive standard: AEC-Q200 compliant. Surface mount termination type.
Compact dimensions: 3.2 x 2.5 x 1.6 mm. Dielectric type: X7T. Tape & reel packaging for automated assembly.
This TDK multilayer ceramic capacitor is manufactured in Japan, ensuring high-quality standards and rigorous quality control. It is suitable for industrial electronics, automotive control systems, consumer electronics, and other commercial applications requiring reliable multilayer ceramic capacitors with stable electrical and mechanical properties.
Explore more Multilayer Ceramic Capacitors and other precision passive components on EnvMart for sourcing quality electronics components optimized for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal capacitance of 100 nF, making it suitable for various electronic applications.
The voltage rating of this capacitor is 630V DC, allowing it to handle high-voltage applications.
It operates within a temperature range of -55°C to 125°C, supporting use in harsh environmental conditions.
The dimensions are 3.2 mm in length, 2.5 mm in width, and 1.6 mm in height, fitting compact PCB layouts.
This capacitor utilizes X7T dielectric material, which provides stable electrical characteristics under varying temperatures.
It features a surface mount termination type, designed for ease of installation in automated processes.
Yes, it is compliant with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
It is packaged in tape and reel format, facilitating efficient automated PCB assembly.
The tolerance for this model is ±10%, allowing for some variation in capacitance.
This model is classified as Class II suppression, making it suitable for general purpose electronic circuits.
It is manufactured in Japan, ensuring adherence to high-quality standards and rigorous quality control.
It is ideal for use in battery lines, keyless entry systems, and smart key applications, where thermal shock resilience is critical.
