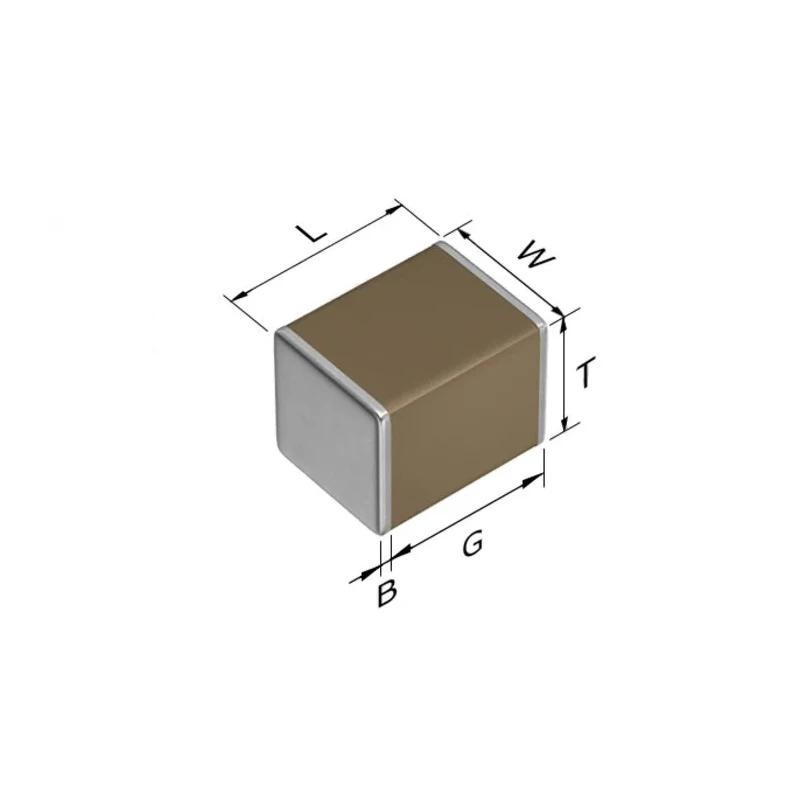

TDK 470 nF 100V dc ±10% X8R Multilayer Ceramic Surface Mount Capacitor CGA6M3X8R2A474K200AB

Free Delivery in India | Lowest Global Shipping Charges

TDK 470 nF 100V dc ±10% X8R Multilayer Ceramic Surface Mount Capacitor CGA6M3X8R2A474K200AB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	100V dc
Brand	TDK
Height	2mm
Length	3.2mm
Model	CGA6M3X8R2A474K200AB
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Package/Case	1210
Dielectric	X8R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

The capacitor has a robust maximum operating temperature of 150°C for high-temperature applications.

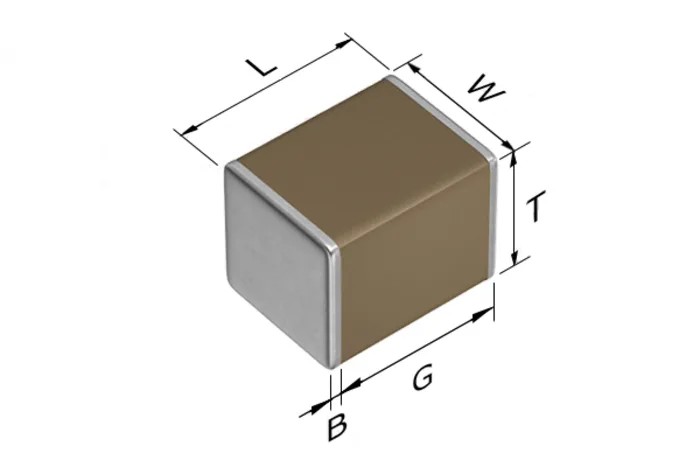

Compact 1210 package size with dimensions 3.2 mm length, 2.5 mm width, and 2 mm height.
Manufactured to automotive standards meeting AEC-Q200 certification.
Features excellent DC bias properties and capacitance stability within ±15% over temperature range.
Suitable for automotive engine rooms, sensor modules, and peripheral circuits in high temperature environments.
Surface mount termination ensures reliable placement on PCBs.
Packaged in tape and reel format for automated assembly processes.
Dielectric type X8R offers Class II suppression characteristics.

Product Description

TDK CGA6M3X8R2A474K200AB is a high-quality Multilayer Ceramic Capacitor (MLCC) designed for demanding electronic applications requiring stable capacitance and high voltage tolerance. This capacitor provides a capacitance of 470 nF at 100V dc, with a tolerance of ±10%. It uses an X8R dielectric material, classified as Class II suppression, suitable for applications exposed to varying temperatures and electrical stresses.

The component is housed in a 1210 surface mount package, measuring 3.2 mm in length, 2.5 mm in width, and 2 mm in height, making it ideal for compact electronic circuits. Its maximum operating temperature is rated at 150°C with a minimum operating temperature down to -55°C, allowing use in extreme automotive and industrial environments.

Certified under the automotive standard AEC-Q200, this series is specifically engineered for high reliability in engine compartments and other harsh conditions. It exhibits excellent DC bias stability with a capacitance variance within ±15% across its temperature range.

Applications of this capacitor include automotive engine rooms, sensor modules, and smoothing or decoupling circuits associated with Silicon Carbide (SiC), Gallium Nitride (GaN), and IGDT semiconductor devices operating at elevated temperatures. The surface mount termination facilitates effective PCB assembly, and the tape and reel packaging simplifies automated manufacturing processes.

The dielectric X8R provides considerable capacitance stability and reliability under high thermal and voltage stress. Compact 1210 size ensures suitability for space-constrained electronic design. Meets automotive grade requirements ensuring longevity and performance in critical systems.

Ideal for smoothing and decoupling in high-frequency circuits at elevated temperatures. Produced in Japan, adhering to strict manufacturing standards for quality assurance.

The TDK CGA6M3X8R2A474K200AB Multilayer Ceramic Capacitor is a trusted component in automotive, industrial, and high-performance electronic manufacturing sectors. EnvMart provides access to this part for users requiring certified, premium capacitors for demanding applications.
