TDK 8 pF Multilayer Ceramic Capacitor, 50V DC, 0.5 pF Tolerance, Surface Mount, C0G Dielectric CGA2B2NP01H080D050BA

TDK’s CGA2B2NP01H080D050BA Multilayer Ceramic Capacitor is a high-precision passive component designed for demanding applications requiring stable capacitance and reliability. This 8 pF capacitor features a voltage rating of 50V DC and a tight tolerance of 0.5 pF, leveraging the Class I C0G dielectric to ensure minimal capacitance deviation over temperature and voltage stresses.

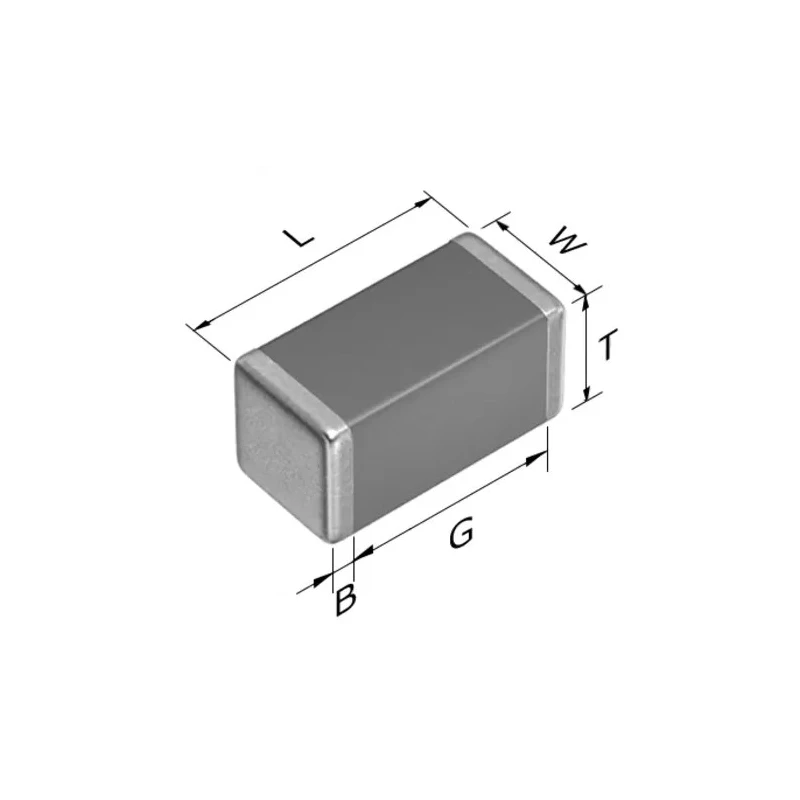

Packaged in a compact 0402 surface mount case with dimensions 1 mm by 0.5 mm by 0.5 mm, it supports implementation in densely packed PCBs, commonly found in automotive and industrial electronics. The component adheres to the automotive AEC-Q200 standard, making it suitable for engine room sensor modules and power conditioning circuits exposed to elevated temperatures up to 150°C and as low as -55°C.

This capacitor’s robust performance includes excellent DC bias characteristics, contributing to stable capacitance even under high voltage applications. The surface mount termination ensures strong mechanical and electrical connections for automated assembly processes.

Common uses include peripheral circuits in SiC, GaN devices, sensor modules, smoothing and decoupling applications where high temperature and reliability are essential. Constructed with C0G dielectric ensuring high stability and low losses.

Compact 0402 package size measuring 1 mm length by 0.5 mm width and height. Maximum temperature rating of 150°C supports high-temperature environments. Automotive grade AEC-Q200 compliant for critical vehicle systems. Excellent DC bias properties ensure performance under voltage stress.

Surface mount termination for reliable soldering and compact layouts. Suitable for sensor modules, smoothing, and decoupling in automotive and industrial electronics. Operating temperature range from -55°C to 150°C. Packaged in tape & reel for efficient manufacturing.
