TDK 22 nF Multilayer Ceramic Capacitor 630V DC ±5 % Tolerance, Surface Mount CGA6N4C0G2J223J230AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 22 nF Multilayer Ceramic Capacitor 630V DC ±5 % Tolerance, Surface Mount CGA6N4C0G2J223J230AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	630V dc
Brand	TDK
Height	2.3mm
Length	3.2mm
Model	CGA6N4C0G2J223J230AA
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Package/Case	1210
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Manufactured with high precision technologies allowing multiple thinner ceramic dielectric layers.
Features excellent DC bias properties and low residual inductance for superior frequency characteristics.
Complies with Automotive Standard AEC-Q200, suitable for automotive environments.
Offers wide temperature operation from -55°C to 125°C for reliable performance.
Packaging comes in Tape & Reel for efficient assembly processes.
C0G dielectric ensures stable capacitance and Class I suppression characteristics.
Ideal for decoupling, smoothing, and snubber circuits in HEV and EV inverters or DC-DC converters.

Product Description

TDK CGA6N4C0G2J223J230AA is a high-quality 22 nF Multilayer Ceramic Capacitor designed for surface mount technology, featuring a 630V DC voltage rating and ±5 % capacitance tolerance. This component is built with precision manufacturing technologies that utilize multiple thin ceramic dielectric layers to achieve high capacitance values while maintaining excellent DC bias characteristics and low residual inductance for enhanced frequency response.

The capacitor uses the C0G dielectric, representing Class I suppression material, which provides stable electrical properties over temperature and time, making it suitable for critical applications requiring stability.

This product conforms to the Automotive Standard AEC-Q200, ensuring it meets stringent reliability and durability criteria essential for automotive electronics. The wide operating temperature range from -55°C to 125°C ensures stable performance under harsh conditions.

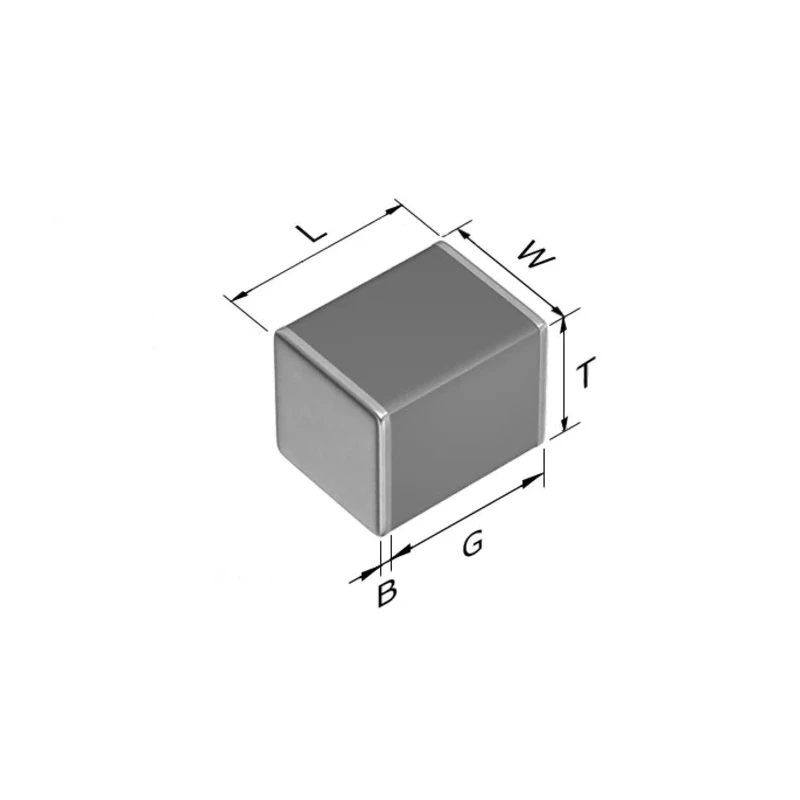

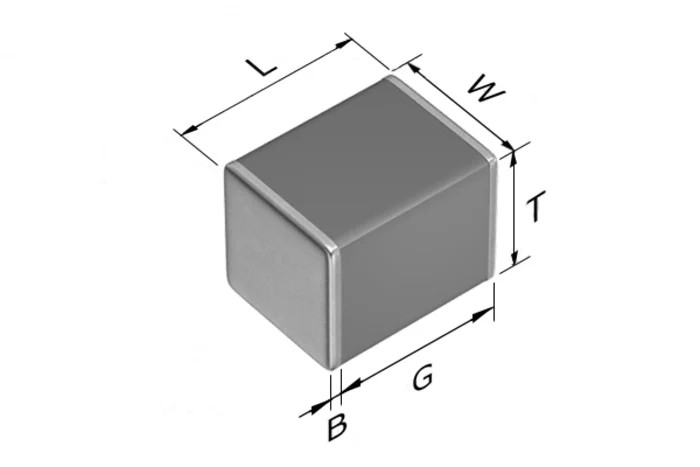

Packaging in Tape & Reel format supports automated assembly processes, enhancing manufacturing efficiency. The capacitor’s compact 1210 size package measures 3.2 mm length, 2.5 mm width, and 2.3 mm height, fitting well into space-constrained circuit designs.

Applications include decoupling, smoothing, and snubber circuits, particularly suitable for inverters and DC-DC converters used in Hybrid Electric Vehicles (HEV) and Electric Vehicles (EV). This capacitor also effectively counters voltage surges and noise in connector circuits, enhancing system reliability.

Manufactured with advanced precision technologies utilizing multiple dielectric layers. Excellent DC Bias stability and low residual inductance for superior frequency performance. Meets automotive quality standards (AEC-Q200) for high reliability.

Wide operating temperature range from -55°C to 125°C. Surface mount termination for modern PCB assembly. C0G dielectric ensures stable capacitance and minimal losses. Packaged in Tape & Reel for automated mounting processes.

Compact 1210 package dimensions suitable for dense PCB layouts.

Ideal for industrial, automotive, electronics manufacturing, and power management applications. Explore more products in the MLCCs - Multilayer Ceramic Capacitors category at EnvMart.
