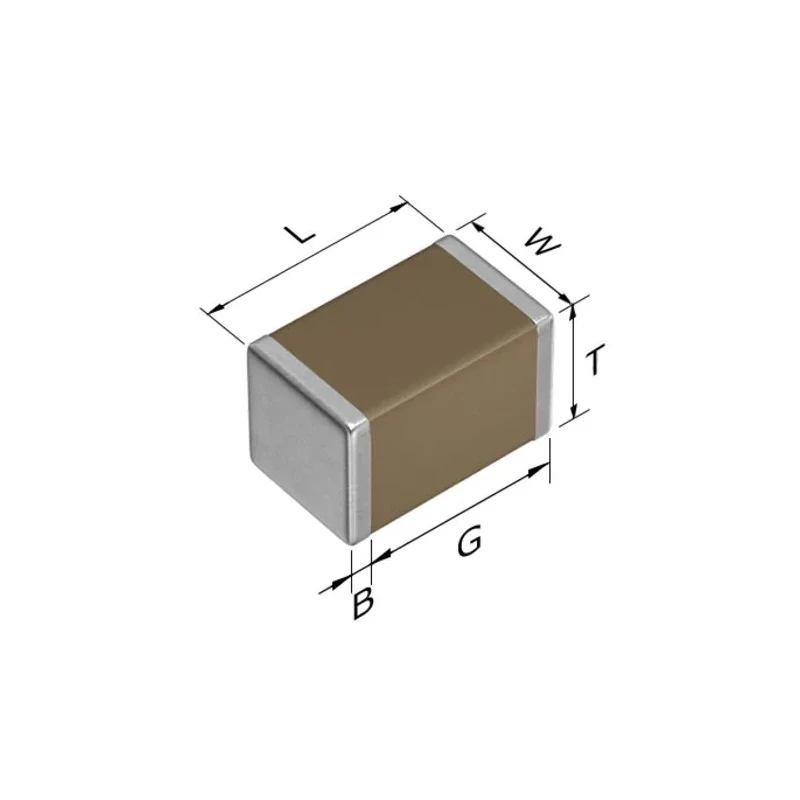

TDK 47nF 100V DC Multilayer Ceramic Capacitor X8R Dielectric Surface Mount CGA4J3X8R2A473K125AD
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V dc |
| Brand | TDK |
| Height | 1.25mm |
| Length | 2mm |
| Model | CGA4J3X8R2A473K125AD |
| Packaging | Tape & Reel |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 150°C |
| Tolerance | ±10 % |
| Capacitance | 47nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0805 |
| Dielectric | X8R |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class II |
Key Features
- Compact 0805 package with dimensions 2mm x 1.25mm x 1.25mm.
- Dielectric type is X8R providing stable capacitance across temperature variations.
- Meets automotive standard AEC-Q200 for reliable operation.
- Operates reliably within temperature range of -55°C to 150°C.
- Features AgPdCu termination optimized for conductive glue mounting to reduce silver migration.
- Designed for transmission control, engine sensor modules, automotive power train ABS, and similar applications.
- Supplied in tape and reel packaging for automated assembly processes.
Product Description
TDK CGA4J3X8R2A473K125AD is a high-quality multilayer ceramic capacitor designed for surface mount technology with a capacitance of 47nF and a voltage rating of 100V dc. The capacitor employs an X8R dielectric, known for its ability to maintain stable capacitance over a broad temperature range from -55°C to 150°C, making it suitable for demanding industrial and automotive environments.
Constructed in a compact 0805 package size measuring 2mm in length by 1.25mm in width and height, this capacitor offers reliable performance in space-constrained applications. It conforms to the automotive industry AEC-Q200 qualification, ensuring robustness and longevity for critical automotive systems such as transmission control units, engine sensor modules, and automotive power train ABS systems.
The termination employs an AgPdCu alloy optimized for conductive glue mounting, significantly reducing the risk of silver migration and enhancing mechanical and thermal endurance when used with conductive glue. This feature makes it particularly suitable for high-reliability applications requiring stable and durable surface mount components.
This capacitor is supplied in tape and reel packaging, facilitating high-volume soldering and assembly processes in modern manufacturing lines. It is ideal for use in industrial electronics, automotive modules, communication devices, and other commercial electronic assemblies.
Compact 0805 surface mount package for automated placement. AgPdCu termination for conductive glue mounting to reduce silver migration. Stable X8R dielectric suited for harsh temperature environments. Certified to automotive standard AEC-Q200 for high-reliability applications.
Wide operating temperature range from -55°C to 150°C. Tape and reel packaging supports assembly automation. Meets Class II suppression for interference reduction. Explore TDK's broad range of Multilayer Ceramic Capacitors for various industrial, automotive, and electronic applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 47nF.
It has a voltage rating of 100V DC.
The dimensions of the 0805 package are 2mm in length, 1.25mm in width, and 1.25mm in height.
It operates reliably within a temperature range of -55°C to 150°C.
This capacitor employs an X8R dielectric, which provides stable capacitance across temperature variations.
Yes, it meets the automotive standard AEC-Q200, making it suitable for high-reliability automotive applications.
It features an AgPdCu termination optimized for conductive glue mounting, which helps reduce silver migration.
It is supplied in tape and reel packaging, which supports automated assembly processes.
It is designed for use in transmission control, engine sensor modules, automotive power train ABS, and similar applications.
The tolerance for this model is ±10%.
It meets Class II suppression for interference reduction.
The country of origin for this capacitor is Japan.
