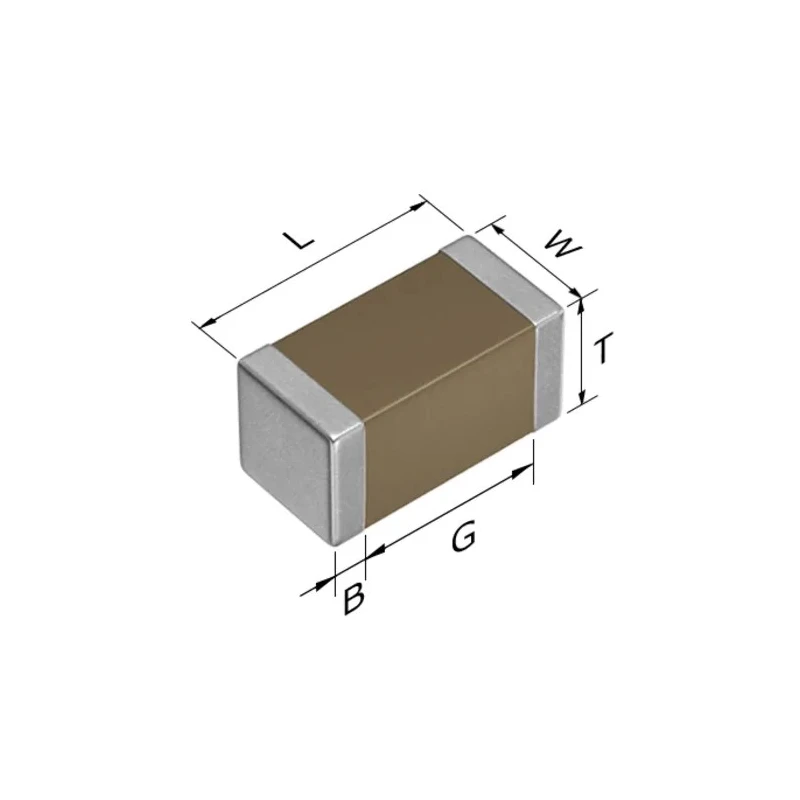

TDK 22 nF 50V DC Multilayer Ceramic Capacitor, ±10 % Tolerance, Surface Mount CGA3E2X8R1H223K080AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 22 nF 50V DC Multilayer Ceramic Capacitor, ±10 % Tolerance, Surface Mount CGA3E2X8R1H223K080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2X8R1H223K080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±10 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X8R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Constructed with X8R dielectric, suitable for high-temperature environments up to 150°C.
Complies with automotive standard AEC-Q200 ensuring reliability in automotive applications.
Compact 0603 package size with dimensions 1.6mm length, 0.8mm width and height.
Features excellent DC bias properties for stable performance.
Ideal for smoothing, decoupling, and sensor module circuits at high temperatures.
Termination type is surface mount for easy PCB assembly.
Operates reliably from -55°C to 150°C.
Suppression Class II capacitor suitable for automotive engine room and peripheral circuits.

Product Description

TDK CGA3E2X8R1H223K080AA is a high-quality multilayer ceramic capacitor designed for advanced electronic applications requiring stable capacitance and high reliability. Featuring a capacitance of 22 nF and a rated voltage of 50V DC, this capacitor utilizes an X8R dielectric material allowing reliable operation in extreme temperature environments ranging from -55°C to 150°C. The ±10% capacitance tolerance guarantees consistent performance in precision circuits.

Manufactured in a compact 0603 surface mount package with precise dimensions of 1.6mm length, 0.8mm width, and 0.8mm height, this capacitor supports automated PCB assembly. The termination type is surface mount ensuring robust electrical and mechanical connections. It meets the rigorous automotive AEC-Q200 standard, making it suitable for harsh automotive environments such as engine rooms and peripheral circuits.

The capacitor exhibits excellent DC bias characteristics, which make it ideal for smoothing, decoupling, and sensor module applications, especially when devices operate under high temperature stress. Its Class II suppression rating further supports noise reduction and EMI suppression in sensitive electronic systems.

Applications span automotive systems, power electronics, and industrial modules where durability and precision are critical. TDK’s CGA series capacitors provide reliable solutions for electrical performance and environmental stability.

Constructed with X8R dielectric, suitable for high-temperature environments up to 150°C. Complies with automotive standard AEC-Q200 ensuring reliability in automotive applications. Compact 0603 package size with dimensions 1.6mm length, 0.8mm width and height.

Features excellent DC bias properties for stable performance. Ideal for smoothing, decoupling, and sensor module circuits at high temperatures. Termination type is surface mount for easy PCB assembly. Operates reliably from -55°C to 150°C.

Suppression Class II capacitor suitable for automotive engine room and peripheral circuits. Explore the Electronics Components category at EnvMart for a wide range of capacitors and Multilayer Ceramic Capacitors to meet your industrial and automotive needs.
