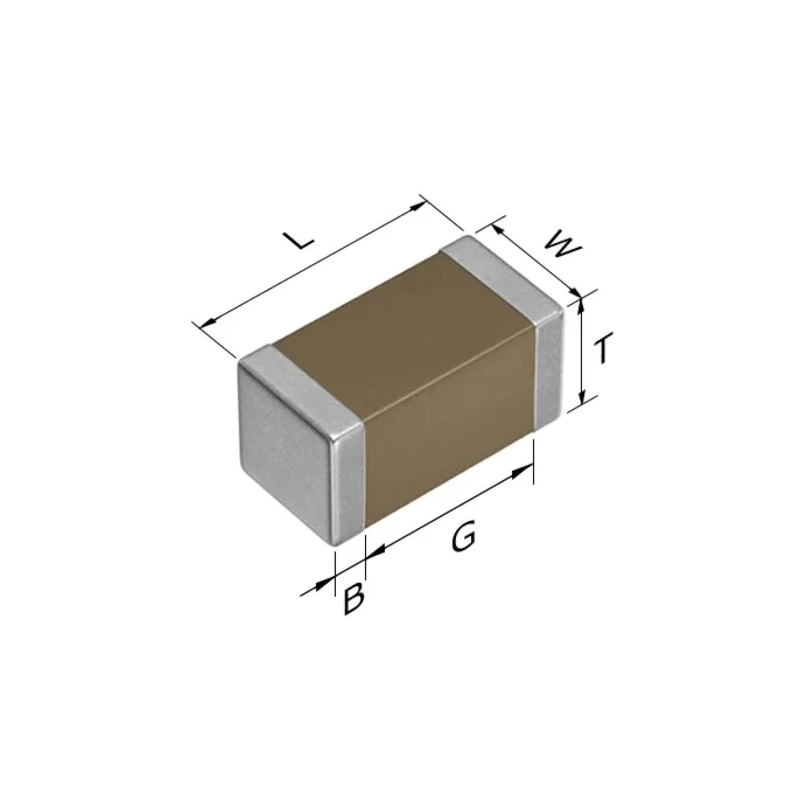

TDK 2.2 nF Multilayer Ceramic Capacitor 50V DC ±10% Surface Mount CGA3E2X8R1H222K080AD

Free Delivery in India | Lowest Global Shipping Charges

TDK 2.2 nF Multilayer Ceramic Capacitor 50V DC ±10% Surface Mount CGA3E2X8R1H222K080AD



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2X8R1H222K080AD
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±10 %
Capacitance	2.2nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X8R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

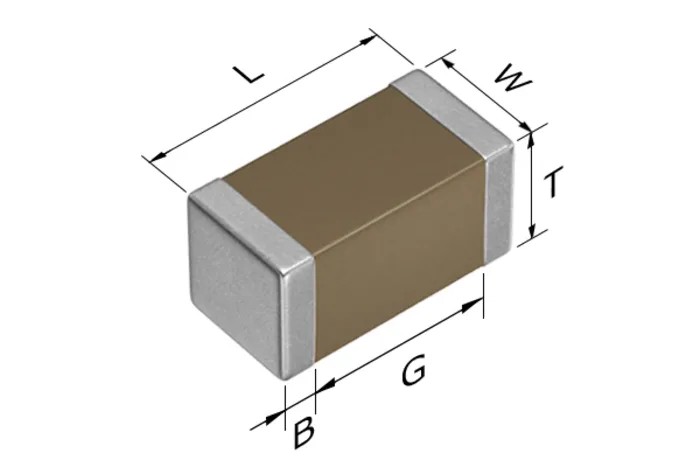

Compact 0603 package size with dimensions 1.6 mm length, 0.8 mm width, and 0.8 mm height.
Dielectric type X8R ensures reliable performance across temperature range.
Suitable for automotive applications meeting AEC-Q200 standards.
Capable of operating between -55°C to 150°C temperature range.
AgPdCu termination reduces risk of silver migration and improves mechanical and thermal strength.
Designed for conductive glue mounting to enhance durability in high-stress environments.
Applicable in transmission control, engine sensor modules, ABS power trains, and similar automotive systems.
Supplied in tape and reel packaging for efficient automated assembly.

Product Description

TDK CGA3E2X8R1H222K080AD is a high-performance 2.2 nF multilayer ceramic capacitor designed for surface mount applications requiring stable capacitance and voltage handling up to 50V DC with ±10% tolerance. This compact component comes in a 0603 package with precise dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height, making it suitable for dense PCB layouts.

Constructed with a Class II X8R dielectric, the capacitor supports a wide operating temperature range from -55°C to 150°C, catering to demanding automotive environments. Compliance with the AEC-Q200 automotive standard ensures robustness and reliability under harsh conditions.

The AgPdCu termination enhances mounting with conductive glue, reducing silver migration risks and improving mechanical and thermal strength, crucial for powertrain modules, transmission control, and engine sensors.

Its tape and reel packaging facilitates high-volume manufacturing processes with automated pick-and-place equipment. This capacitor is ideal for industrial, automotive, and commercial electronics requiring precision and durability.

Compact 0603 package with precise dimensions. X8R dielectric for stable capacitance across temperature. AgPdCu termination reduces silver migration risk. Compliance with AEC-Q200 automotive standards. Wide temperature operation from -55°C to 150°C.

Designed for conductive glue mounting applications. Suitable for engine sensor and ABS power train applications. Tape and reel packaging for automated assembly. Made in Japan for superior quality. Explore the extensive range of Multilayer Ceramic Capacitors and electronic components available at EnvMart to meet your industrial and automotive electronics needs.
