| Country of Origin | China |
|---|---|
| Voltage | 100V dc |
| Brand | TDK |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | CGA3E2C0G2A680J080AA |
| Packaging | Tape & Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 68pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class I |
TDK CGA3E2C0G2A680J080AA is a high-quality 68 pF Multilayer Ceramic Capacitor tailored for surface mount applications. Rated for 100V DC operation with a tolerance of ±5 %, this capacitor uses a stable C0G dielectric material that offers excellent electrical characteristics and minimal variation over temperature and voltage.

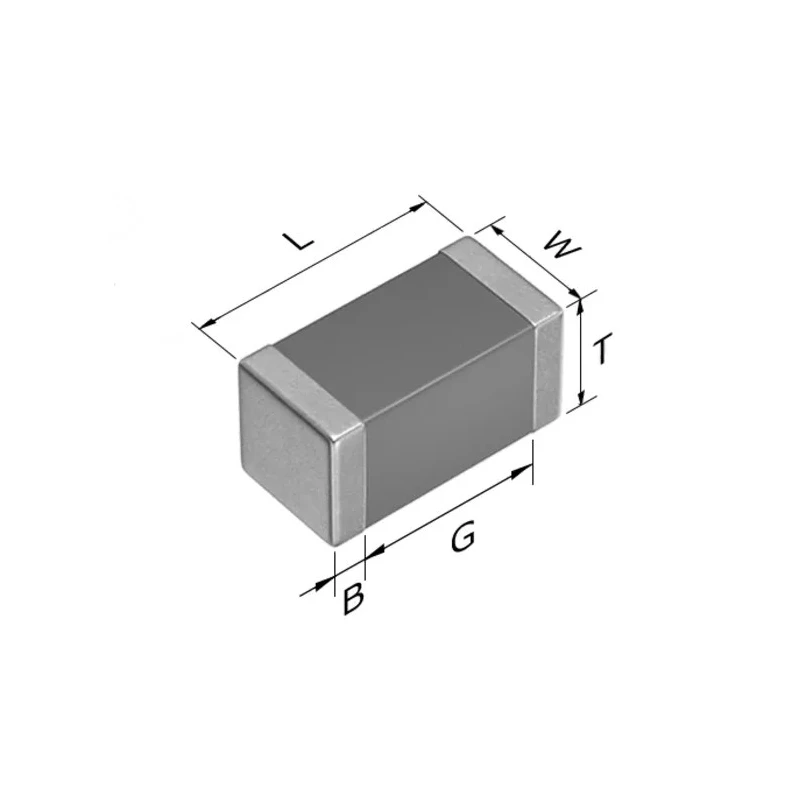

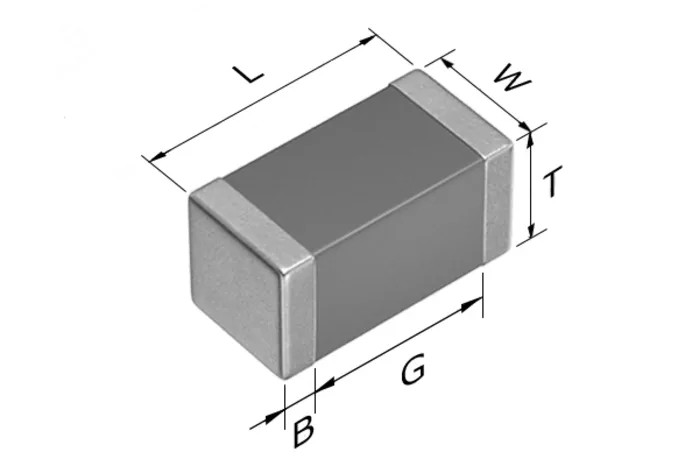

With a compact 0603 package size measuring 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, it is ideal for applications requiring small footprints such as inverters, DC-DC converters, and automotive electronics. The capacitor operates reliably within a temperature range from -55°C up to 125°C and complies with automotive standard AEC-Q200, ensuring robustness in harsh environments.
Its low residual inductance and superior frequency response make it well suited for decoupling, smoothing, and snubber circuits, as well as noise suppression in connectors. The tape and reel packaging facilitates efficient automated pick-and-place assembly processes in manufacturing.
This capacitor features a C0G dielectric for excellent stability and low losses. It has a compact 0603 package size (1.6 x 0.8 x 0.8 mm) suitable for dense PCB layouts. The component supports a wide operating temperature range from -55°C to 125°C.
It meets the automotive standard AEC-Q200, ensuring high reliability in automotive electronics. The capacitor is suitable for decoupling, smoothing, and snubber circuits in HEVs or EVs. Low residual inductance guarantees superior frequency characteristics for demanding applications.
The capacitor is packaged in tape and reel format for automated assembly processes. Country of origin is China.
This multilayer ceramic capacitor is ideal for industrial, automotive, and electronics manufacturing sectors. Its precision and reliability support applications in electric vehicle power electronics, inverter modules, and noise suppression solutions.
Explore more Multilayer Ceramic Capacitors and electronic components on EnvMart to find compatible and complementary products for your designs and manufacturing needs.
