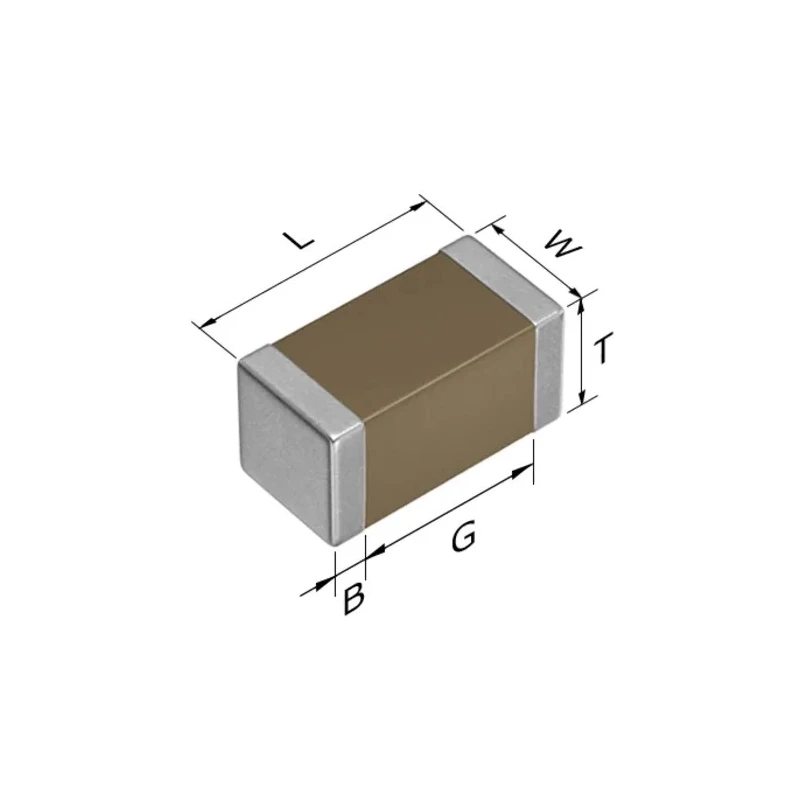

TDK 10 nF 50V DC ±10% Multilayer Ceramic Capacitor Surface Mount 0603 CGA3E2X8R1H103K080AD

Free Delivery in India | Lowest Global Shipping Charges

TDK 10 nF 50V DC ±10% Multilayer Ceramic Capacitor Surface Mount 0603 CGA3E2X8R1H103K080AD



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2X8R1H103K080AD
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±10 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X8R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Features AgPdCu termination for mounting with conductive glue.
Reduces risk of silver migration enhancing reliability.
Improved mechanical and thermal strength with conductive glue mounting.
Dielectric type X8R suitable for automotive applications.
Compliance with automotive AEC-Q200 standard.
Temperature range from -55°C to 150°C for demanding environments.
Compact surface mount package 0603 with dimensions 1.6mm x 0.8mm x 0.8mm.
Designed for transmission control, engine sensors, and automotive power train ABS modules.

Product Description

TDK CGA3E2X8R1H103K080AD is a 10 nF Multilayer Ceramic Capacitor designed for surface mount technology in compact 0603 package. It features a voltage rating of 50V DC with a ±10% tolerance, making it suitable for precision applications in automotive and industrial electronics.

The capacitor employs AgPdCu termination optimized for conductive glue mounting, reducing the risk of silver migration and improving mechanical and thermal stability. Its X8R dielectric material ensures high reliability and stable operation across a wide temperature range from -55°C to 150°C, adhering to automotive AEC-Q200 standards.

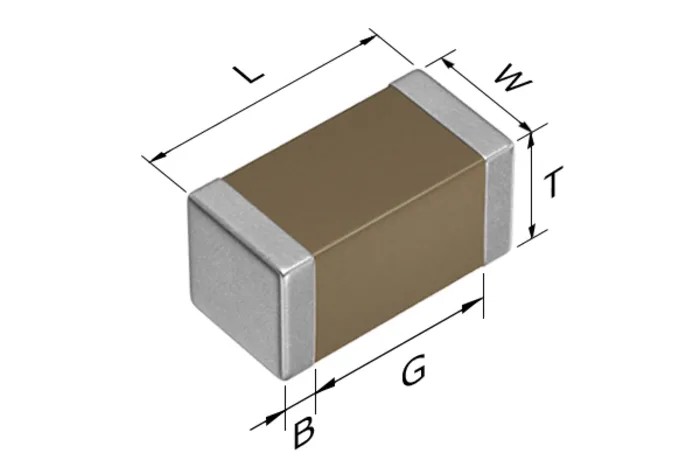

Physical dimensions of the capacitor are 1.6 mm length, 0.8 mm width, and 0.8 mm height, allowing its use in space-restricted PCB layouts. It is particularly suitable for transmission control systems, engine sensor modules, and automotive power train ABS applications that require dependable and compact multilayer ceramic capacitors.

The surface mount termination facilitates automated assembly, while tape and reel packaging ensures efficient handling in high-volume manufacturing processes. Features AgPdCu termination for mounting with conductive glue.

Reduces risk of silver migration enhancing reliability. Improved mechanical and thermal strength with conductive glue mounting. Dielectric type X8R suitable for automotive applications. Compliance with automotive AEC-Q200 standard.

Temperature range from -55°C to 150°C for demanding environments. Compact surface mount package 0603 with dimensions 1.6mm x 0.8mm x 0.8mm. Designed for transmission control, engine sensors, and automotive power train ABS modules.

This product is manufactured in Japan, guaranteeing high quality and compliance with international automotive standards. It is intended for use in industrial, automotive, and electronics manufacturing sectors where robust and reliable MLCCs are required.
