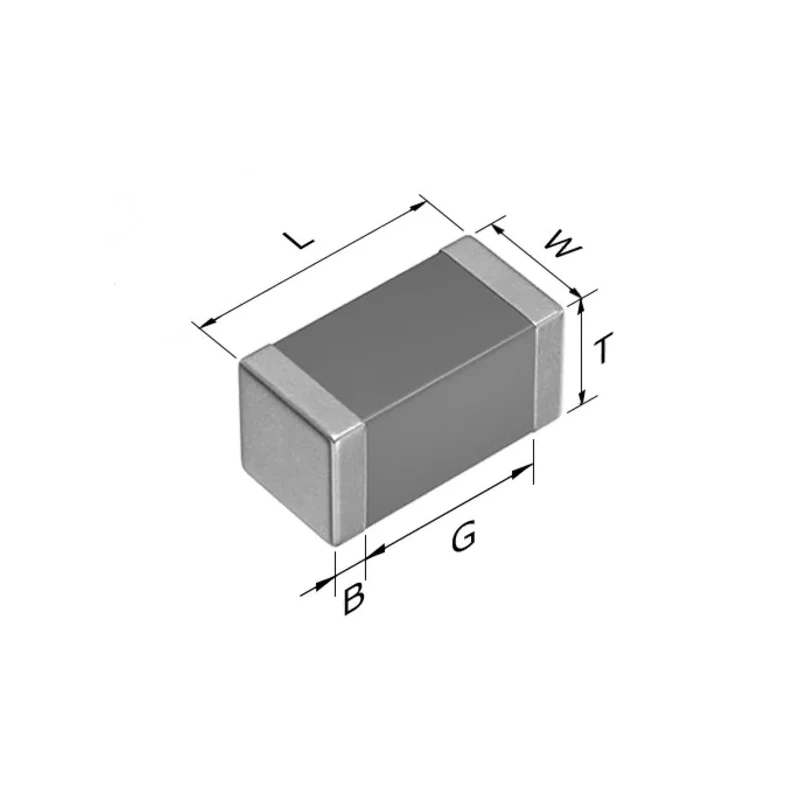

TDK 1.2 nF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, Surface Mount, 0603 Case CGA3E2NP01H122J080AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 1.2 nF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, Surface Mount, 0603 Case CGA3E2NP01H122J080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	China
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2NP01H122J080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±5 %
Capacitance	1.2nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

This capacitor features a compact 0603 case size suitable for high-density circuit boards.
Dielectric material is C0G, providing excellent stability and low losses.
Automotive-grade compliance with AEC-Q200 standard ensures durability in harsh environments.
Operating temperature range from -55°C to 150°C supports high temperature electronic applications.
Surface mount termination type allows easy automated PCB assembly.
Suitable for smoothing, decoupling, and sensor module applications in automotive and industrial circuits.
Class I suppression provides stable capacitance within ±15 % over temperature range.
Packaged in tape and reel format for high volume manufacturing.

Product Description

TDK CGA3E2NP01H122J080AA is a precision 1.2 nF multilayer ceramic capacitor designed for surface mount technology with a 50V DC voltage rating and ±5 % capacitance tolerance. This component utilizes a C0G dielectric, offering excellent DC bias characteristics and minimal capacitance change, making it highly stable for critical electronic applications.

Compliant with the automotive industry standard AEC-Q200, it is engineered to perform reliably in demanding environments such as engine compartments and other high-temperature locations with an operating range from -55°C to 150°C.

The 0603 case size (1.6mm length × 0.8mm width × 0.8mm height) ensures a compact footprint suitable for modern compact electronic assemblies. Its surface mount termination allows for seamless integration in automated PCB assembly lines, packaged efficiently in tape and reel form for high-volume production.

Typical applications include automotive sensors, smoothing and decoupling circuits in power electronics, and peripheral circuits employing silicon carbide (SiC), gallium nitride (GaN), or insulated-gate bipolar transistors (IGBTs) requiring stable capacitance at elevated temperatures.

This capacitor provides outstanding DC bias performance and temperature stability. Manufactured in China with high-quality standards. Class I suppression characteristics support electronic noise reduction in sensitive circuits.

Adapts perfectly to automotive and industrial IoT sensor modules. Ideal for use in harsh environments due to robust construction and compliance with automotive norms. Explore additional TDK Multilayer Ceramic Capacitors on EnvMart for your electronics manufacturing and design needs.
