TDK 47 pF Multilayer Ceramic Capacitor, 100V dc, ±5 % Tolerance, Surface Mount 0603 Package CGA3E2C0G2A470J080AA

Free Delivery in India | Lowest Global Shipping Charges

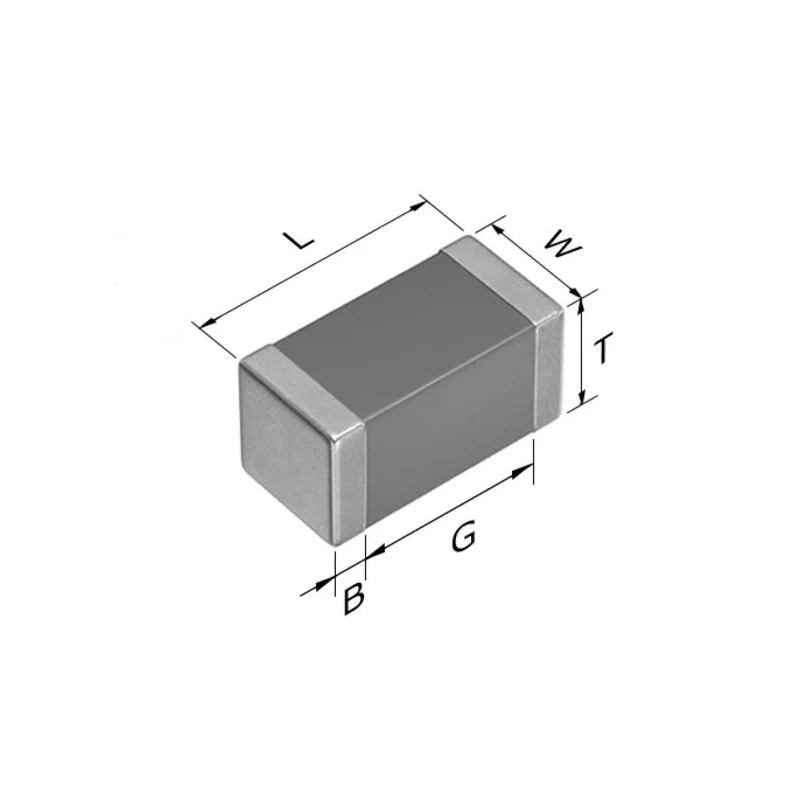

TDK 47 pF Multilayer Ceramic Capacitor, 100V dc, ±5 % Tolerance, Surface Mount 0603 Package CGA3E2C0G2A470J080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	100V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2C0G2A470J080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	47pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Capacitance value of 47 pF suitable for precision electronic circuits.
Compact 0603 package size facilitates surface mounting on PCB.
C0G dielectric provides excellent stability and low loss characteristics.
Tolerance of ±5 % ensures consistent performance in varied applications.
Automotive grade compliance with AEC-Q200 standard guarantees durability.
Operating temperature range from -55°C to 125°C accommodates harsh environments.
Product designed for decoupling, smoothing, and snubber circuits in HEVs and EVs.
Low residual inductance ensures superior frequency response for high-frequency applications.

Product Description

TDK CGA3E2C0G2A470J080AA is a 47 pF Multilayer Ceramic Capacitor designed for surface mount technology with a voltage rating of 100V dc and a capacitance tolerance of ±5 %. This 0603 package size capacitor uses a C0G dielectric known for its exceptional stability and low losses, making it ideal for precision electronic and automotive applications.

This capacitor's AEC-Q200 automotive qualification certifies its reliability and robustness, enabling use in demanding environments such as hybrid electric vehicles (HEVs) and electric vehicles (EVs). It supports a wide operating temperature range from -55°C up to 125°C, ensuring stable operation under thermal stress.

High capacitance with thin ceramic dielectric layers is achieved through precision manufacturing technologies, allowing for compact size without compromising electrical characteristics. The capacitor also features low residual inductance, delivering superior frequency characteristics essential for high-frequency decoupling, smoothing, and snubber circuit applications in inverters and DC-DC converters.

The product is typically supplied in tape & reel packaging, facilitating automated PCB assembly in industrial and manufacturing environments. Its surface mount termination type supports efficient soldering and mechanical stability on circuit boards.

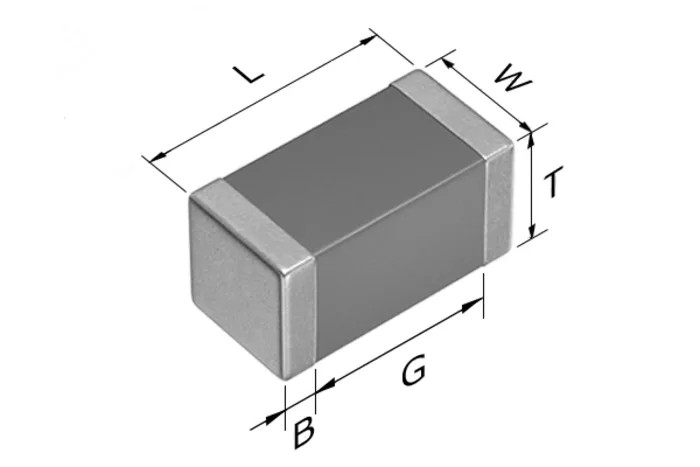

Capacitance of 47 pF for precise circuit functionality. Voltage rating of 100V dc suitable for electronic power applications. 0603 package dimension of 1.6mm length, 0.8mm width, and 0.8mm height. C0G dielectric material offers excellent electrical stability.

±5 % tolerance to meet stringent performance criteria. Automotive qualified to AEC-Q200 standards. Operating temperature from -55°C to 125°C for versatile environments. Surface mount termination for robust circuit integration.

Low residual inductance enhances frequency response. Ideal for smoothing, decoupling, and snubber circuits in electronic drives.

This TDK multilayer ceramic capacitor suits industrial electronics, automotive electronics, manufacturing assembly lines, and electric vehicle power electronics. It is an essential passive component offering durability and precision in a small form factor. Explore more high-quality Multilayer Ceramic Capacitors at EnvMart to fulfill your electronic circuit design requirements.
