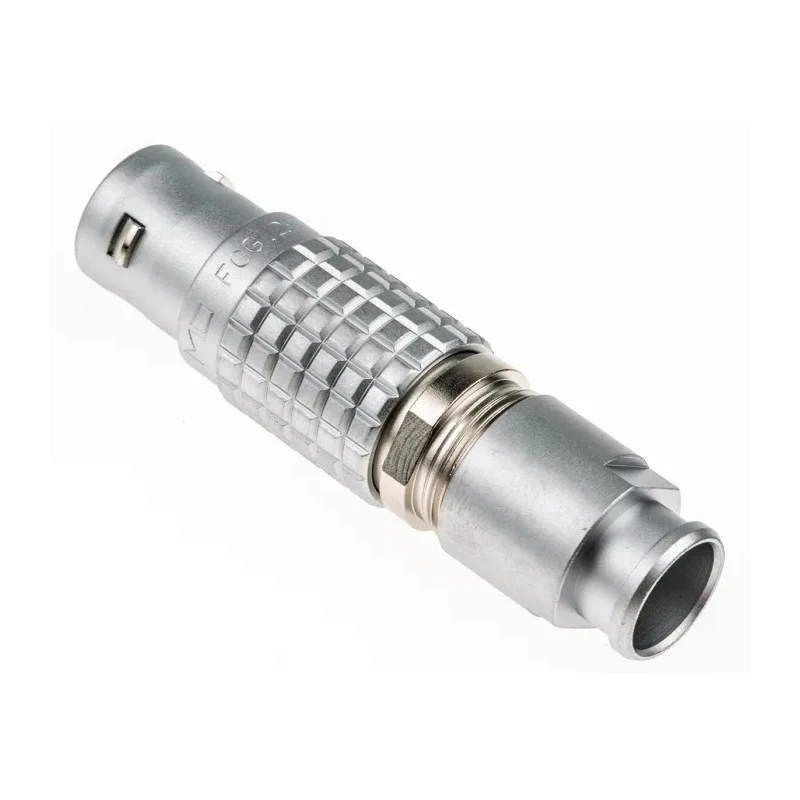

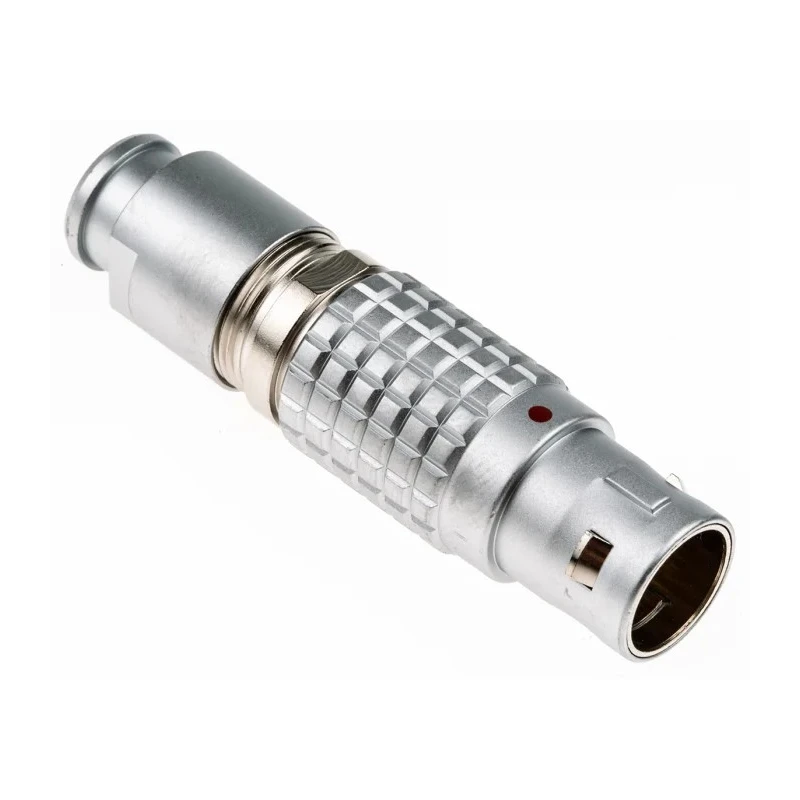

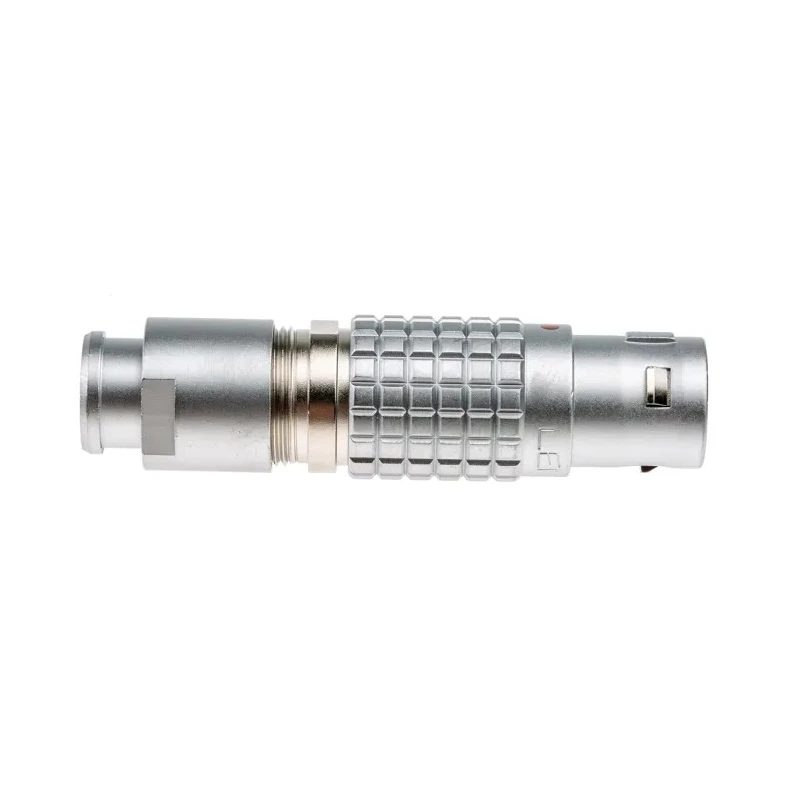

LEMO Circular Connector 14 Contacts Cable 15 mm Plug Male IP50 2B Series FGG.2B.314.CLAD92Z
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1910V |
| Brand | LEMO |
| Orientation | Straight |
| Current | 6.5A |
| Model | FGG.2B.314.CLAD92Z |
| IP Rating | IP50 |
| Mount Type | Cable |
| Housing Material | Brass |
| Contact Material | Brass |
| Series | 2B |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 14 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shell Size | 2 |
| Mating Type | Push Pull |
| Connector Size | 15 mm |
| Plug/Socket | Plug |
Key Features
- Supports a current rating up to 6.5A providing reliable electrical conduction.
- Constructed with brass housing and gold over nickel plated brass contacts for durability and corrosion resistance.
- Push-pull self-latching system ensures secure, easy mating with high vibration and shock resistance.
- Operates reliably between -55°C and 250°C, suitable for harsh environmental conditions.
- Includes cable collet and nut for bend relief and protection of cables between 8.3 mm and 9.2 mm diameter.
- Straight orientation plug with solder termination type for robust electrical connections.
- Designed for industrial and harsh outdoor applications with a shell size of 2 and 1910V voltage rating.
- Backed by IP50 ingress protection rating to guard against dust and limited ingress of solids.
Product Description
LEMO FGG.2B.314.CLAD92Z is a 14-contact circular connector designed for cable mounting applications, featuring a plug type connector with male contacts in a 15 mm size suitable for industrial use.
This circular connector supports a current rating of 6.5A and a nominal voltage rating of 1910V, suitable for demanding electrical connections in harsh environments. Its construction uses chrome-plated brass with a nickel-plated brass latch inner sleeve and collet nut for durability and stability.
The connector utilizes a highly precise push-pull self-latching mechanism that provides easy mating and unmating while ensuring secure locking. Cable collet and nut provide bend relief and cable protection for cables between 8.3 mm and 9.2 mm diameter. The straight body orientation facilitates cable management with an integrated positioning guide.
The contact material is brass with gold over nickel plating, offering excellent conductivity and corrosion resistance. The connector is designed to withstand high mechanical stress, shock, and vibrations, operating reliably over an extensive temperature range from -55°C to 250°C. Its housing material is brass, and the termination type is solder, ensuring robust and reliable cable connections.
Rated to IP50, this connector provides limited ingress protection against dust and solids, making it suitable for tough industrial outdoor applications. The shell size is 2, fitting specific industrial standards, and it features G-keying for correct alignment and mating.
Common applications include medical devices, research and laboratory instrumentation, test and measurement equipment where secure and precise connector performance is required. Supports 14 electrical contacts with precise push-pull latching and self-aligning features.
Use in industrial environments requiring durable, shock-resistant connections. Suitable for instruments requiring high operating temperature tolerance. Provides EMI shielding with 360° coverage for signal integrity. Comes with multiple collets to accommodate cable sizes up to 9 mm diameter.
Explore EnvMart’s selection of industrial-grade circular connectors and other high-quality electronic components from LEMO for your demanding projects and applications.
Explore more products in our Industrial Circular Connectors category.
