United Automation Linear Voltage Regulator 230V 6A 3-Pin CSR604A

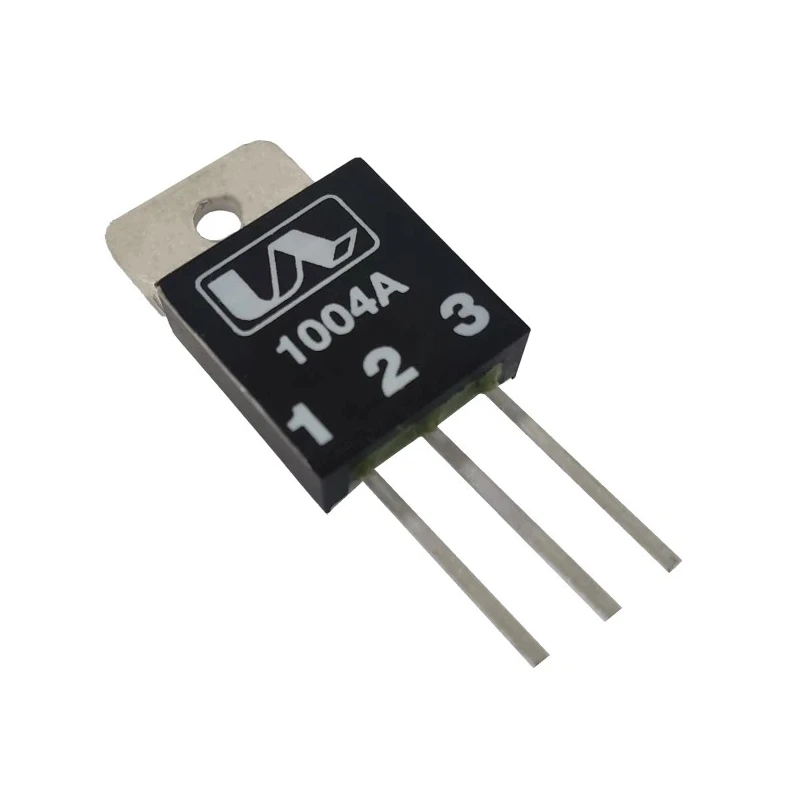

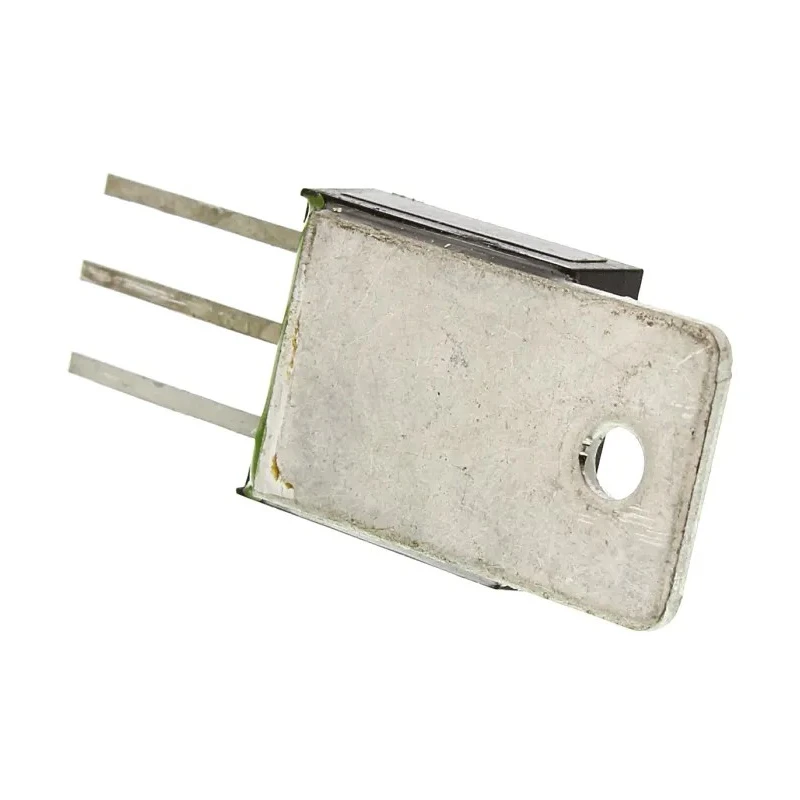

United Automation CSR604A is a linear voltage regulator designed to control single-phase mains-driven loads with a maximum output current of 6 amperes at 230 volts. The regulator comes in a transistor-style housing featuring an isolated heat sink tab, facilitating effective thermal dissipation. It is mounted through-hole on printed circuit boards and equipped with a 3-pin adjustable output configuration.

This regulator supports power adjustment from 0% to 98% by using an external 220 kΩ or 250 kΩ linear potentiometer (not included). It is well-suited for controlling resistive heating elements such as quartz lamps, ovens, moulders, and dryers, as well as inductive loads including transformers, fans, and motors.

Key physical dimensions are 17.5 mm in length, 29.3 mm in height, and 7.6 mm in width. The unit operates reliably within an ambient temperature range of 0°C to 70°C and is designed without automotive certifications. Manufactured in the United Kingdom, this product ensures dependable performance in industrial and commercial electronic control applications.

Linear regulator type suitable for stable power control. Adjustable output voltage with 3-pin configuration. Mounts via through-hole method for easy PCB installation. Compact dimensions optimized for space-saving equipment.

Wide operational temperature range for diverse environments. Ideal for resistive and some inductive load control. Requires external potentiometer for precise power adjustment. Isolated heat sink tab protects against thermal damage.

Manufactured under quality standards in the United Kingdom.

This United Automation CSR604A linear voltage regulator caters to applications in industrial automation, electrical control systems, and power management circuits. Its robust design ensures consistent voltage regulation for a variety of electronic equipment. Explore related Voltage Regulators and power management components for complete system integration from EnvMart's Electronics & Electricals selection.
