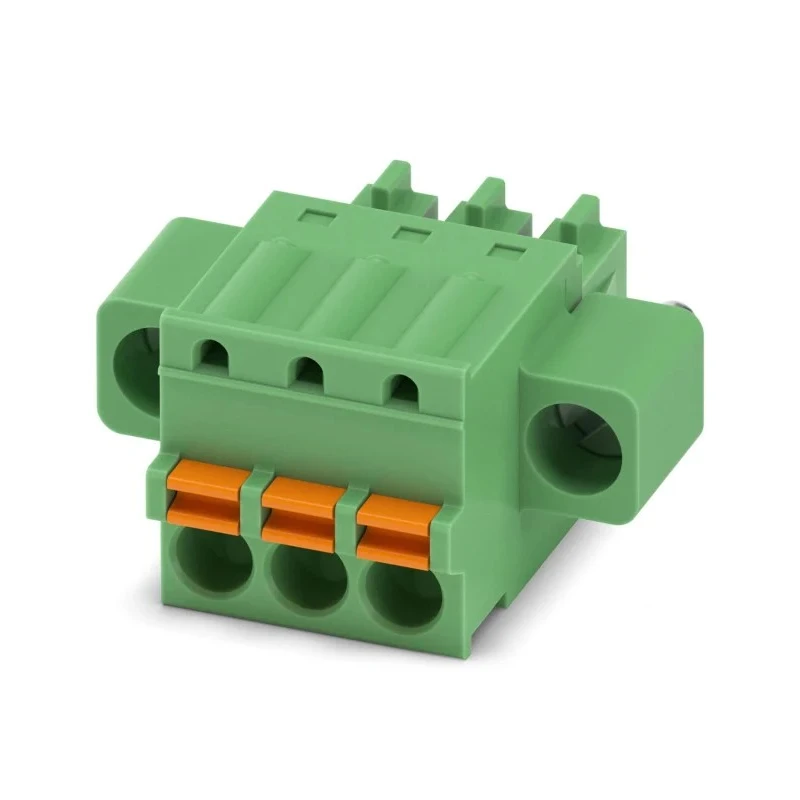

Phoenix Contact FK-MCP 1.5/3-STF-3.81 Series Pluggable Terminal Block, 3-Contact, 3.81 mm Pitch, 320 V, 8 A Current 1851245
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 8A |
| Length | 20.8mm |
| Model | 1851245 |
| Depth | 12.4mm |
| Width | 21.82mm |
| Housing Material | Polyamide |
| Series | FK-MCP 1.5/3-STF-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring Cage |
| PCB connector, nominal current | 8 A, rated voltage (III/2): 160 V, number of positions: 3, pitch: 3.81 mm, connection method: Push-in spring connection, colour: green, contact surface: Tin |
Key Features
- This terminal block supports a nominal current of 8 A and rated voltage of 320 V.
- Features a green polyamide housing for durability and insulation.
- Utilizes push-in spring cage connection method ensuring reliable wire retention.
- Accepts wire sizes from 0.14 mm² (26 AWG) up to 1.5 mm² (16 AWG).
- Compact design with dimensions 20.8 mm length, 21.82 mm width, and 12.4 mm depth.
- The connector is female gender with straight orientation suitable for PCB mounting.
- RoHS compliant and manufactured in Germany ensuring quality standards.
Product Description
Phoenix Contact 1851245 Pluggable Terminal Block is a high-quality PCB connector designed for electrical and electronic applications, featuring a 3-contact configuration with a 3.81 mm pitch. It supports a nominal current of 8 A and a rated voltage of 320 V, suitable for various industrial and commercial uses.
The connector comes with a robust green polyamide housing providing excellent mechanical stability and insulation. It uses a push-in spring cage connection method enabling quick and secure wire installation, suitable for wire sizes ranging from 0.14 mm² to 1.5 mm² or 26 AWG to 16 AWG.
Its compact dimensions of 20.8 mm length, 21.82 mm width, and 12.4 mm depth make it suitable for space-constrained designs. The product has a female connector gender with a straight orientation designed explicitly for PCB mounting applications.
Being RoHS compliant and manufactured in Germany, this terminal block meets environmental and quality standards required for modern electronics manufacturing. This device is ideal for use in industrial equipment, automation systems, control panels, and instrumentation.
This terminal block supports a nominal current of 8 A and rated voltage of 320 V. Features a green polyamide housing for durability and insulation. Utilizes push-in spring cage connection method ensuring reliable wire retention.
Accepts wire sizes from 0.14 mm² (26 AWG) up to 1.5 mm² (16 AWG). Compact design with dimensions 20.8 mm length, 21.82 mm width, and 12.4 mm depth. The connector is female gender with straight orientation suitable for PCB mounting.
RoHS compliant and manufactured in Germany ensuring quality standards.
This pluggable terminal block is a preferred choice in the electronics and electrical industries for reliable PCB connections and ease of installation. Browse more products in the Pluggable Terminal Blocks category on EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current of 8 A.
The rated voltage for this series is 320 V.
It accepts wire sizes from 0.14 mm² (26 AWG) up to 1.5 mm² (16 AWG).
The pitch of the contacts is 3.81 mm.
It utilizes a push-in spring cage connection method for reliable wire retention.
The dimensions are 20.8 mm in length, 21.82 mm in width, and 12.4 mm in depth.
The connector is female gender with a straight orientation.
Yes, this terminal block is RoHS compliant.
It is manufactured in Germany.
The housing is made from green polyamide.
This terminal block features 3 contacts.
It is suitable for various industrial and commercial applications, including automation systems and control panels.
