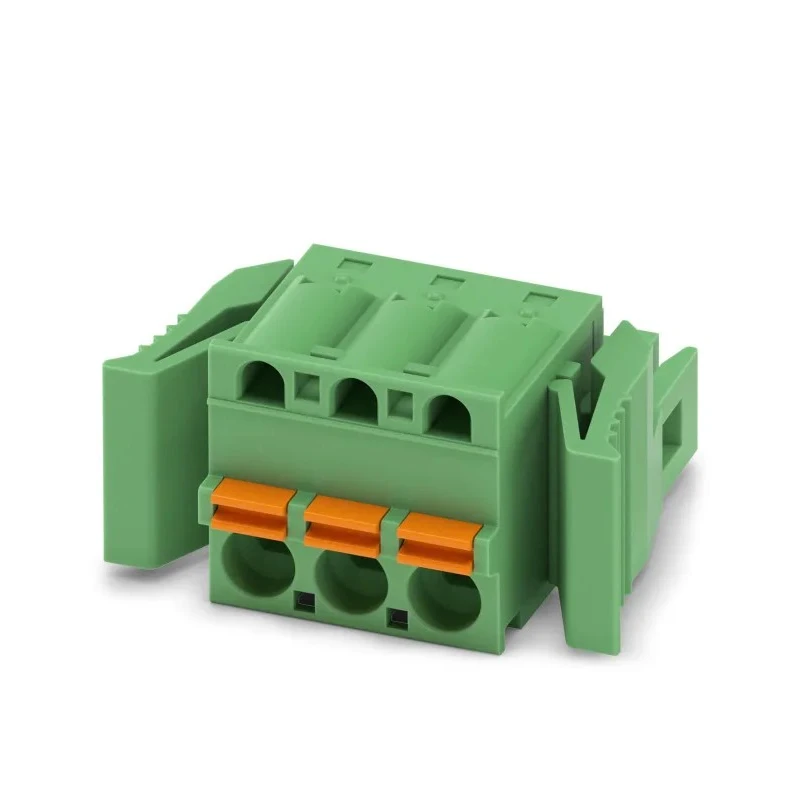

Phoenix Contact FKC 2.5/3-ST-5.08-RF Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 12A, 630V 1925702
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 25.73mm |
| Model | 1925702 |
| Depth | 15mm |
| Width | 28.66mm |
| Housing Material | Polyamide |
| Series | FKC 2.5/3-ST-5.08-RF |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
| PCB connector, nominal current | 12 A, rated voltage (III/2): 320 V, number of positions: 3, pitch: 5.08 mm, connection method: Push-in spring connection, colour: green, contact surface: Tin, Article with self-locking flange |
Key Features
- The terminal block features a straight orientation and a single row configuration.
- It supports wire sizes from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).
- Connection is via a screw wire connection method ensuring reliable contact.
- The terminal block is made of durable polyamide housing suitable for PCB mounting.
- Its contact surfaces have tin plating for corrosion resistance and reliability.
- It complies with RoHS standards for environmental safety.
- Designed for industrial and electronic applications requiring secure electrical connections.
Product Description
Phoenix Contact 1925702 Pluggable Terminal Block is a high-quality connector designed for reliable electrical connections in industrial, laboratory, and manufacturing environments. Featuring a 3-contact configuration with a 5.08 mm pitch and a single row layout, this terminal block is engineered to carry nominal currents up to 12 amperes and voltage ratings up to 630 volts, making it suitable for heavy-duty PCB applications.
The green polyamide housing provides excellent mechanical and thermal stability, while the screw connection method ensures secure wire retention for wire sizes ranging from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG). Tin-plated contact surfaces enhance conductivity and resist corrosion, extending the terminal block's service life.
This pluggable terminal block offers a straight orientation design and comes with a self-locking flange for secure mounting on printed circuit boards. Its RoHS compliance guarantees environmentally friendly manufacturing standards.
Industrial use cases include control cabinets, automation equipment, power supplies, and electronic device assemblies where reliable, serviceable, and compact electrical connections are needed. The terminal block's compact dimensions (25.73 mm length, 28.66 mm width, 15 mm depth) make it suitable for dense PCB layouts.
The terminal block supports up to 12A nominal current for demanding electrical circuits. Its 5.08 mm pitch and 3-contact design enable straightforward wiring and connector compatibility. Screw connection method ensures a stable and secure wire connection.
Green polyamide housing provides robust mechanical protection and electrical insulation. RoHS compliant materials meet global environmental and safety standards. Tin-plated contact surfaces prevent corrosion and ensure high conductivity.
Self-locking flange design aids in secure installation on PCBs. Explore the full range of Phoenix Contact Pluggable Terminal Blocks at EnvMart, ideal for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal current rating of 12A.
It is rated for a maximum voltage of 630V.
It supports wire sizes ranging from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).
The pitch of this terminal block is 5.08 mm.
It uses a screw connection method for secure wire retention.
The dimensions are 25.73 mm in length, 28.66 mm in width, and 15 mm in depth.
Yes, it complies with RoHS standards for environmental safety.
The housing is made of green polyamide, which provides mechanical and thermal stability.
This model features a 3-contact configuration.
It features a straight orientation design.
The country of origin for this terminal block is Germany.
It is suitable for industrial and electronic applications such as control cabinets, automation equipment, and power supplies.
