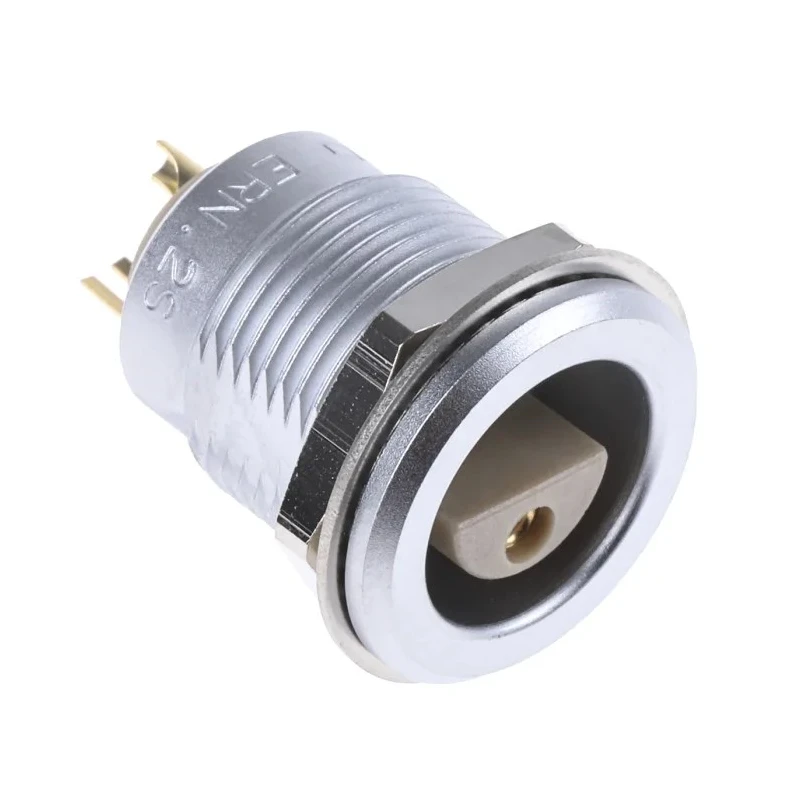

LEMO Circular Connector 2 Contacts Panel Mount Socket Female IP50 18 mm 2S Series ERN.2S.302.CLL
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 2400V |
| Brand | Lemo |
| Orientation | Straight |
| Current | 20A |
| Model | ERN.2S.302.CLL |
| IP Rating | IP50 |
| Mount Type | Panel Mount |
| Housing Material | Brass |
| Contact Material | Brass |
| Series | 2S |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Shell Size | 2 |
| Mating Type | Push Pull |
| Connector Size | 18 mm |
| Plug/Socket | Socket |
Key Features
- The connector features a straight body orientation with solder termination.
- It uses a push-pull mating type for quick and secure connections.
- Rated for currents up to 20A and voltage up to 2400V.
- Constructed from brass housing with gold-plated brass contacts for durability.
- Operates efficiently in temperatures ranging from -55°C to 250°C.
- IP50 protection ensures resistance against dust and solid particles.
- Incorporates an earthing tag socket connection for grounding safety.
- Highly resistant to vibration, shocks, and mechanical stresses.
Product Description
LEMO ERN.2S.302.CLL Circular Connector is a high-precision 2-contact female socket connector designed with robust industrial requirements in mind. It features a panel mount with an 18 mm diameter and is part of the 2S series, known for its compact design and reliable push-pull locking mechanism.
Constructed from chrome-plated brass and gold-plated brass contacts, this connector provides excellent durability and conductivity. The earthing tag socket connection and hermaphroditic keying ensure secure and safe mating.
Rated for a maximum current of 20A and voltage up to 2400V, it operates efficiently within a temperature range of -55°C to 250°C. The IP50 rating provides protection against dust intrusion, making it suitable for industrial indoor and controlled outdoor conditions.
The connector’s push-pull mating mechanism allows for quick and reliable coupling and decoupling, withstanding high vibration and shock environments. It supports up to 5000 mating cycles, ensuring longevity in demanding applications.
Applications include audio and video equipment, medical devices, research instrumentation, and test and measurement systems, where precision and reliability are critical. The connector meets strict industrial standards, with brass housing and nickel-plated latch sleeve components.
The connector has a straight orientation and a solder termination type. It offers EMC shielding of 360° for signal integrity. The shell size is 2, with a pole format of 2 contacts. It is engineered for high vibration and shock resistance.
Ensures secure push-pull locking with quick mating/unmating. Made in Switzerland, reflecting quality manufacturing standards. Explore our range of Industrial Circular Connectors at EnvMart to find compatible products and accessories suitable for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 20A and a voltage of up to 2400V.
It operates efficiently within a temperature range of -55°C to 250°C.
This connector features a solder termination type.
The connector has an IP50 rating, providing protection against dust intrusion.
It uses a push-pull mating type for quick and secure connections, allowing for easy coupling and decoupling.
It is constructed from brass housing with gold-plated brass contacts for enhanced durability and conductivity.
The shell size is 2, and it has a pole format of 2 contacts.
It is suitable for applications in audio and video equipment, medical devices, research instrumentation, and test and measurement systems.
This model can withstand up to 5000 mating cycles, ensuring longevity in demanding applications.
It supports panel mount installation, making it suitable for various setups.
It is manufactured in Switzerland, reflecting quality manufacturing standards.
It offers 360° EMC shielding for signal integrity.
