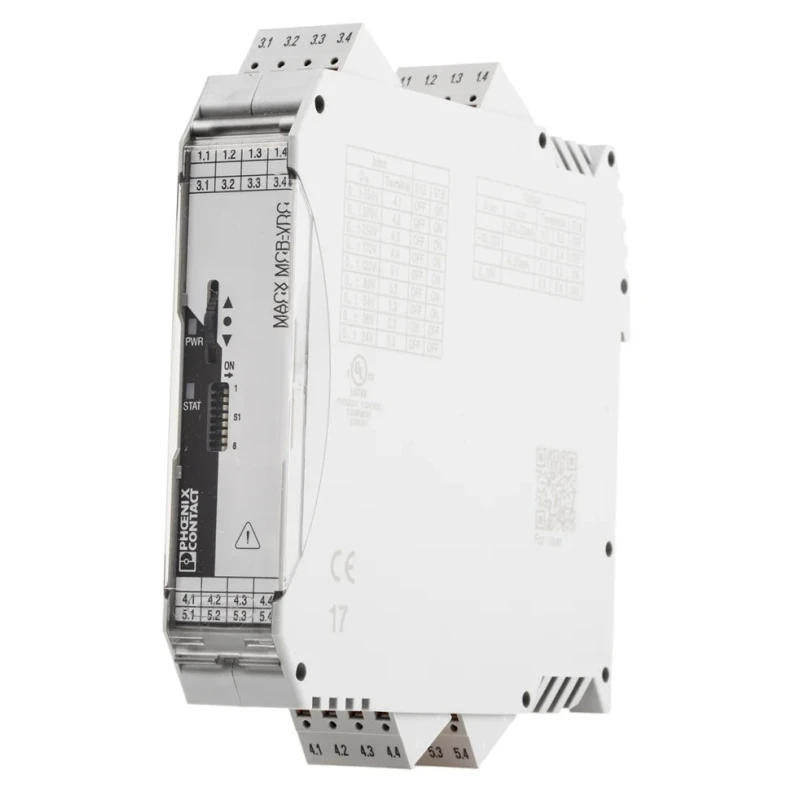

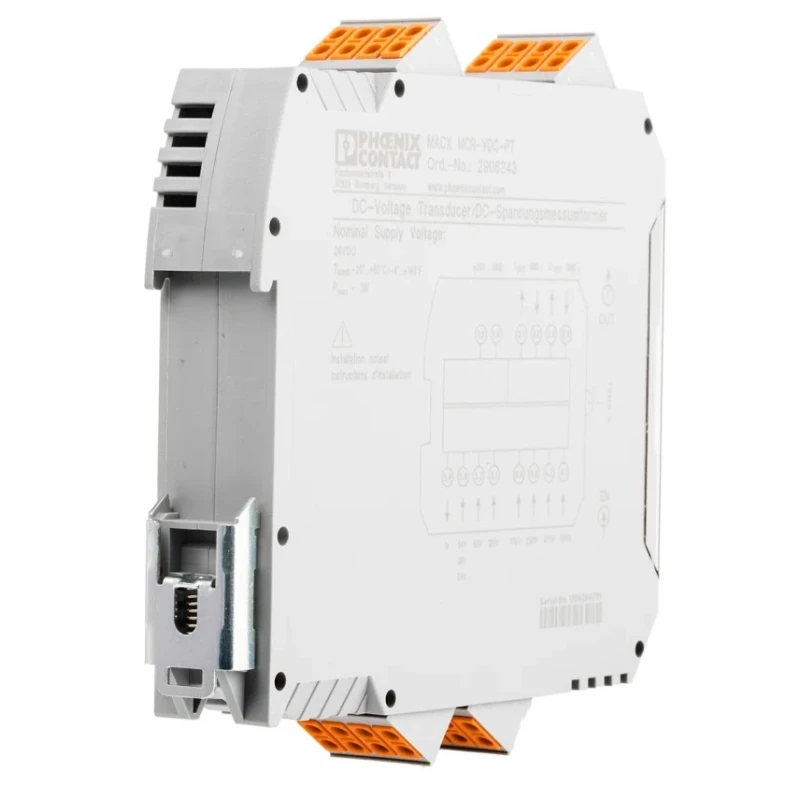

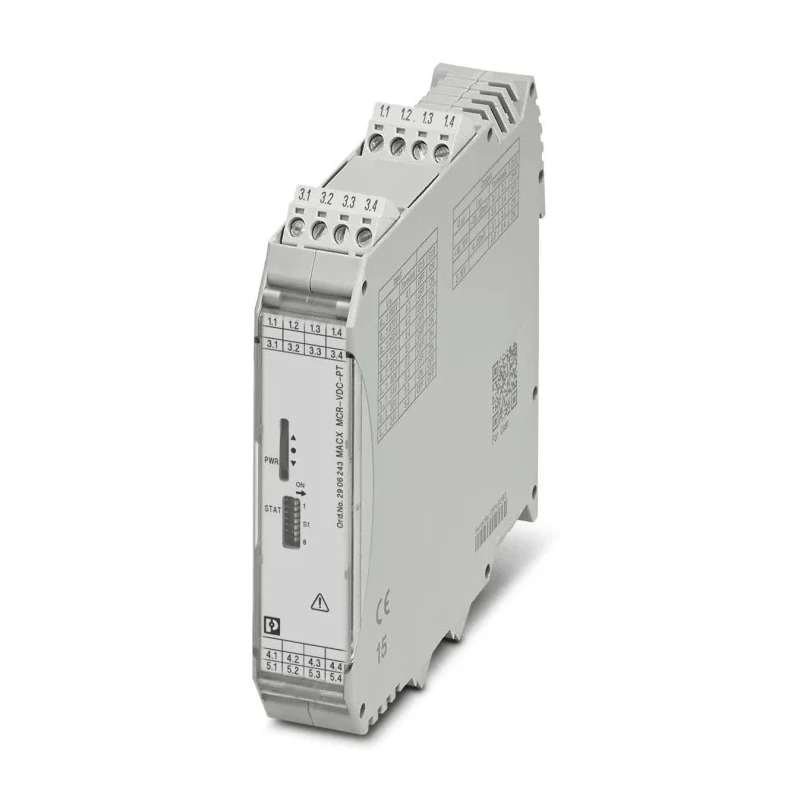

Phoenix Contact MACX MCR Series Signal Conditioner Voltage Input Current/Voltage Output 24V DC Supply 2906243

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MACX MCR Series Signal Conditioner Voltage Input Current/Voltage Output 24V DC Supply 2906243

Name: Phoenix Contact MACX MCR Series Signal Conditioner Voltage Input Current/Voltage Output 24V DC Supply 2906243
Brand: PHOENIX CONTACT
SKU: 150902
Price: 518.44 USD
Availability: InStock



Category Signal Conditioner Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	Input, Current/Voltage Output, 24V dc Supply RS Stock No
Brand	Phoenix Contact
Model	2906243
IP Rating	IP20
Mount Type	DIN Rail
Series	MACX MCR
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Push-in
Output Range	-10 → 10 V, -20 mA → 20 mA
Input Range	-550 → 550 V dc
Supply Voltage	24V dc
Input Signal Type	Voltage
Output Signal Type	Current/Voltage

Key Features

Designed for precise voltage measurement with input range from -550 to 550 V DC.
Provides bidirectional output signals in voltage and current formats.
Equipped with three-way isolation to ensure operational safety and reduce electromagnetic interference effects.
Mountable on DIN rail for easy installation in electrical control units.
Operates reliably in temperature ranges from -25°C to +60°C.
Features push-in terminal type for secure and straightforward wiring.
Compact dimensions of 99 mm height, 22.5 mm width, and 114.5 mm depth optimize space usage.
Rated IP20 for touch protection in industrial environments.

Product Description

Phoenix Contact 2906243 is a MACX MCR series signal conditioner designed for voltage input and current/voltage output applications. It operates with a 24V DC supply and converts DC voltage signals into proportional AC outputs, automatically calculating RMS values for precise monitoring.

This device features advanced three-way isolation, enhancing safety by preventing short circuits and reducing errors caused by electromagnetic interference. The adjustable voltage range allows customization according to measurement requirements.

Compact and easy to install, it mounts on standard DIN rails and includes push-in spring-cage terminals for secure wiring without special tools. Its robust construction supports an operating temperature range from -25°C to +60°C, suitable for demanding industrial environments.

The unit's compact dimensions (99 mm H x 22.5 mm W x 114.5 mm D) optimize space utilization in control cabinets. The IP20 rating ensures touch safety for operators. Precise voltage measurement from -550 to 550 V DC input range.

Bidirectional output signals available as voltage (-10 to 10 V) and current (-20 to 20 mA). Three-way isolation for enhanced operational safety. DIN rail mount for flexible installation. Wide operating temperature range from -25°C to 60°C.

Push-in terminal type for quick and reliable connection. Complies with international standards such as CE, UL, and IEC. Compact form factor with IP20 protection. Ideal for industrial automation, electrical signal conditioning, instrumentation, and monitoring systems in manufacturing, laboratory setups, and control panels.
