Abracon 25MHz Clock Oscillator ±20 ppm HCMOS TTL 4-Pin Surface Mount ASV-25.000MHZ-EJ-T

Free Delivery in India | Lowest Global Shipping Charges

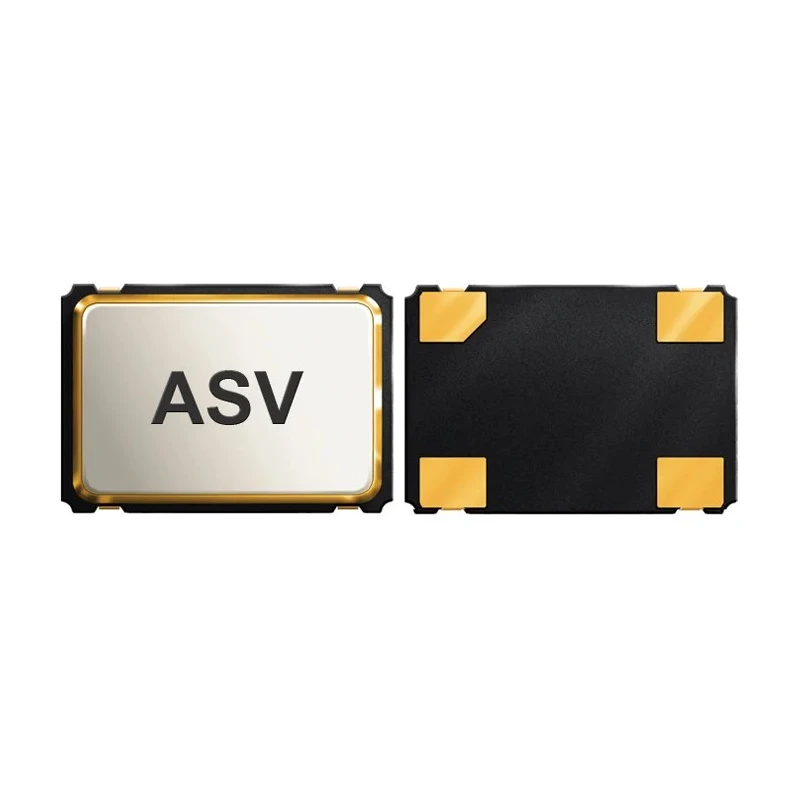

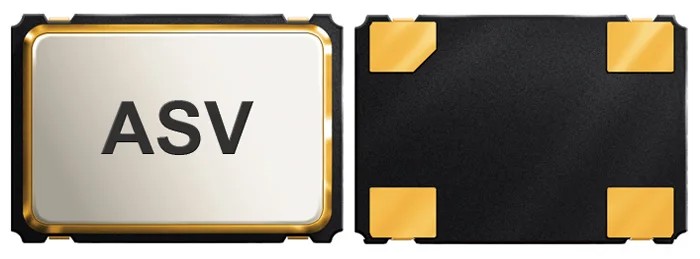

Abracon 25MHz Clock Oscillator ±20 ppm HCMOS TTL 4-Pin Surface Mount ASV-25.000MHZ-EJ-T

Name: Abracon 25MHz Clock Oscillator ±20 ppm HCMOS TTL 4-Pin Surface Mount ASV-25.000MHZ-EJ-T
Brand: Abracon
SKU: 150780
Price: 1.32 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.8mm
Length	7mm
Model	ASV-25.000MHZ-EJ-T
Packaging	Tape & Reel
Width	5.08mm
Mount Type	Surface
Series	ASV
Maximum Operating Temperature	70°C
Output Frequency	25MHz
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Pin Count	4
Maximum Supply Voltage	3.63V
Minimum Supply Voltage	2.97V
Oscillator Type	Clock
Output Level	HCMOS, TTL

Key Features

Operates with supply voltage range from 2.97V to 3.63V.
Surface mount package with tape and reel packaging for automated assembly.
Stable frequency output of 25MHz with ±20 ppm tolerance.
Includes high output drive capability suitable for clock signaling.
Operating temperature range from -20°C to 70°C.
Reliably sealed package designed for enhanced long-term stability.
Ideal for microprocessor clock, PC motherboard, and graphic card timing applications.
Compliance with general quality standards; no automotive or specific approvals.

Product Description

Abracon ASV-25.000MHZ-EJ-T 25MHz Clock Oscillator is a 4-pin surface mount oscillator designed for precise and stable clock frequency generation in electronic circuits. Operating within a supply voltage range of 2.97V to 3.63V, it delivers a high-performance HCMOS TTL output signal with frequency stability of ±20 ppm.

The oscillator features a compact package measuring 7mm in length, 5.08mm in width, and 1.8mm in height, suitable for space-constrained PCB designs. The tape and reel packaging supports efficient automated surface mount assembly processes.

Its sealed construction ensures high reliability and durability against environmental factors, making it ideal for applications such as microprocessor clocks, PC motherboards, and graphic cards where accurate timing signals are essential.

The device operates reliably across a temperature range from -20°C to 70°C and offers high output drive capabilities supporting capacitive loads up to 50pF. While designed for general industrial and commercial electronics, note that it does not conform to specific automotive standards.

Operates with a supply voltage range between 2.97V and 3.63V for flexible power designs. Stable ±20 ppm frequency tolerance ensures timing accuracy over environmental changes. Compact surface mount form factor with 4 pins aids in low-profile circuit layouts.

Tape and reel packaging facilitates mass production and handling efficiency. High output drive suitable for microprocessor clocks and PC motherboard timing circuits. Wide operating temperature range from -20°C to 70°C supports diverse environmental conditions.

Sealed package provides long-term operational reliability for industrial and commercial use. No automotive standard approvals, intended primarily for industrial-grade electronics. Compact dimensions of 7mm length, 5.08mm width, and 1.8mm height optimize PCB space usage.

This Abracon oscillator is a reliable choice for engineers seeking precise clock signals in electronic systems used in industrial, laboratory, manufacturing, and computing environments. Explore additional Abracon oscillators and related components in the Electronics Components category at EnvMart for integrated solutions.
