Phoenix Contact MCR-S10 Series Current Measuring Transducer with 55A Input Range, 0 to 20mA Output, 20-30V DC 2814728

Phoenix Contact 2814728 is a Current Measuring Transducer from the MCR-S10 series, engineered for precise current measurement in industrial applications. It supports a primary current input range of up to 55 A and delivers an output current signal ranging from 0 to 20 mA. Powered by a supply voltage of 20 to 30 V DC, it ensures stable and reliable operation under diverse conditions.

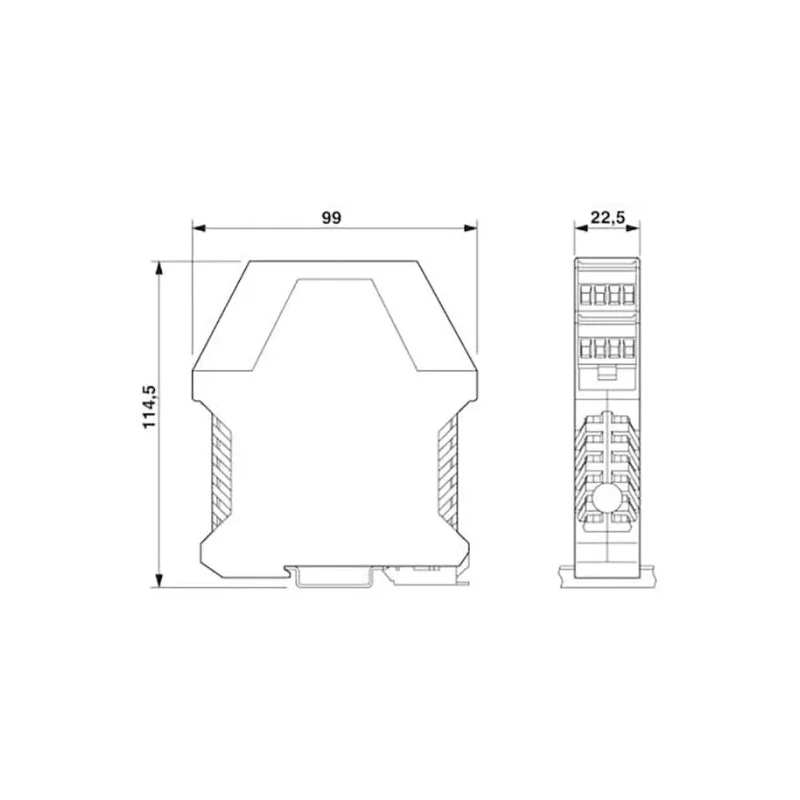

This model features a robust chassis mounting design allowing easy installation within electrical control units. Its compact size (99 mm height, 22.5 mm width, 114.5 mm depth) enables integration into limited spaces. Constructed with a durable polyamide green casing, it offers abrasion resistance suitable for demanding environments.

The transducer operates efficiently across a wide temperature range from -20°C to 60°C, making it ideal for industrial, automation, measurement, and control system uses. The IP20 ingress protection rating safeguards the unit against solid object intrusion larger than 12 mm, enhancing longevity.

Terminal connections are made via screw terminals with an M3 screw thread and 8 mm stripping length to guarantee secure and stable wiring. A tri-color LED status indicator simplifies monitoring and troubleshooting tasks during operation. Configuration options include DIP switch settings or software adjustment using MCR/PI-CONF-WIN, providing flexibility to suit application needs.

Certified for hazardous areas under various groups and zones, it complies with standards including UL, cULus, CE, and EAC. This transducer suits applications in industrial automation systems, electrical panels, and other areas requiring accurate and reliable current measurement, including direct, alternating, and distorted current signals.

Operates with a stable supply voltage between 20V to 30V DC for consistent performance. Chassis mount design allows flexible installation in control units. Compact dimensions of 99 mm (H) x 22.5 mm (W) x 114.5 mm (D) for space-saving integration.

IP20 rated enclosure protects against solid objects above 12mm and ensures durability. Wide operating temperature range from -20°C to 60°C for use in diverse industrial environments. Equipped with screw terminals for secure and reliable electrical connections.

Status indication via LEDs simplifies monitoring of device operation. Supports configuration through DIP switches or MCR/PI-CONF-WIN software for flexibility. Designed for industrial applications requiring accurate measurement of alternating, direct, or distorted currents.
