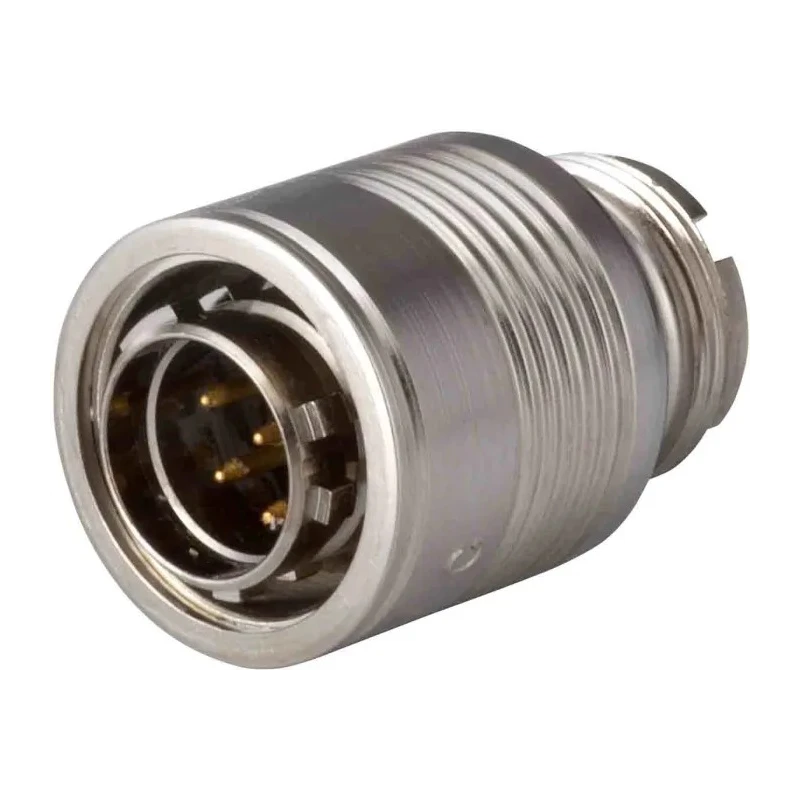

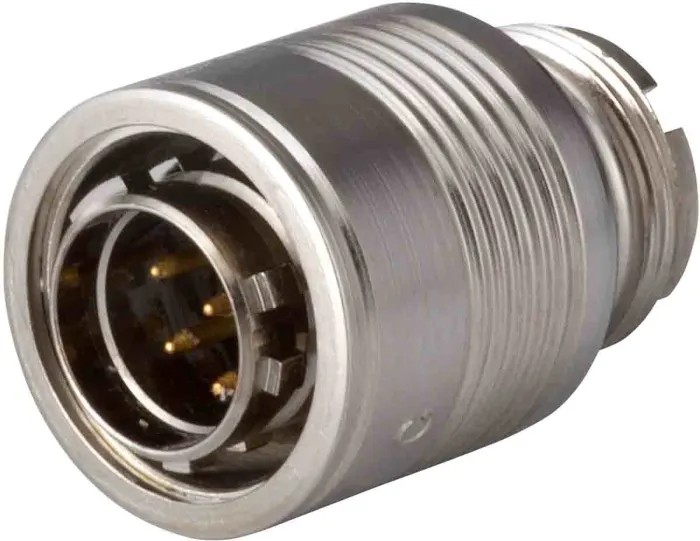

Jaeger Circular Connector Miniature Cable Plug, Female, 19 Contacts, Gold Plated Brass, IP65, 2500V, 5A, Push 7622 190 06

Jaeger 7622 190 06 is a miniature circular connector cable plug designed for industrial applications requiring robust and reliable connectivity solutions. This female connector has 19 gold-plated brass contacts, providing excellent electrical performance with a nominal contact diameter of 0.76 mm. It operates at a voltage of 2500V and a current of 5A, making it suitable for a variety of electronic and power connector applications.

The connector features a push-pull mating type with a straight orientation and a shell size of B0, ensuring easy and secure connection and disconnection. The contacts are removable and terminated by crimping, which supports convenient maintenance and customization. The connector is rated IP65, offering dust-tight protection and resistance against water jets, thus suitable for demanding environments.

Operating temperature ranges from -40°C to 100°C, enabling usage in harsh industrial settings. This miniature HD series is part of the 7622 series, known for its push-pull locking mechanism and high-density contact configurations. The rear cable gland connectors can be ordered separately with options for standard cable gland or 360° earth connection for enhanced grounding.

Manufactured in France, this circular connector complies with contact dimensions according to NFC 93422 standards but does not have additional approvals listed. It is ideal for industrial, manufacturing, construction, and electronic component applications where secure, high-density connections are essential.

The connector supports a voltage rating of 2500V and current rating of 5A. Features a push-pull mating type with a straight orientation for secure connections. Termination by removable crimp contacts ensures reliable performance.

Gold-plated brass contacts provide corrosion resistance and conductivity. Operating temperature range: -40°C to 100°C for harsh environments. IP65 rating for dust-tight and water-resistant protection. Shell size B0 with nominal contact diameter of 0.76 mm (rating 22D).

Miniature HD series with push-pull locking enhances usability. Manufactured in France for high quality and standards compliance. Explore more high-quality Industrial Circular Connectors at EnvMart for your electronics and power connectivity needs.
