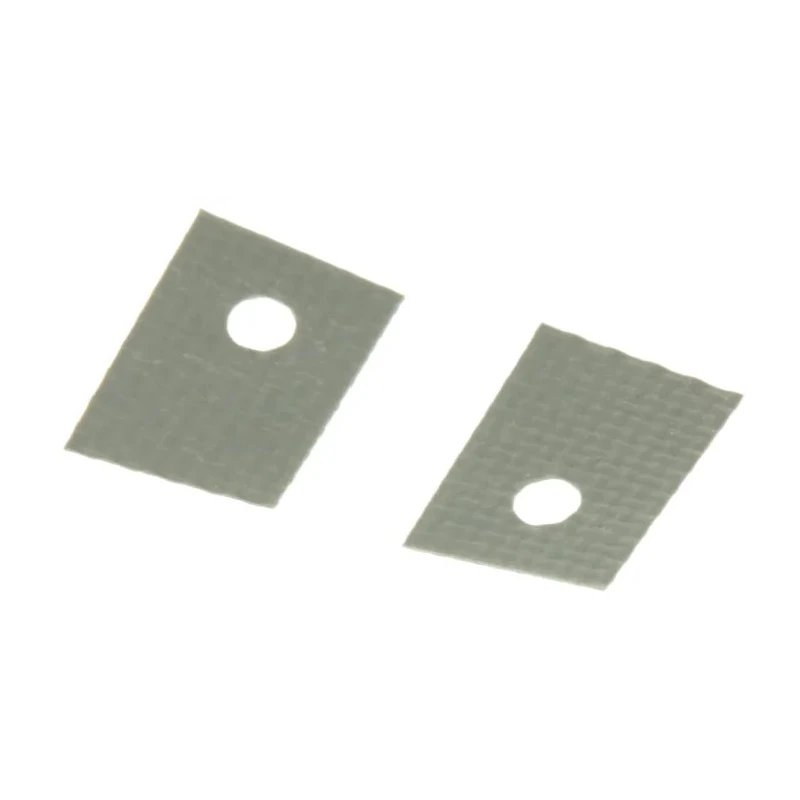

Bergquist Series Self-Adhesive Thermal Interface Pad, 0.18 mm Thick, 0.9 W/mK Thermal Conductivity, 11.1 mm x 7.92 mm SP400

Bergquist SP400 Series Self-Adhesive Thermal Interface Pad SP400 offers a high-performance solution for thermal management in industrial electronic assemblies. With a thickness of 0.18 mm and thermal conductivity of 0.9 W/mK, this pad efficiently transfers heat between devices and heatsinks, reducing thermal resistance.

Constructed from silicon rubber reinforced with fibreglass, the Sil-Pad 400 provides excellent physical durability including high Shore A 85 hardness and resistance to perforation. The self-adhesive surface facilitates straightforward installation, minimizing risk of movement during operation.

The pads measure 11.1 mm in length and 7.92 mm in width, making them suitable for precise thermal interface applications. Operating temperature ranges from -60°C up to a maximum of 180°C, supporting a broad range of industrial, commercial, and HVAC electronics thermal management needs.

Additional features include flame retardance, non-toxicity, and compliance with RoHS standards, ensuring safety and environmental compatibility. These characteristics make the SP400 pads ideal for insulating between power devices and heatsinks in demanding electronic circuits.

Fibreglass reinforcement ensures mechanical strength and long service life even in challenging environments where thermal cycling and cleaning agents are present. The grey color and pliable surface guarantee perfect contact and excellent thermal dissipation.

The pad is 0.18 mm thick providing effective thermal insulation. Thermal conductivity is 0.9 W/mK ensuring efficient heat transfer. Dimensions measure 11.1 mm in length and 7.92 mm in width. Constructed from fibreglass reinforced silicon rubber with Shore A 85 hardness.

It is self-adhesive for easy application between power devices and heatsinks. Operates safely between -60°C and 180°C maximum temperature. The pad complies with RoHS environmental standards. Provides excellent resistance to perforation due to fibreglass reinforcement.

Non-toxic material suitable for industrial electronic thermal management applications. Grey color with pliable surface for perfect contact and heat dissipation.

This Bergquist SP400 Series thermal interface pad is a reliable choice for industrial, laboratory, HVAC, manufacturing, and electronic equipment thermal management applications. It ensures optimal heat dissipation while providing insulation and physical protection to sensitive components.
