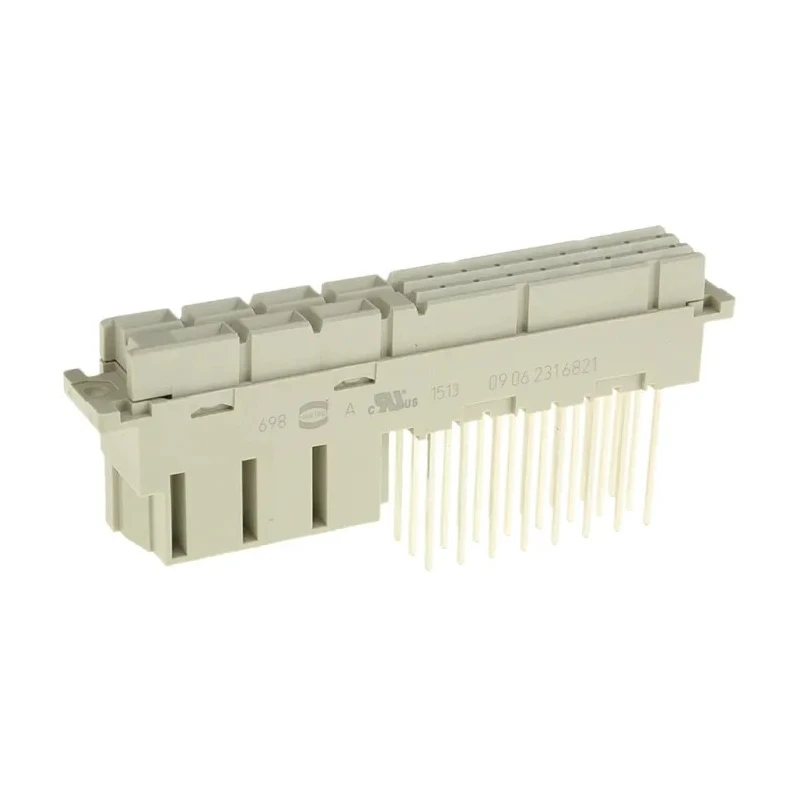

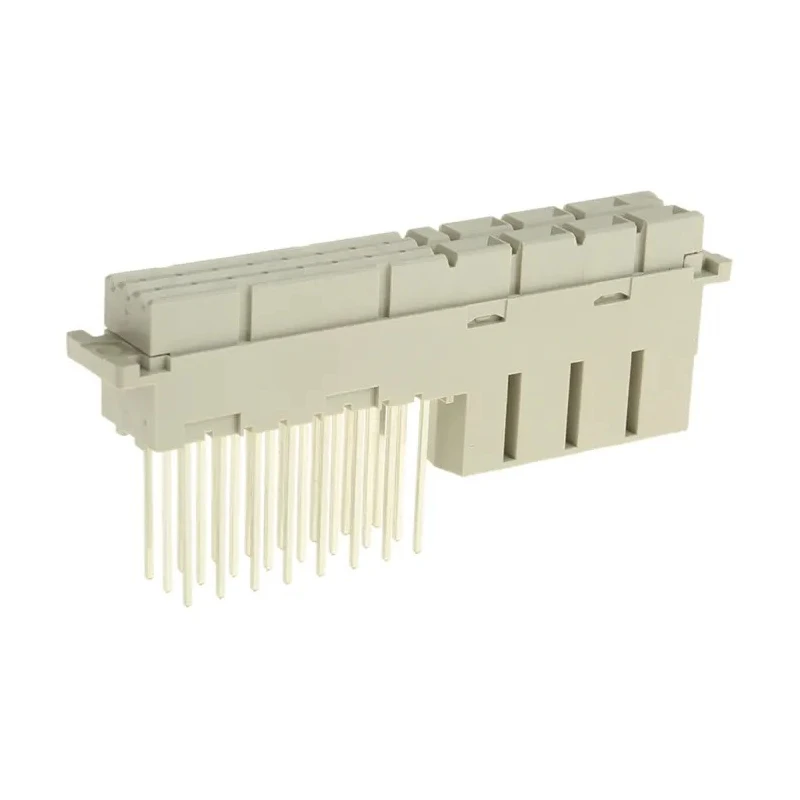

Harting DIN 41612 64-Way Panel Mount Connector, 10.16mm Pitch, Type C/2, Class C2, 3 Row Female, Straight 09062316821

Harting 09062316821 is a high-quality DIN 41612 connector designed for panel mounting in electronic systems requiring robust modular connectivity. This specific connector offers 64 contacts arranged in three rows, allowing for high-density wiring and flexible system configurations. The connector is certified as Type C/2, wire class C2, and features a precise 10.16 mm pitch to support standard backplane and rack mounting applications.

Constructed with silver-plated copper alloy contacts, this connector provides exceptional conductivity and minimizes contact resistance for reliable electrical transmission. The connector's straight orientation makes it ideal for panel-mount installations, enabling secure placement within rack systems and electronic control cards. The female connector design is compatible with industry-standard male plugs, facilitating easy interoperability across a range of devices.

Harting's DIN 41612 connector is rated for a maximum current of 15A, supporting power distribution as well as signal transmission in demanding environments such as control systems, industrial automation, railway transport, and power supply units. Its panel mount configuration includes Faston 250 size blade terminations for high-current contacts, along with wire wrap connection points for versatile wiring solutions.

The housing is manufactured from polybutylene terephthalate, providing high mechanical strength and excellent electrical insulation. The connector is tested to operate within a wide temperature range from -55°C to 125°C, ensuring durability and stable performance under harsh conditions. The sub-type C/2 and wire termination design complies with stringent industrial standards, making the connector suitable for critical control and PSU boards.

Additional specification highlights include silver contact plating, D, Z, B row loading, and maximum contact resistance of 15mΩ. The connector is manufactured in Germany, reflecting Harting's commitment to quality and precision engineering.

Industrial applications include modular backplane design, rack-mount instrumentation, railway control cards, power supply interfacing, and general-purpose signal and power distribution in electronics manufacturing and laboratory equipment.

Explore the full range of Harting DIN 41612 connectors in the DIN 41612 Connector category on EnvMart, where you can find compatible modular connectors for advanced industrial systems.
