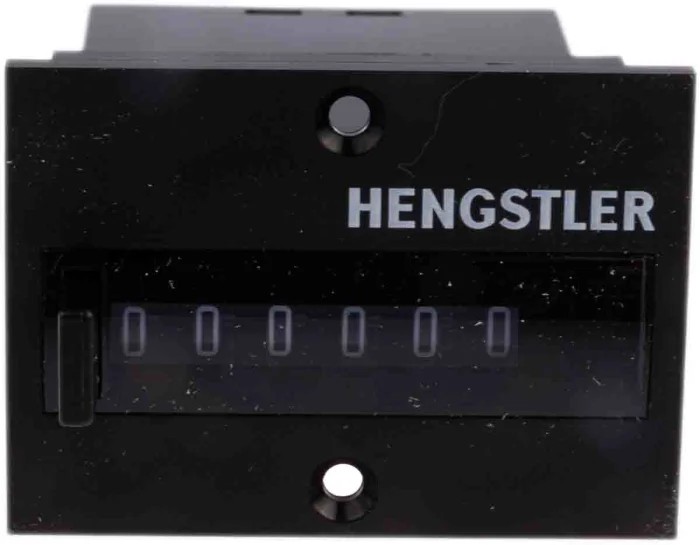

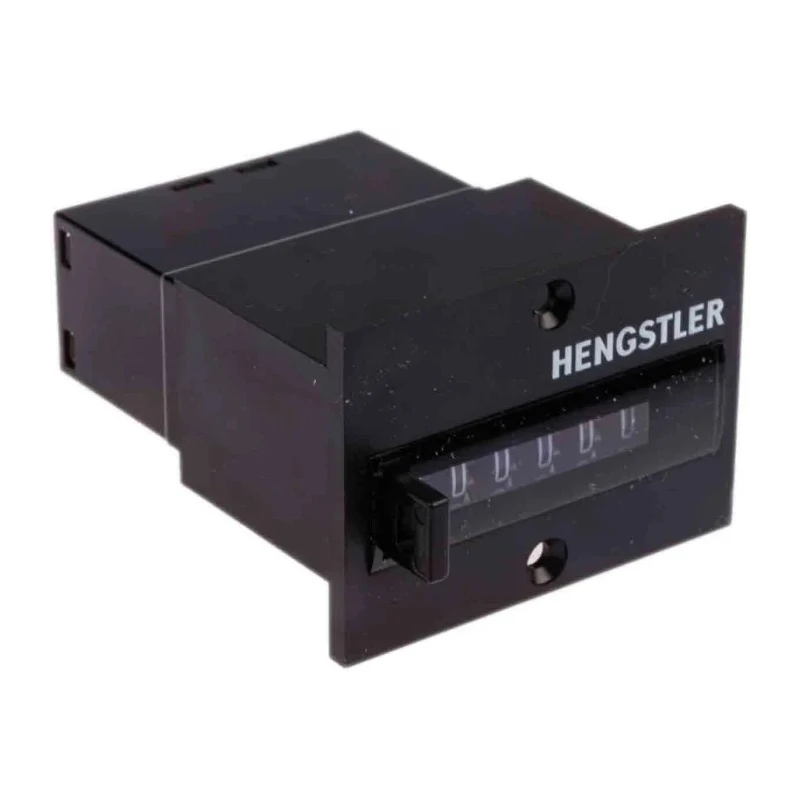

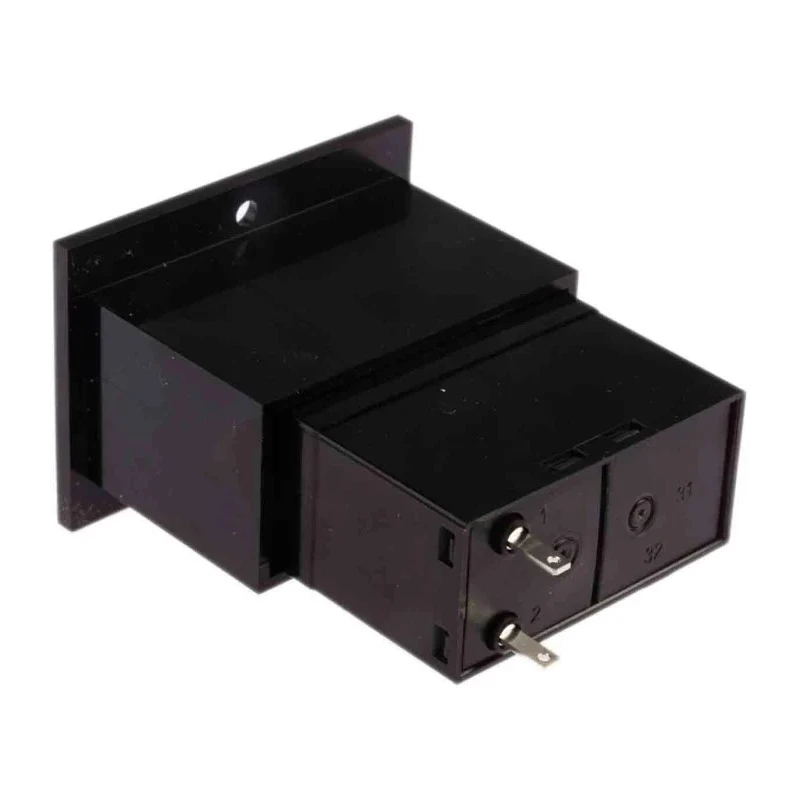

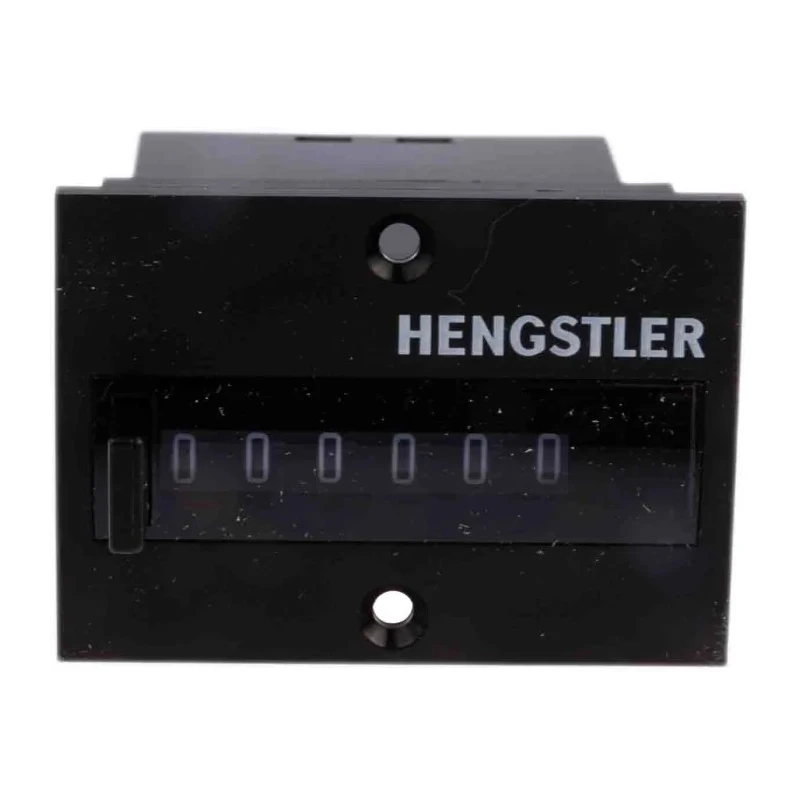

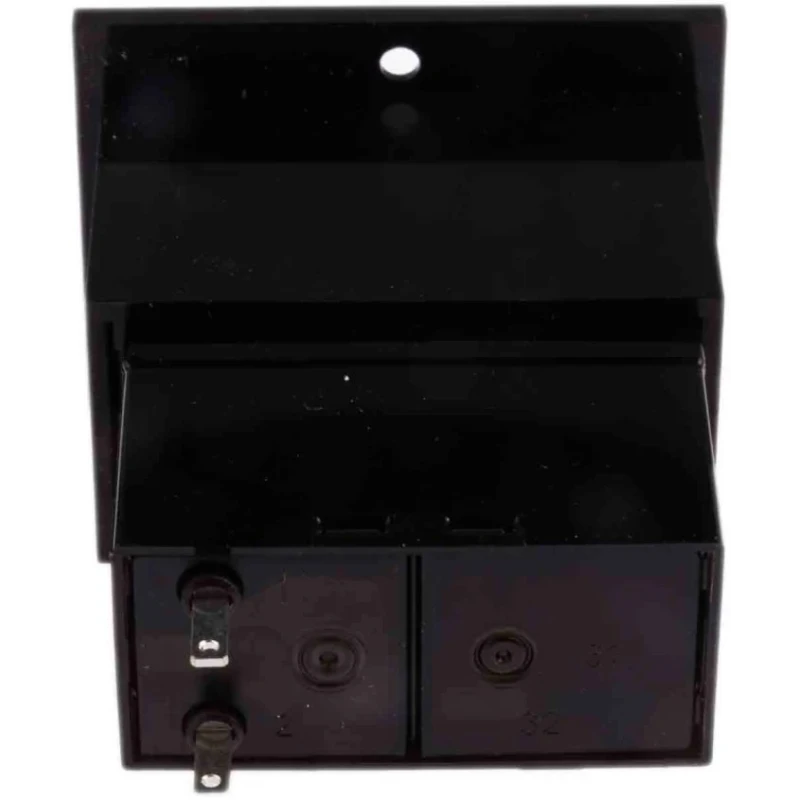

Hengstler 864 Series Digital Electromechanical Counter Panel Mount 6 Digit 25 Hz 24V DC 0 864 165
Specifications
| Country of Origin | Slovakia |
|---|---|
| Brand | Hengstler |
| Function | Counter |
| Connection Type | Screw |
| Depth | 62.5mm |
| Gross Weight | 90g |
| Mount Type | Panel Mount |
| Series | 864 |
| Maximum Operating Temperature | 50°C |
| Meter Type | Electromechanical |
| Number Of Digits | 6 |
| Minimum Operating Temperature | -10°C |
| Digit height | 4mm |
| Pay online using | Or choose to pay later via bank transfer |
| Cutout Height | 27mm |
| Cutout Width | 52mm |
| Count Mode | Impulse |
| Count Direction | Up |
| Maximum Supply Voltage | 24V dc |
| Maximum Count Frequency | 25Hz |
| Reset Method | Manual |
Key Features
- Equipped with manual reset for totalizer functionality.
- Features impulse count mode and upward counting direction.
- Panel mount installation with screw connection type for secure fitting.
- Digit height measures 4 mm for clear visibility.
- Operates reliably in temperature range from -10°C to 50°C.

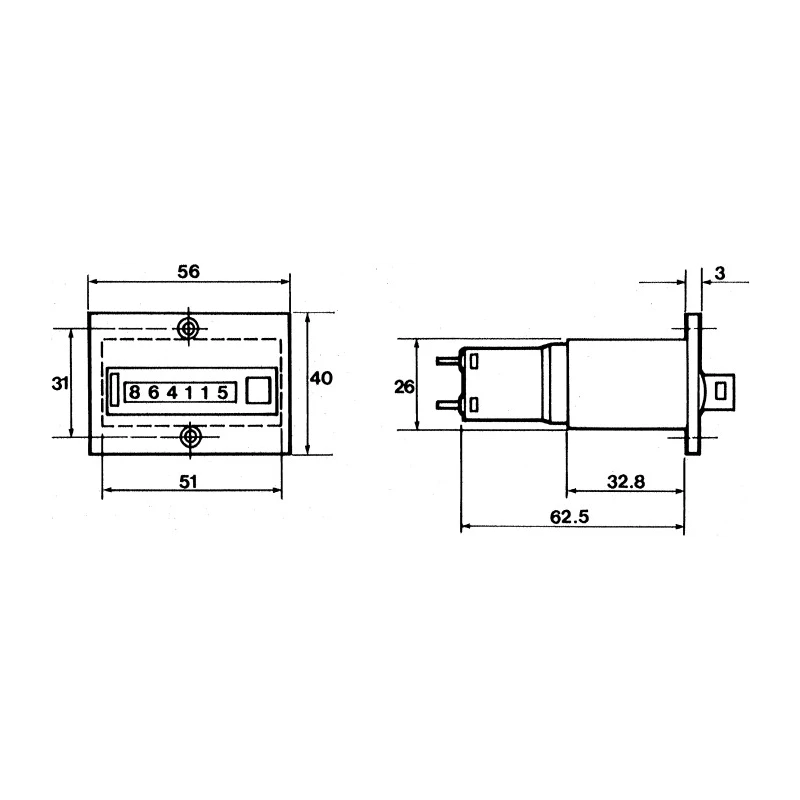

- Compact depth of 62.5 mm and cutout size 52 mm by 27 mm.
- Robust electromechanical construction offers durability.
- Designed for industrial counting and control monitoring.
Product Description
Hengstler 0 864 165 digital electromechanical counter is a precision 6-digit panel mount counter operating on a 24V DC supply with a maximum count frequency of 25Hz. It is ideal for industrial counting applications, control, and monitoring systems in manufacturing and assembly lines.
This counter operates using an impulse count mode with an upward counting direction and manual reset method for flexibility in totalizer functions. The device features reliable screw type terminal connections ensuring easy and secure installation on panels with cutout dimensions of 52 mm width and 27 mm height.
The digit height of 4 mm ensures excellent readability while the compact depth of 62.5 mm saves panel space. Its rugged electromechanical design provides durability with an operating temperature range from -10°C to 50°C.
The Hengstler 864 series counters are manufactured in Slovakia and conform to safety and quality standards including EN 61010-1, EN 50178, and VDE 0110. With an IP40 rating, the unit provides protection against solid objects ensuring dependable performance in industrial environments.
Equipped with manual reset for totalizer functionality. Impulse count mode with upward counting direction. Panel mount design with secure screw connections. Digit height of 4 mm for clear display. Suitable for operation between -10°C and 50°C.
Compact depth of 62.5 mm for space-saving installation. 6-digit electromechanical display for accurate counting. Standards compliant for safety and quality assurance. IP40 rated for industrial protection levels. Manufactured in Slovakia ensuring product quality.
This Hengstler digital counter is well suited for industrial machines, electronic controls, laboratory measurement setups, manufacturing lines, and other applications where precise counting is essential. Explore more products in Digital Counters category for additional options and features.
Explore more products in our Electronic Components category.
