ITT Cannon Circular Connector 31 Contacts Panel Mount Socket Female IP67 Trident Neptune TN0S24-1219S1L / 192900-0036

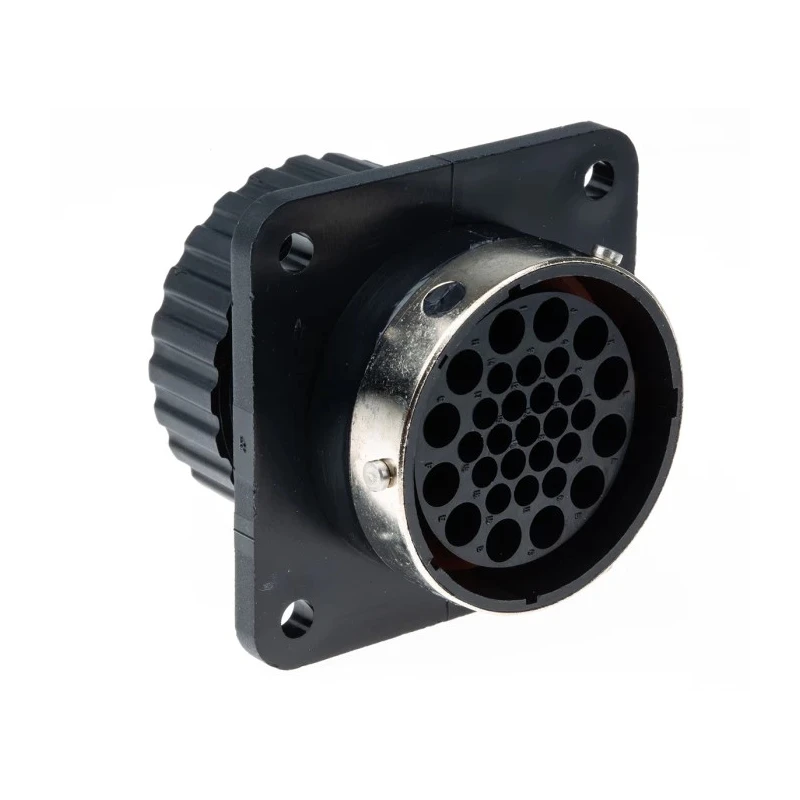

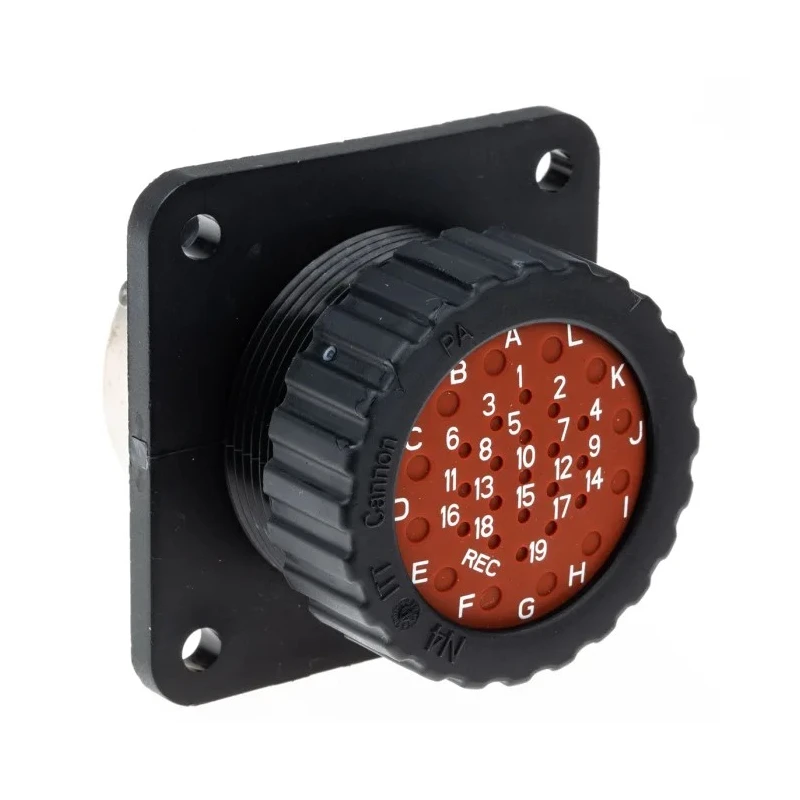

ITT Cannon TN0S24-1219S1L / 192900-0036 Circular Connector is a high-quality panel mount socket connector with 31 female contacts, designed for demanding applications requiring IP67 ingress protection. It features a robust polymer housing and nickel-plated copper contacts, ensuring excellent electrical performance and mechanical durability.

This connector supports a maximum current rating of 30A and voltage rating of 250V, making it suitable for a variety of industrial environments including automotive, marine, and process control sectors.

Operating temperatures range from -55°C to 105°C, ensuring reliable performance in extreme conditions. The connector's bayonet mating type provides a strong and secure coupling, while crimp termination offers reliable wire connections.

Panel plug and socket shells share the same rear sealing arrangement to maintain the IP67 rating, with options for backshell accessories and dust caps to enhance protection. The Neptune series, based on the Trident Ringlok architecture, is known for combining power and signal contacts with a strong bayonet lock system and standard/reversed pin/socket configurations.

Constructed with durable polymer housing providing resistance to harsh environmental exposure. 31 nickel-plated copper contacts ensuring consistent conductivity and corrosion resistance. Rated for 30A current and 250V voltage, suitable for demanding industrial electrical applications.

Wide operating temperature range from -55°C up to 105°C supports varied environmental conditions. Bayonet mating mechanism offers quick and secure connection with a straight orientation. IP67 rated for dust-tight and water ingress protection, ensuring reliability in outdoor or wet environments.

Crimp termination allows secure and stable wire attachment for long-lasting connections. Manufactured in Hungary adhering to high quality and performance standards. Compatible with a range of backshells, rear housings, and dust caps for enhanced sealing and protection.

This circular connector is engineered for industrial use cases including automotive wiring harnesses, marine control systems, process automation, and other electronic equipment requiring reliable circular connectivity and environmental protection.
