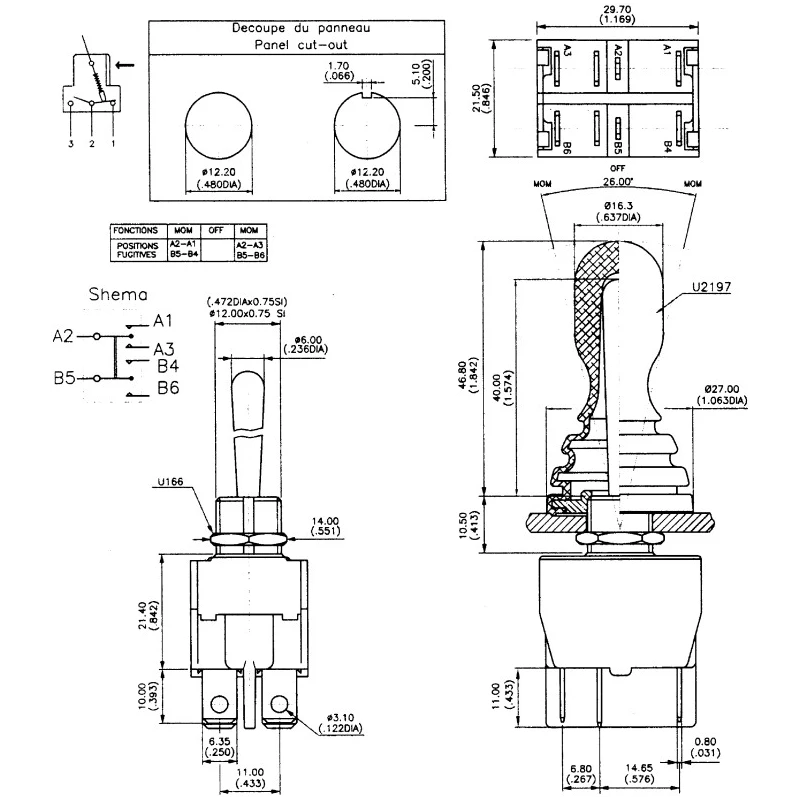

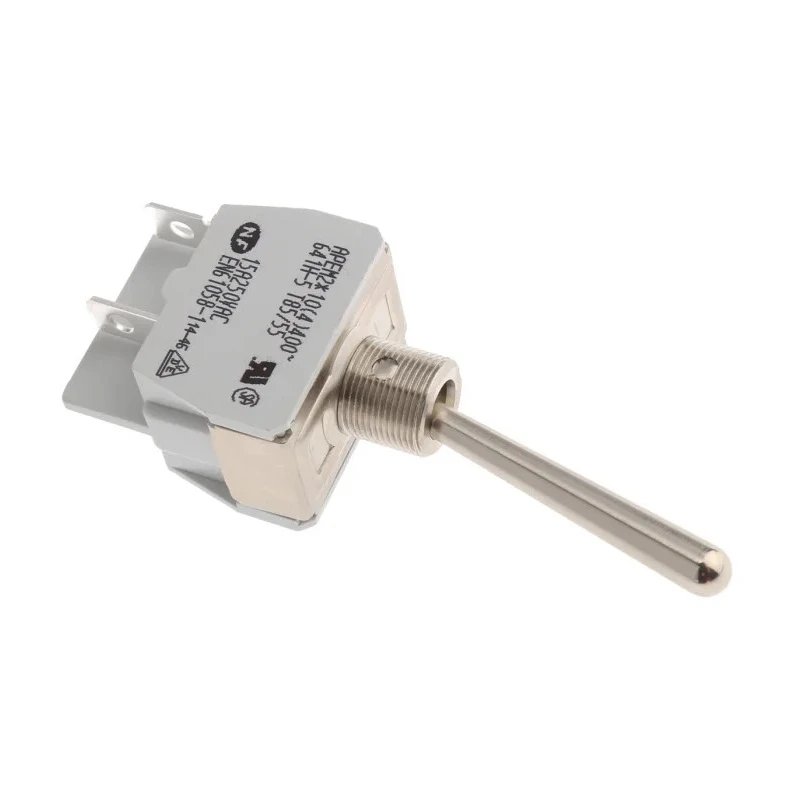

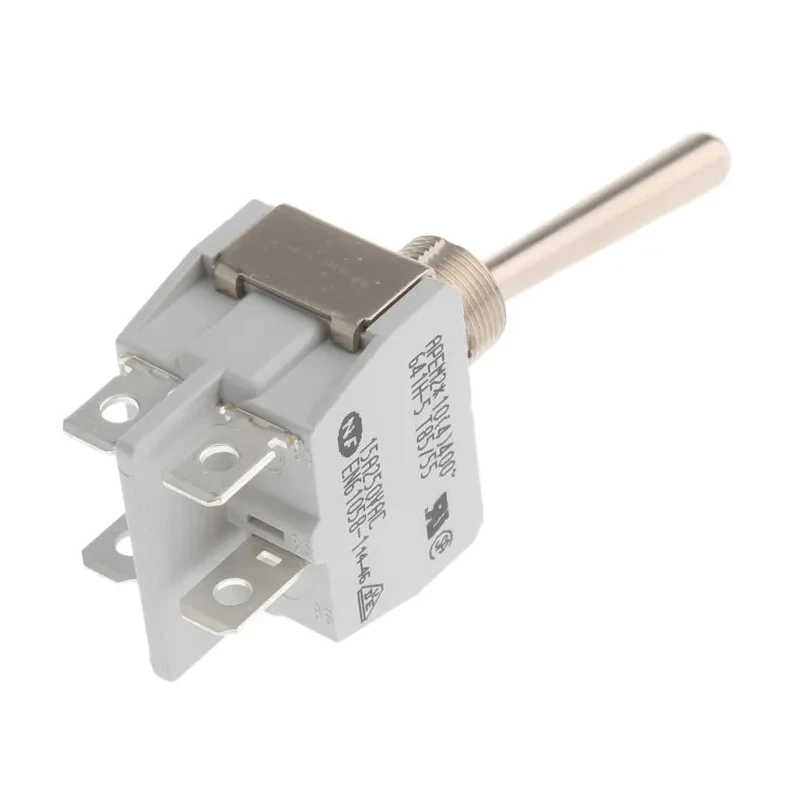

APEM Industrial Toggle Switch Panel Mount On-Off DPDT Solder Terminal 24 V dc 250 V ac 641H/2-5
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 60.4mm |
| Length | 29.7mm |
| Model | 641H/2-5 |
| Width | 21.5mm |
| Mount Type | Panel |
| Series | 600h |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, EN, NF, VDE, UL, RoHS |
| Switch Operation | On-Off |
| Actuator Length | 40mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 10A |
| Mechanical Life | 10000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- The switch is designed for panel mounting with a robust 12.5 mm panel cutout size.
- It supports a contact current of 10 A for both DC and AC applications.
- The actuator has a nickel plated brass lever of 40 mm length for ergonomic operation.
- The switch operates within a temperature range of -20°C to 55°C ensuring durability in industrial environments.
- The fully insulated and sealed front face provides protection suitable for industrial use.
- It complies with CSA, EN, NF, VDE, UL, and RoHS standards ensuring high quality and safety.
- The switch has a mechanical life expectancy of 10,000 operations.
- Compact dimensions of 60.4 mm height, 29.7 mm length, and 21.5 mm width make it suitable for tight panel spaces.
Product Description
APEM 641H/2-5 is an industrial-grade toggle switch designed for panel mounting applications, featuring On-Off DPDT contact configuration and solder terminals. It operates at 24 V dc and 250 V ac, making it suitable for diverse electrical and automation control systems.
The switch features a 40 mm nickel plated brass actuator lever that facilitates easy and ergonomic operation. Its panel cutout size requires a precise 12.5 mm mounting hole, providing secure installation and stability. The front face of the switch is fully insulated and sealed, offering protection against industrial environmental hazards such as dust and moisture.
With a switch contact current rating of 10 A for both DC and AC voltages, this toggle switch is capable of handling substantial electrical loads. The operating temperature range from -20°C to 55°C ensures reliable performance under various industrial conditions.
Compliance with major international certifications - CSA, EN, NF, VDE, UL, and RoHS - guarantees adherence to stringent quality and safety standards. Additionally, this model has a mechanical life rated at 10,000 operations, emphasizing its durability in repeated industrial use.
Compact dimensions (60.4 mm height, 29.7 mm length, and 21.5 mm width) make this toggle switch well-suited for integration into control panels with limited space availability. Panel mount toggle switch with On-Off DPDT operation.
Contact current up to 10 A at 24 V dc and 250 V ac. Nickel plated brass actuator lever 40 mm long for ergonomic control. Operating temperature from -20°C to 55°C for diverse environments. Fully insulated and sealed front face for enhanced industrial protection.
Certified to CSA, EN, NF, VDE, UL, and RoHS standards. Durable mechanical life of 10,000 switch operations. Compact dimensions ideal for panel installations.
This Toggle Switch is widely used in electrical panels, industrial automation systems, and machinery requiring reliable manual switching controls. Its robustness and certification make it ideal for manufacturing, HVAC, and commercial electrical applications.
Discover more electrical components and industrial switches at EnvMart to enhance your control systems with quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The switch has a contact current rating of 10 A for both DC and AC applications, making it suitable for handling substantial electrical loads.
It operates at 24 V dc and 250 V ac, accommodating a range of electrical and automation control systems.
The switch has compact dimensions of 60.4 mm in height, 29.7 mm in length, and 21.5 mm in width, making it suitable for tight panel spaces.
It requires a panel cutout size of 12.5 mm for proper mounting and secure installation.
This toggle switch operates within a temperature range of -20°C to 55°C, ensuring reliable performance in various industrial conditions.
The switch has a mechanical life expectancy rated at 10,000 operations, indicating its durability for repeated use.
The actuator is made of nickel plated brass, providing ergonomic control with a lever length of 40 mm.
It complies with several international standards including CSA, EN, NF, VDE, UL, and RoHS, ensuring adherence to quality and safety requirements.
This model features solder terminals, which are suitable for secure electrical connections in panel installations.
It is designed for panel mounting, making it suitable for integration into control panels and other equipment.
This toggle switch is widely used in electrical panels, industrial automation systems, and machinery requiring manual switching controls.
