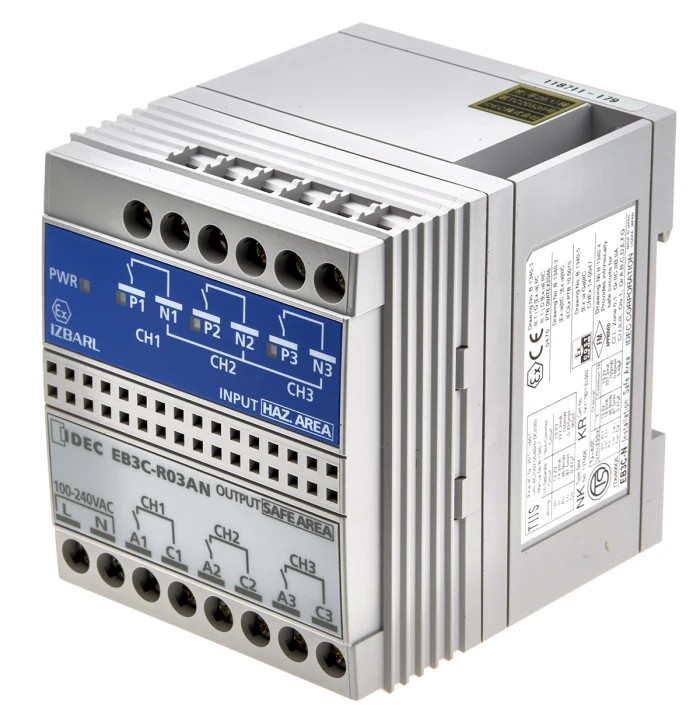

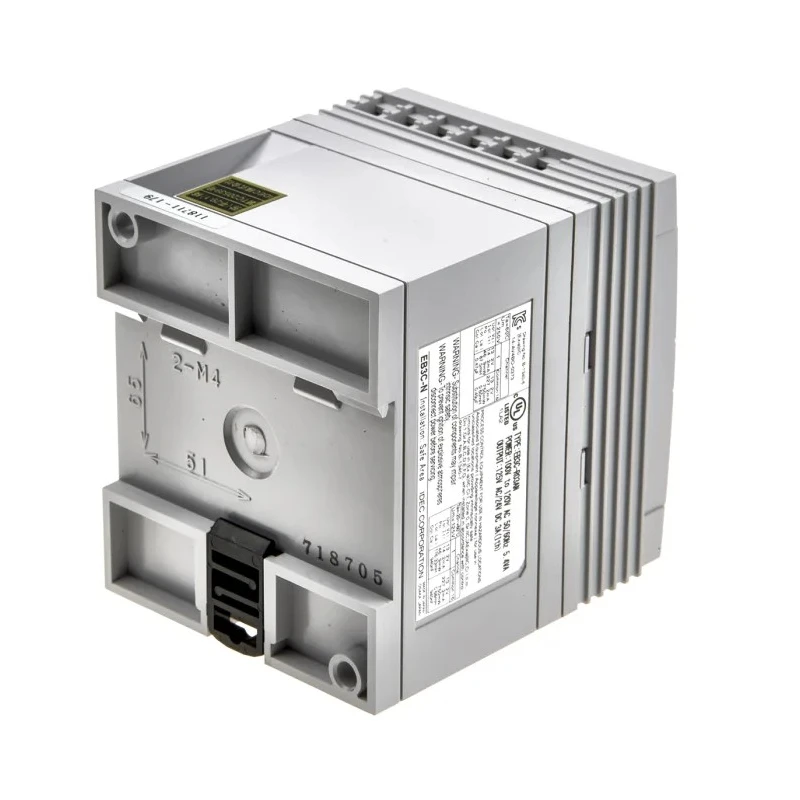

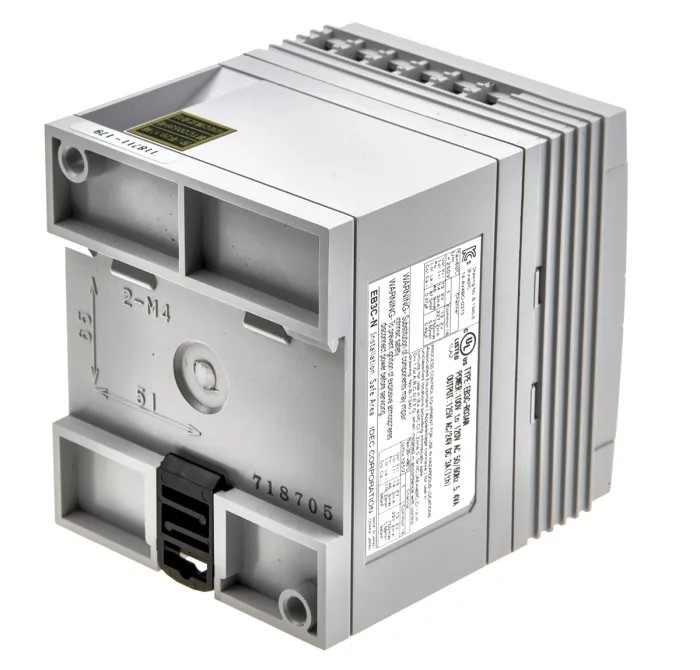

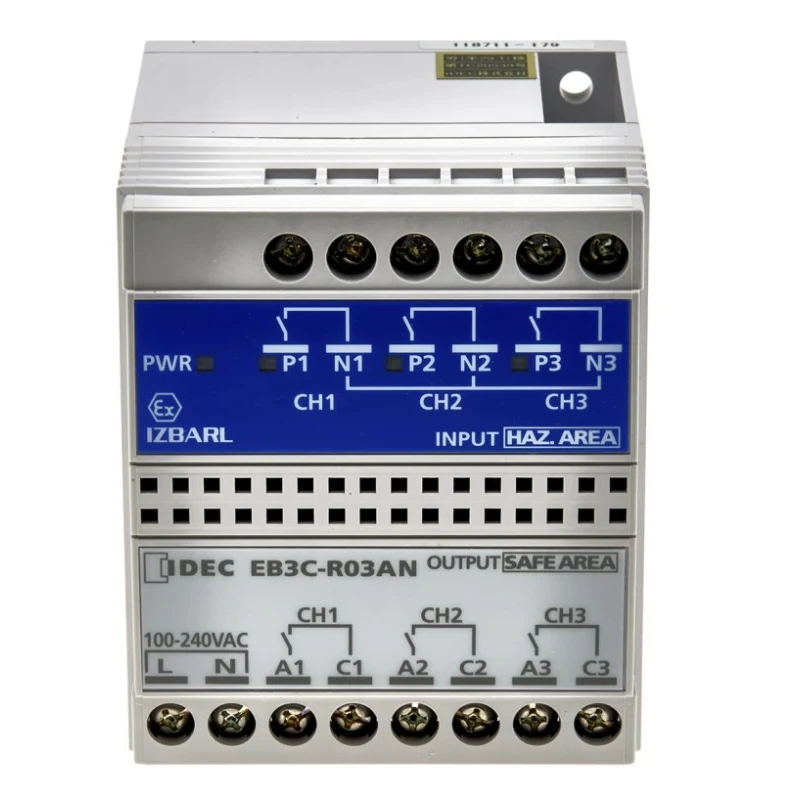

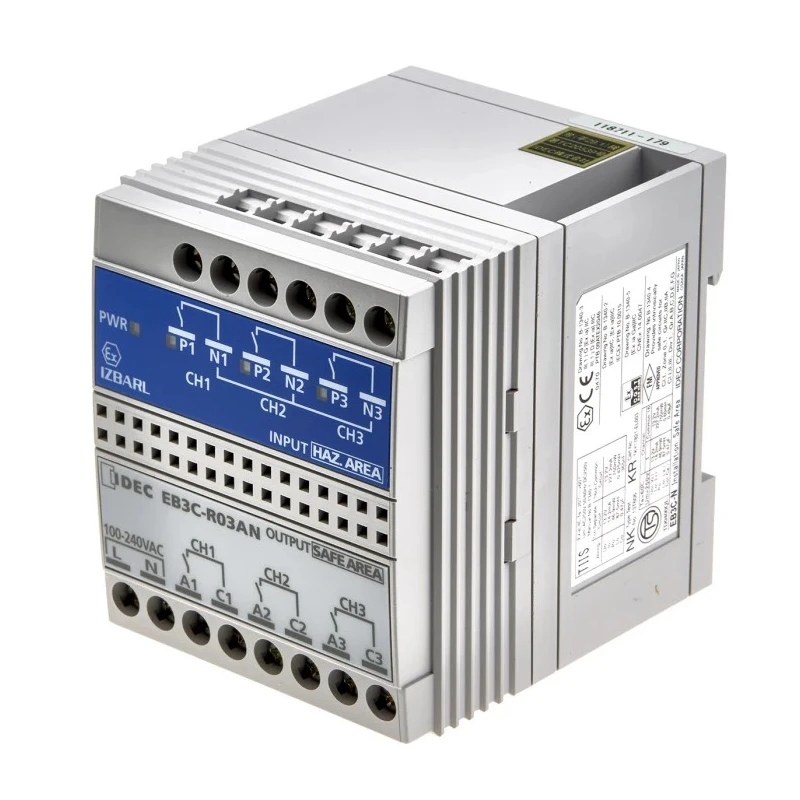

Idec 3 Channel Relay Zener Barrier ATEX Certified, DIN Rail Mount, 100-240V AC, 14.2mA Safety Current EB3C-R03AN

Free Delivery in India | Lowest Global Shipping Charges

Idec 3 Channel Relay Zener Barrier ATEX Certified, DIN Rail Mount, 100-240V AC, 14.2mA Safety Current EB3C-R03AN

Name: Idec 3 Channel Relay Zener Barrier ATEX Certified, DIN Rail Mount, 100-240V AC, 14.2mA Safety Current EB3C-R03AN
Brand: Idec
SKU: 149473
Price: 336.02 USD
Availability: InStock



Category Signal Conditioners & Isolators Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Model	EB3C-R03AN
IP Rating	IP20
Mount Type	DIN Rail
Series	EB3C
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Number Of Channels	3
Supply Voltage	100, 240V ac
Hazardous Area Certification	ATEX
Standards/Approvals	CE, FM, IEC, UL
Barrier Type	Relay Barrier
Safety Current Resistance	300Ω
Maximum Safety Current	14.2mA
Maximum Safety Voltage	250V ac
Pepperl + Fuchs 3 Channel Zener Barrier, ATEXBrand	Pepperl + Fuchs

Key Features

Three channel relay barrier designed for signal conditioning and isolation.
Compatible with supply voltage range from 100 to 240V AC.
Provides maximum safety voltage of 250V AC and safety current of 14.2mA.
Features screw terminal connections and 35mm DIN rail mount installation.
Operating temperature ranges from -20°C to 60°C ensuring versatile deployment.
Certified with CE, FM, IEC, and UL standards for safety and reliability.
IP20 rated enclosure protects internal components against access and foreign objects.
Incorporates a safety current resistance of 300Ω for enhanced protection.

Product Description

Idec EB3C-R03AN is a three channel relay Zener barrier designed for signal conditioning applications in hazardous locations with ATEX certification. It features a DIN rail mount design suitable for industrial control panels requiring reliable isolation barriers.

This Zener barrier supports a supply voltage range from 100 to 240 volts AC, with a maximum safety voltage of 250 volts AC and maximum safety current rating of 14.2 milliamps. It integrates a safety current resistance of 300 ohms and uses screw terminal connections to ensure secure wiring.

Its operating temperature spans from -20°C to 60°C, providing flexibility for varied industrial environments. The component is IP20 rated to protect against solid foreign objects and is certified to meet CE, FM, IEC, and UL standards for safety and electrical compliance.

The device is manufactured in Japan and belongs to the EB3C series by Idec, known for its quality and durability in industrial automation and hazardous area applications. Three channel relay isolation barrier for signal conditioning.

Wide supply voltage range of 100 to 240V AC. Maximum safety current and voltage: 14.2mA and 250V AC respectively. Screw terminal connection and 35mm DIN rail mounting. Operating temperature: -20°C to 60°C. ATEX certified for explosive gas and zone 0/class 1 division 1 use.

Compliance with CE, FM, IEC, and UL certifications. IP20 rated protection for safe operation.

This Idec Zener barrier is ideal for industrial, laboratory, manufacturing, water treatment, and hazardous location automation applications. Its reliable electrical isolation and certification make it suitable for enhancing operator and system safety in explosive atmospheres.
