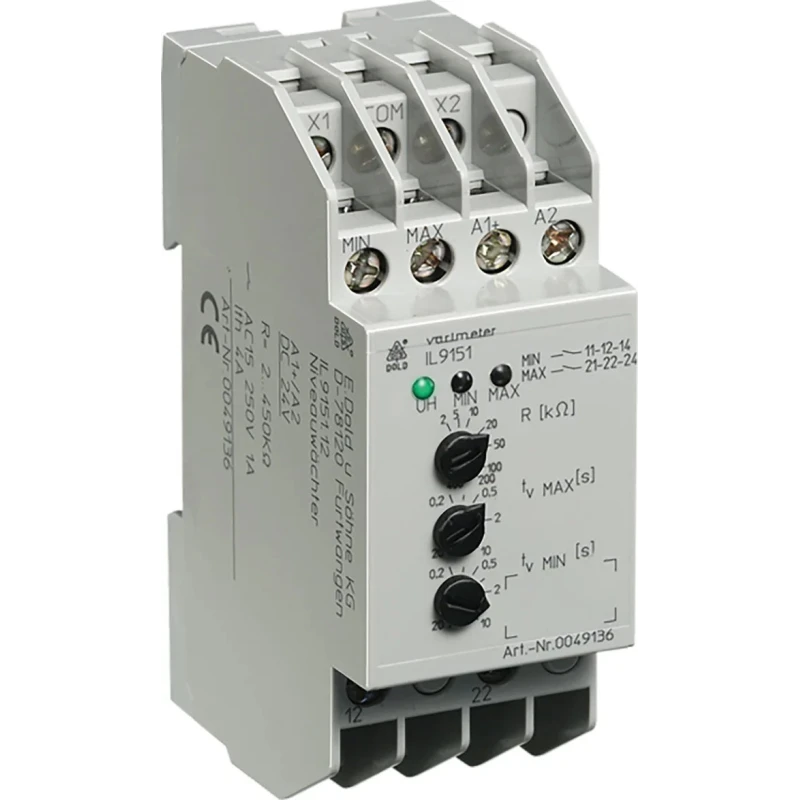

Dold Monitoring Relay 2 CO, DIN Rail Mount, 15mA Sensing, 24 V DC, 230V AC, Time Delay IL9151.12 2-450kOHM AC230V 0.2-20S

Dold IL9151.12 2-450kOHM AC230V 0.2-20S Monitoring Relay features two independently operating changeover contacts suitable for precise level monitoring and control of conductive liquids and powders. Designed for DIN rail mounting, this device effectively monitors maximum and minimum fill levels, protects against overfilling and dry running, and controls mixing ratios in conductive liquids.

Utilizing IEC 255 and VDE 0435 Section 3033 compliant electrode connections, it supports 2-point or 1-point level control with a maximum electrode lead length of 1500 meters. The measuring circuit is galvanically isolated from mains supply, rendering it immune to high interference and external noise.

This monitoring relay offers a wide setting range from 4 to 450 kΩ, enabling differentiation between liquid and foam presence. The response and fallback delays are separately adjustable between 0.2 and 20 seconds for minimum and maximum levels, allowing precise control and reliable operation. It supports programming for two separately controlled output relays or jointly controlled output relays in 2-point hysteresis level control and can be configured for operating or rest current principles.

The internally generated approximate 30 Hz AC voltage for electrode measurement prevents electrolysis within the fluid, ensuring long-term reliability. LEDs indicate the operational readiness and contact positions for easy diagnostics. The device measures 35 mm in width, 59 mm in length, and 90 mm in height, designed for compact industrial installations.

This product is used broadly in industrial, laboratory, manufacturing, agricultural, and water treatment applications for controlling liquid levels, protecting pumps from dry running, detecting liquid leaks, and regulating media mixing ratios. Its CE and CCC certifications underscore compliance with relevant standards.

Compact DIN rail mounting with 35 mm width for easy installation. Two separately operating changeover output relays configurable for multiple level control schemes. Adjustable time delay from 0.2 to 20 seconds for both response and fallback.

Galvanically isolated measuring circuit immune to electrical interference. Max electrode lead length up to 1500 meters offers flexible installation. LED indicators for operational status and relay contact position. Designed to prevent electrolysis using internally generated AC voltage at 30 Hz.

Set contains one Dold IL9151 level relay unit. Ideal for industrial automation, process control, and liquid level monitoring systems. For more products, browse our Monitoring Relays category at EnvMart.
