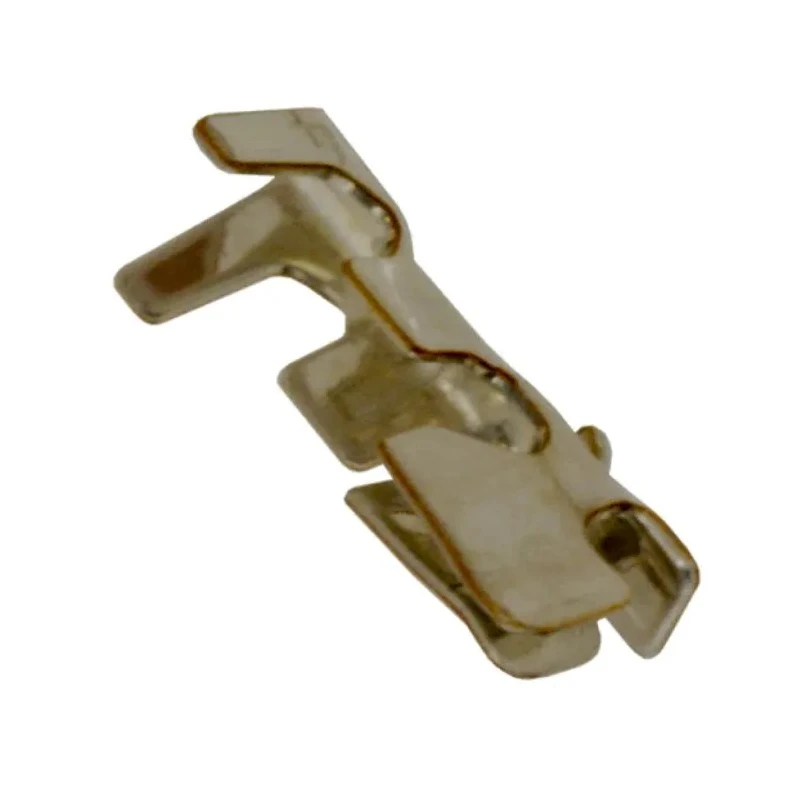

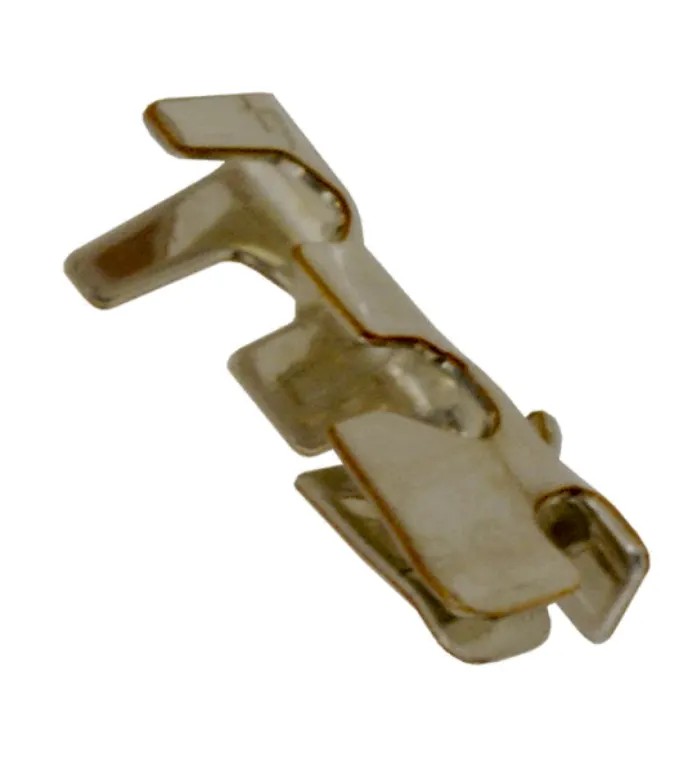

JST SSH Series Male Crimp Terminal, 32 AWG Min Crimp, 28 AWG Max, Tin Plating, Phosphor Bronze Contact SSH-003T-P0.2-H

Free Delivery in India | Lowest Global Shipping Charges

JST SSH Series Male Crimp Terminal, 32 AWG Min Crimp, 28 AWG Max, Tin Plating, Phosphor Bronze Contact SSH-003T-P0.2-H



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Current	1A
Model	SSH-003T-P0.2-H
Gender	Male
Contact Material	Phosphor Bronze
Series	SSH
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	LBT and SH Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.032mm²
Maximum Wire Size mm²	0.08mm²
Minimum Wire Size AWG	32AWG
Maximum Wire Size AWG	28AWG
Maximum Contact Resistance	40mΩ

Key Features

Constructed with phosphor bronze for durability and conductivity.
Operates reliably within -25°C to 85°C temperature range.
Rated for 1 ampere current carrying capacity.

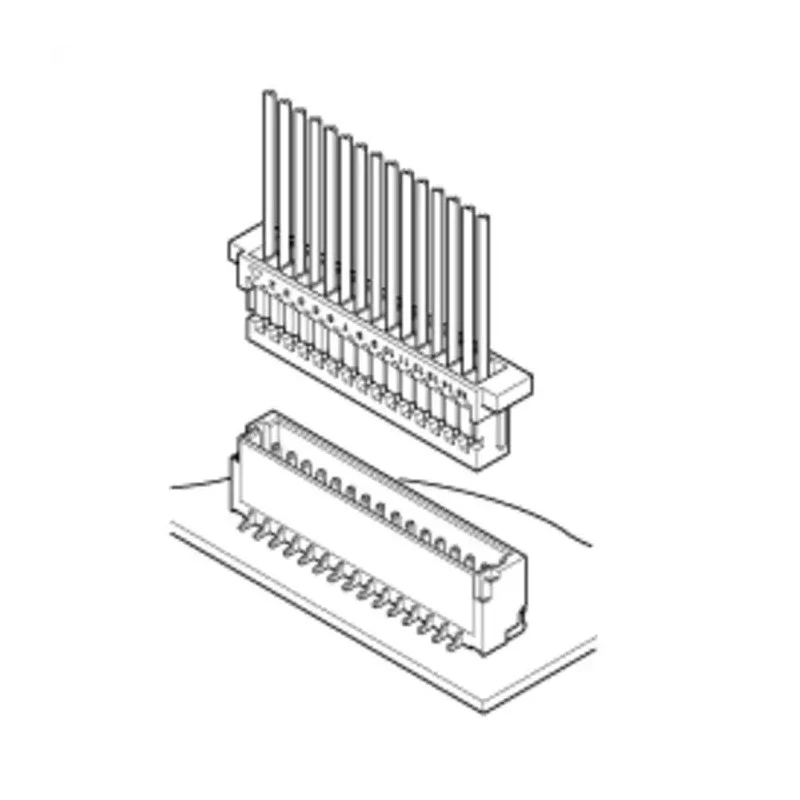

Designed for use with LBT and SH connector housings.
Features tin plating for corrosion resistance.
Compact 1.0 mm pitch crimp style ensures tight connections.
Male gender contact suitable for PCB connectors and wire housings.
Maximum contact resistance of 40 milliohms for efficient electrical performance.

Product Description

JST SSH-003T-P0.2-H male crimp terminal is engineered for precision and reliability in electronics and industrial applications, tailored for wire sizes from 32 AWG minimum to 28 AWG maximum. This connector terminal is constructed with phosphor bronze contact material, known for excellent electrical conductivity and mechanical strength, enhanced by tin plating to resist corrosion and wear.

Designed as part of the SSH series, this terminal supports a current rating of 1 ampere and stable operation across a temperature range from -25°C to 85°C. The compact design features a 1.0 mm pitch, optimized for use with LBT and SH connector housings, providing secure and low-profile electrical connections in electronic components, power connectors, and PCB assemblies.

Its male gender configuration makes it compatible with a broad range of connectors and wire housings, ideal for assembly tasks requiring dependable crimp terminations. Additionally, the terminal's maximum contact resistance of 40 milliohms ensures minimal electrical loss, making it suitable for sensitive electronic circuits and industrial equipment wiring.

This product is manufactured in Japan under strict quality controls to meet demanding performance standards. The terminal's durable build and precise specifications make it an excellent choice for electrical engineers and technicians in fields such as industrial automation, manufacturing, and electronic device assembly.

Constructed with phosphor bronze for durability and conductivity. Operates reliably within -25°C to 85°C temperature range. Rated for 1 ampere current carrying capacity. Designed for use with LBT and SH connector housings.

Features tin plating for corrosion resistance. Compact 1.0 mm pitch crimp style ensures tight connections. Male gender contact suitable for PCB connectors and wire housings. Maximum contact resistance of 40 milliohms for efficient electrical performance.

This JST crimp terminal range is widely used in electronics manufacturing, power applications, and industrial wiring. Browse the Electronics & Electricals category for more connector and terminal solutions at EnvMart.
