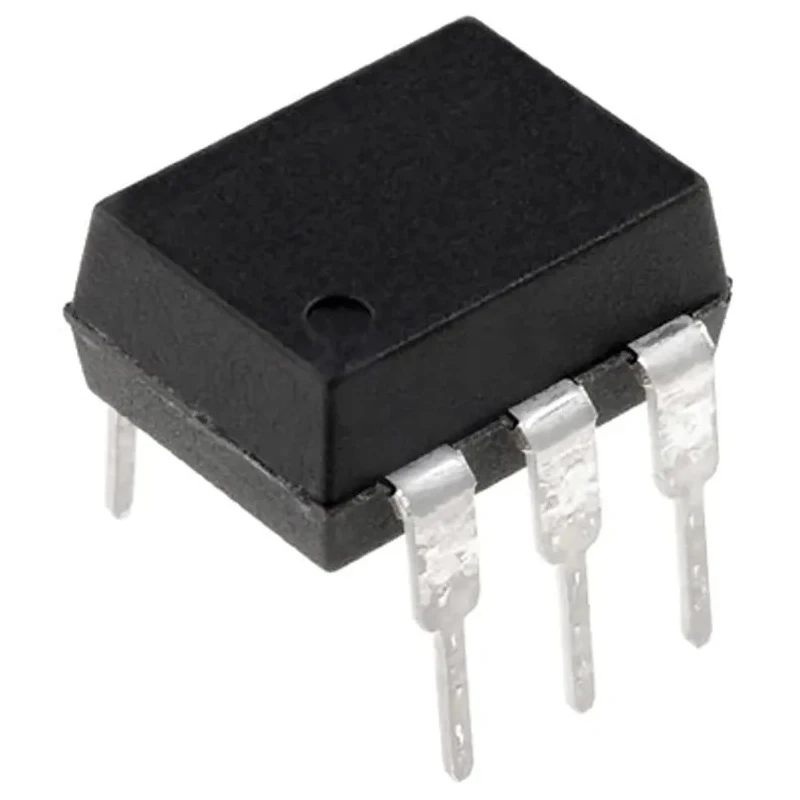

Isocom AC Input Optocoupler Through Hole 6-Pin DIP MOC3020

Isocom MOC3020 is an AC input optocoupler designed to provide electrical isolation between high voltage AC input and low voltage control circuits. Featuring a gallium arsenide infrared LED coupled with a light-activated silicon bilateral switch, this device performs the function of a triac output switch. The 6-pin DIP through hole package enables easy and reliable PCB mounting.

This optocoupler offers a high isolation voltage rating of 5300 Vrms and a peak blocking voltage of 400 V, making it suitable for industrial, consumer appliance, and motor control applications. Its input current is AC type, with a maximum rating of 50 mA, accommodating a range of control circuit designs. The component operates across a wide temperature range from -40°C to 100°C, ensuring dependable performance in diverse environments.

The device is tested for all electrical parameters to guarantee consistent quality and reliability. It also adheres to various industry standards including CECC 00802, VDE 0884, and UL certifications. The MOC3020 is packaged in tape and reel format to facilitate automated assembly processes in manufacturing environments.

Applications for the Isocom MOC3020 include driving power triacs in CRT displays, motor control circuits, printers, and a variety of consumer appliances. The triac output functionality enables effective switching of AC loads with electrical isolation, enhancing safety and circuit protection.

The optocoupler uses an infrared LED and silicon bilateral switch for isolation and triac output. High isolation voltage of 5300 Vrms ensures operator and circuit safety. Operating temperature range from -40°C to 100°C supports industrial and commercial use.

Compliant with CECC 00802, VDE 0884, and UL standards for assured reliability. 6-pin dual in-line package allows through hole mounting on PCBs. Maximum forward voltage of 1.5 V and maximum input current of 50 mA AC. Tape & reel packaging suits automated production lines.

Ideal for power triac drivers in motors, printers, and consumer appliances. Manufactured in Thailand under stringent quality controls. Explore further options for Optocouplers and related electronic components in EnvMart for industrial and commercial applications.
