HARTING D-Sub 25 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector with Flange Female 09670254707

Free Delivery in India | Lowest Global Shipping Charges

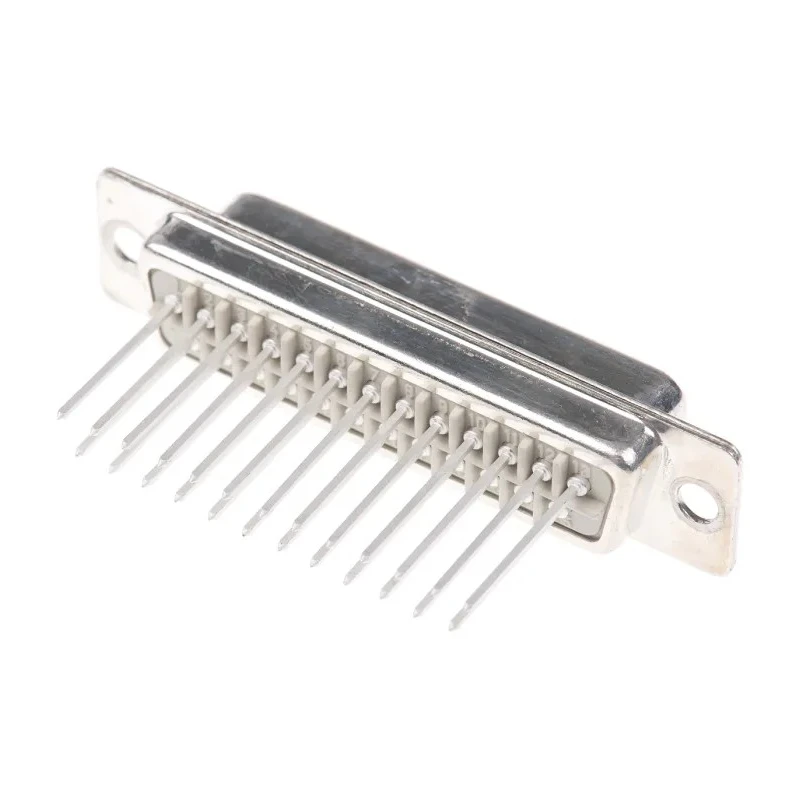

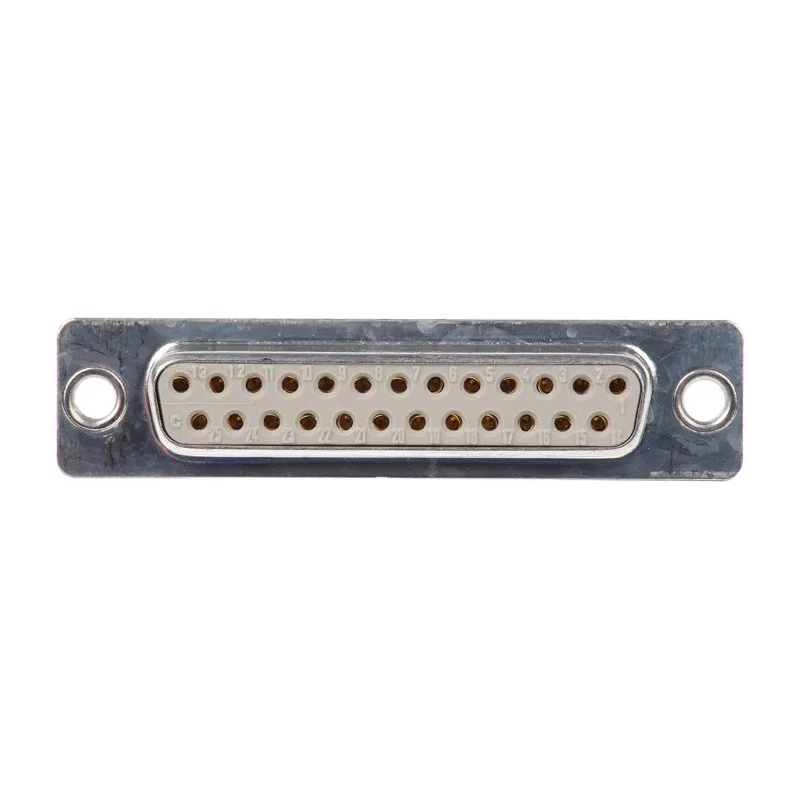

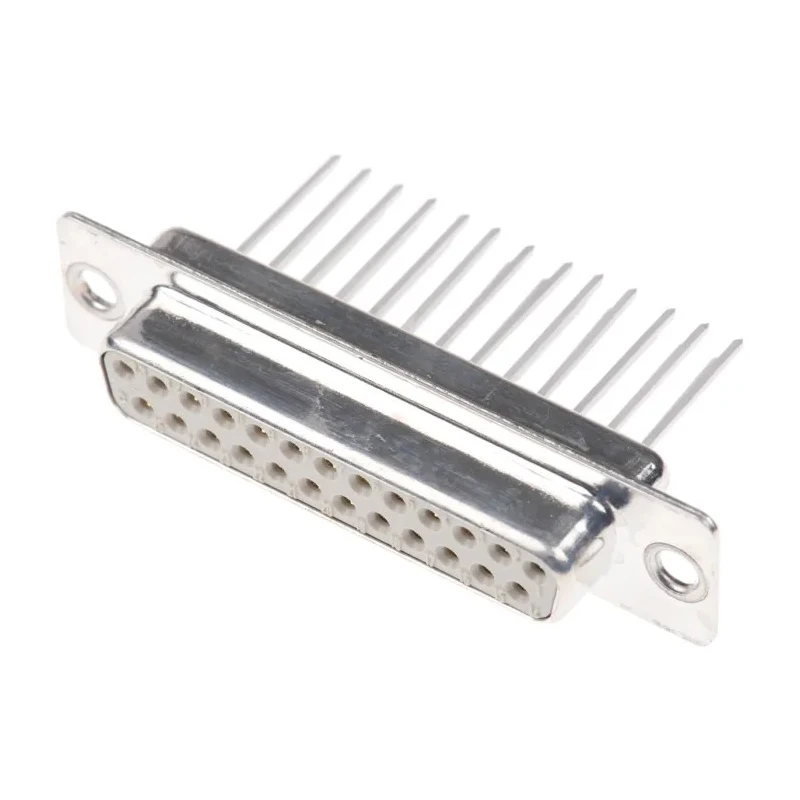

HARTING D-Sub 25 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector with Flange Female 09670254707

Name: HARTING D-Sub 25 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector with Flange Female 09670254707
Brand: HARTING
SKU: 148046
Price: 25.14 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	1000V
Brand	HARTING
Orientation	Straight
Current	7.5A
Mount Type	Panel Mount
Contact Material	Copper Alloy
Series	D-Sub
Mounting Hardware	Flange
Termination Type	Wire Wrap
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.76mm
Standards/Approvals	UL Recognised, UL 94-V0, RoHS
Number of Contacts	25
Contact Gender	Female
Connector Gender	Female
Connector Type D	Standard
D-Sub Shell Size	D

Key Features

Connector supports 25 contacts with a pitch of 2.76 mm.
Designed for panel mount applications with flange mounting hardware for secure fit.
Handles current up to 7.5 amperes and voltage rating of 1000 volts.
Features female connector gender with wire wrap termination type.
Operating temperature range from -55°C to 125°C ensuring durability in harsh environments.
Constructed using copper alloy contact material for reliable electrical conductivity.
Meets UL recognised, UL 94-V0, and RoHS compliance standards.
Conforms to MIL-C-24308, DIN 41652, and CECC 75301-802 specifications.

Product Description

HARTING 09670254707 D-Sub Connector is a high-quality panel mount connector designed for electronic and power connector applications requiring 25 way connections with a straight orientation. It features a 2.76 mm pitch between contacts and female gender with flange mounting for secure installation.

Constructed with copper alloy contacts, this connector supports currents up to 7.5A and voltages as high as 1000V, making it suitable for demanding industrial, manufacturing, and electrical systems.

Its rugged design supports operation from minus 55 degrees Celsius to 125 degrees Celsius, ensuring reliable performance in harsh environmental conditions. The wire wrap termination type simplifies wiring and maintenance.

This product complies with recognised industry standards including UL Recognised, UL 94-V0 fire safety rating, and RoHS directives to ensure safety and environmental compliance. Ideal for use in industrial electronics assemblies, power distribution units, automotive, and aerospace applications requiring precise and durable connection interfaces.

Connector supports 25 contacts with a pitch of 2.76 mm. Panel mount flange hardware provides easy and robust mounting. Wire wrap termination ensures secure and maintainable wiring. Copper alloy contacts offer excellent electrical conductivity and corrosion resistance.

Compliant with MIL, DIN, CECC, UL, and RoHS standards for quality and safety. Wide operating temperature from -55°C to 125°C for reliability. Suitable for industrial, laboratory, manufacturing, and electrical power applications.

Set includes one panel mount D-Sub Connector with flange and female contacts as per model 09670254707. Explore further in EnvMart's Electronics & Electrical category for compatible connectors and accessories.
