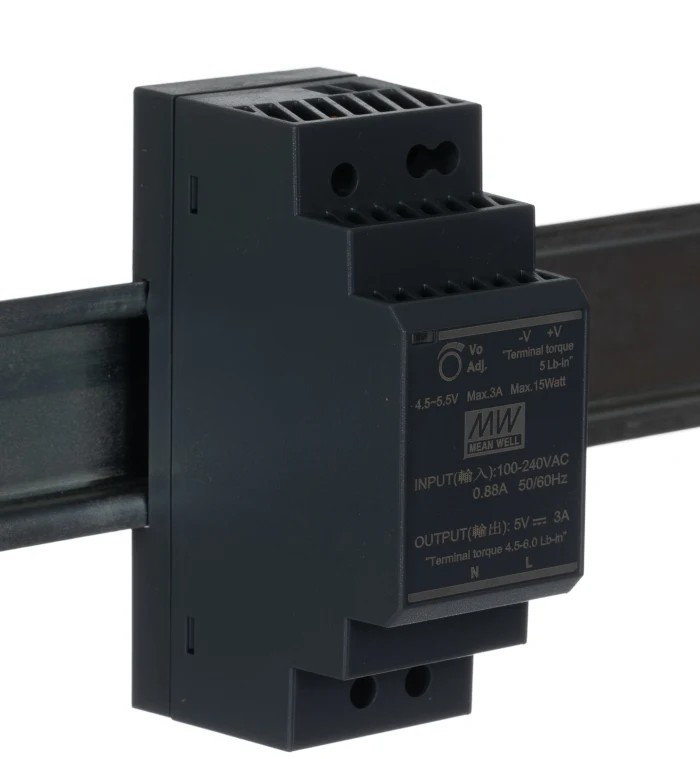

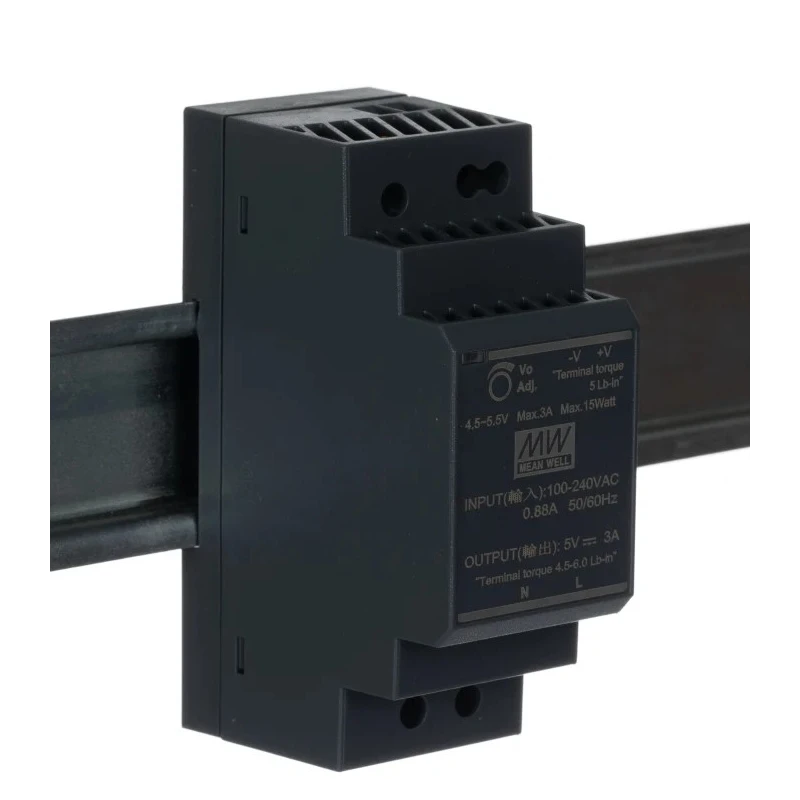

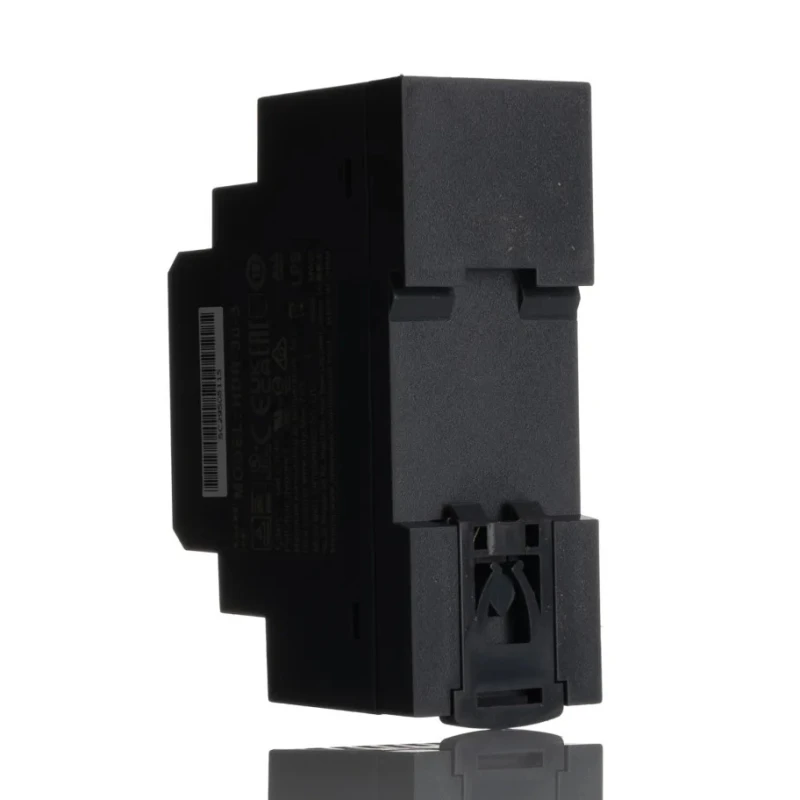

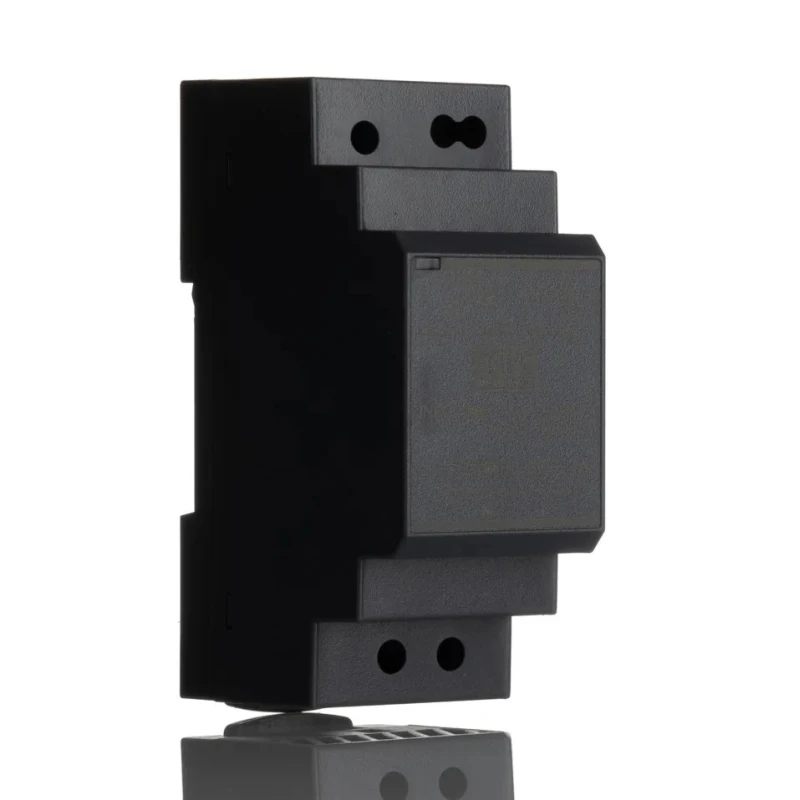

MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply 264V AC/370V DC Input, 5V DC Output, 3A, 15W HDR-30-5

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply 264V AC/370V DC Input, 5V DC Output, 3A, 15W HDR-30-5

Name: MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply 264V AC/370V DC Input, 5V DC Output, 3A, 15W HDR-30-5
Brand: MEAN WELL
SKU: 147116



Category DIN Rail Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	15W
Efficiency	82%
Height	90mm
Model	HDR-30-5
Depth	54.5mm
Width	35mm
Series	Ultra Slim
Output Current	3A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Electrical Phase	1
Standards/Approvals	UL, RoHS, TUV EN 609501
Maximum Output Voltage	5V dc
Minimum Input Voltage	85V ac

Key Features

Compact ultra slim design saves space in electrical cabinets.
Supports wide input voltage range from 85V AC to 370V DC.
Single output channel with stable 5V DC output voltage.
Operating temperature range from -30°C to 70°C for diverse environments.
High efficiency of 82% reduces energy losses.
Plastic housing with stepped shape for enhanced electrical safety.
Compatible with TS-35/7.5 or TS-35/15 industrial DIN rails for easy mounting.
Meets UL, RoHS, and TUV EN 60950-1 standards ensuring quality and compliance.

Product Description

MEAN WELL HDR-30-5 is an ultra slim switched mode DIN Rail Power Supply designed for industrial electronic applications. It provides a regulated 5V DC output at 3A with a maximum power of 15W, powered by an AC/DC input that supports 85V AC minimum up to 370V DC maximum. The compact design with a width of only 35mm and stepped shape plastic housing allows space-saving installation inside electrical control panels while ensuring electrical hazard protection.

This power supply operates efficiently with up to 82% efficiency and can operate reliably in a wide ambient temperature range from -30°C to 70°C. Its compatibility with standard TS-35 DIN rails (both 7.5mm and 15mm) facilitates simple and secure mounting in industrial environments.

The HDR-30-5 is built to comply with key safety standards such as UL certification, RoHS compliance, and TUV EN 60950-1, which guarantees safety and environmental acceptance. It features a single output, DC voltage adjustable, and low no-load power consumption to minimize overall energy usage.

Key features include effective isolation (Class II), suitable for demanding industrial, manufacturing, automation, and instrumentation use cases where a reliable 5V DC supply is required. Its power output specifications and slim form factor make it ideal for control cabinets and embedded power supply applications.

Compact ultra slim design saves space in electrical cabinets. Supports wide input voltage range from 85V AC to 370V DC. Single output channel with stable 5V DC output voltage. Operating temperature range from -30°C to 70°C for diverse environments.

High efficiency of 82% reduces energy losses. Plastic housing with stepped shape for enhanced electrical safety. Compatible with TS-35/7.5 or TS-35/15 industrial DIN rails for easy mounting. Meets UL, RoHS, and TUV EN 60950-1 standards ensuring quality and compliance.

Low no-load power consumption supports energy saving. Product origin: China.

This DIN Rail power supply series from MEAN WELL is widely used in industrial control, automation, instrumentation, HVAC, and electronic system powering needs. The ultra slim design facilitates equipment integration with space constraints.
