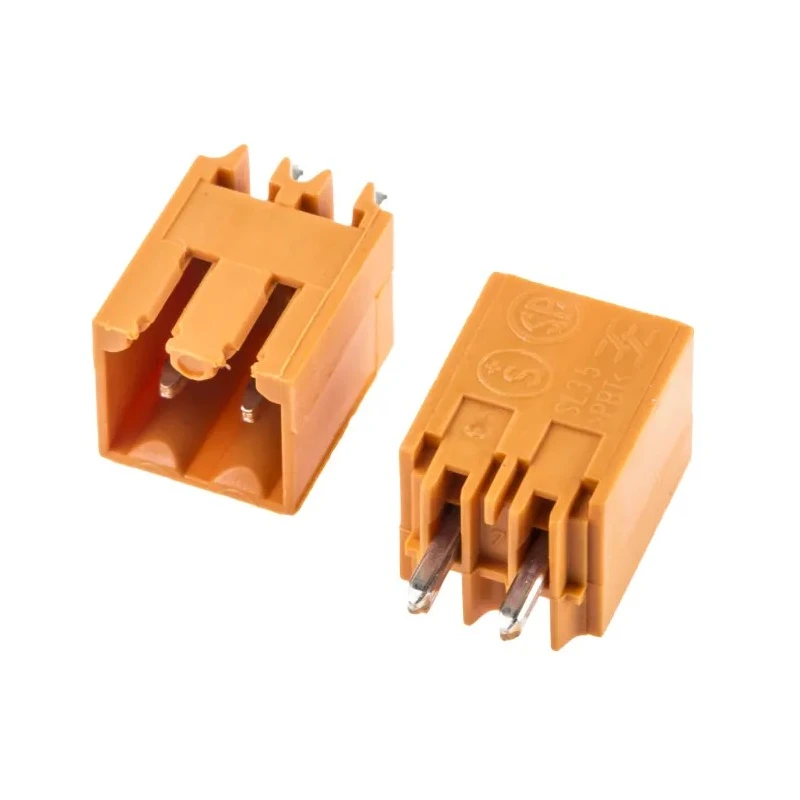

Weidmüller OMNIMATE SL Series Pluggable Terminal Block 2-Contact 3.5 mm Pitch 1 Row 320V 17A Polybutylene 1604470000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | Straight |
| Current | 17A |
| Length | 3.2mm |
| Depth | 7.5mm |
| Width | 8.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | OMNIMATE SL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Solder |
Key Features
- Supports a current rating of 17A for efficient power handling.
- Features a voltage rating of 320V suitable for industrial use.
- Constructed with durable polybutylene terephthalate housing for enhanced insulation.
- Designed with a male connector orientation and straight wire connection method using solder.
- Compatible with wire sizes ranging from 28AWG to 16AWG for versatile connectivity.
- The compact dimensions include a width of 8.4 mm, depth of 7.5 mm, and length of 3.2 mm.
- The orange color coding helps quick identification in complex assemblies.
- Manufactured in Germany ensuring high-quality standards and reliability.
Product Description
Weidmüller 1604470000 is a pluggable terminal block from the OMNIMATE SL series designed for electronic component applications requiring reliable connections. This 2-contact terminal block features a 3.5 mm pitch and a single-row configuration that is ideal for compact PCB installations, maximizing space efficiency.
The housing is made from polybutylene terephthalate, which provides excellent electrical insulation and mechanical stability under various environmental conditions. Rated for 17A current and 320V voltage, this terminal block is suitable for industrial and manufacturing settings, including automation equipment and power distribution blocks.

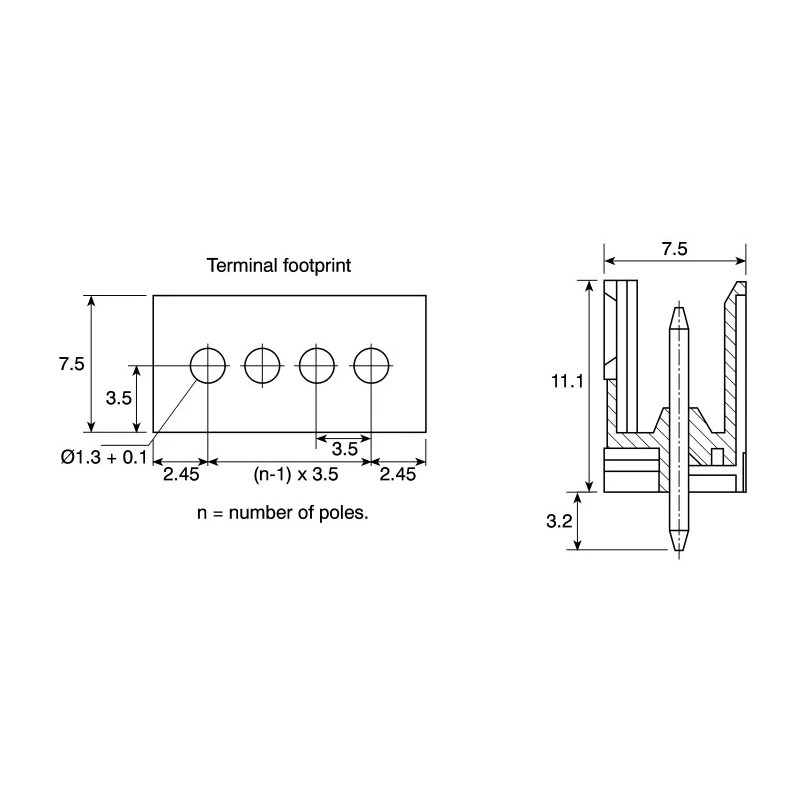

Its male connector gender with a straight wire connection method via soldering ensures secure and consistent electrical contact, compatible with wire gauges from 28AWG to 16AWG. The terminal block's compact size with dimensions 8.4 mm width, 7.5 mm depth, and 3.2 mm length facilitates installation in dense PCB layouts.
Supports 17A current rating appropriate for medium power applications. 320V electrical rating for safe operation in a variety of systems. Robust polybutylene terephthalate housing for durability and insulation. Male connector orientation designed for straightforward installation.
Wire connection via solder method for secure and reliable contact. Compatible with a wide range of wire sizes from 28AWG to 16AWG. Compact physical dimensions optimized for space-saving. Orange color for easy identification and compliance with wiring standards.
Manufactured in Germany ensuring quality and performance compliance.
This Pluggable Terminal Block is widely used in industrial, electrical equipment manufacturing, and laboratory instrumentation where reliable and maintainable PCB connections are critical.
Ideal for applications in power electronics, control systems, and other electronic assemblies requiring modular and serviceable wiring connections. Explore the Weidmüller range for compatible connectors and accessories to complete your electrical installation with dependable components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 17A, making it suitable for medium power applications.
It has a voltage rating of 320V, which is appropriate for industrial use.
This terminal block is compatible with wire sizes ranging from 28AWG to 16AWG, allowing for versatile connectivity.
The compact dimensions of this model are 8.4 mm in width, 7.5 mm in depth, and 3.2 mm in length.
The housing is constructed from polybutylene terephthalate, which provides excellent electrical insulation and mechanical stability.
The wire connection method used is solder, ensuring secure and reliable electrical contact.
This model features a male connector orientation designed for straightforward installation.
It has 2 contacts, making it suitable for various electrical applications.
This terminal block is part of the Weidmüller OMNIMATE SL series, designed for electronic component applications.
It is manufactured in Germany, ensuring high-quality standards and reliability.
The pitch of this terminal block is 3.5 mm, which is ideal for compact PCB installations.
This model is widely used in industrial, electrical equipment manufacturing, and laboratory instrumentation where reliable PCB connections are critical.
