TDK 22 pF Multilayer Ceramic Capacitor, 25V dc, ±5 % Tolerance, Surface Mount CGA1A2C0G1E220J030BA

Free Delivery in India | Lowest Global Shipping Charges

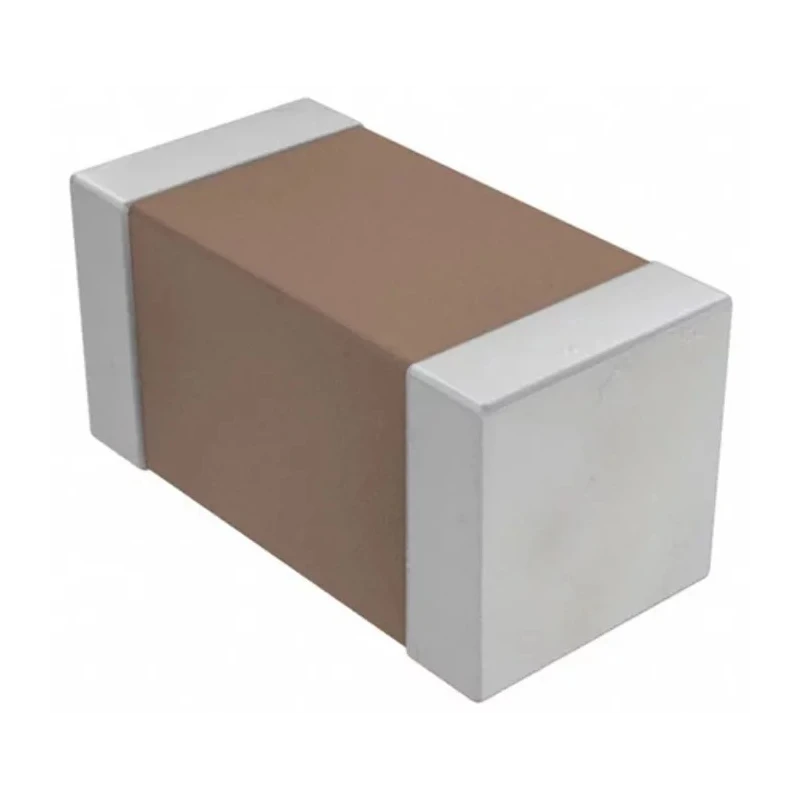

TDK 22 pF Multilayer Ceramic Capacitor, 25V dc, ±5 % Tolerance, Surface Mount CGA1A2C0G1E220J030BA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	25V dc
Brand	TDK
Height	0.3mm
Length	0.6mm
Model	CGA1A2C0G1E220J030BA
Packaging	Tape & Reel
Width	0.3mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	22pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Capacitance value of 22 pF ensures precise performance in circuits.
Surface mount package type 0603 facilitates automated PCB assembly.
C0G dielectric offers excellent temperature stability and low losses.
Meets automotive standard AEC-Q200 ensuring reliability in harsh environments.
Compact dimensions of 0.6mm length, 0.3mm width, and 0.3mm height.
Operates reliably across temperature range from -55°C to 125°C.
Solder termination allows strong attachment to PCB pads.
Packaging by tape & reel supports volume manufacturing processes.

Product Description

TDK CGA1A2C0G1E220J030BA multilayer ceramic capacitor is a precision passive electronic component designed for surface mount technology (SMT). This capacitor features a capacitance of 22 pF with a rated voltage of 25V DC and a tight tolerance of ±5%, making it suitable for applications demanding stable and accurate capacitance values.

Constructed using multiple thin ceramic dielectric layers with C0G dielectric material, this Class I capacitor offers excellent thermal stability, very low dielectric losses, and minimal capacitance change over temperature variations. These characteristics make it ideal for frequency-sensitive and timing circuits.

Certified to the AEC-Q200 automotive standard, this component ensures dependable operation in automotive environments, including engine control units, sensor modules, and battery line smoothing applications. Its compact 0603 package size (0.6mm x 0.3mm x 0.3mm) supports high-density PCB layouts and automated assembly via tape and reel packaging.

The capacitor withstands operating temperatures from -55°C to 125°C and features solder termination for secure PCB mounting. It is manufactured in Japan to rigorous quality standards, assuring long-term reliability and consistent electrical performance.

22 pF capacitance with ±5% tolerance for precision circuits. 25V DC voltage rating for low voltage electronic uses. Compact 0603 surface mount package for space-constrained designs. C0G dielectric provides excellent stability and low losses.

AEC-Q200 automotive qualification ensures high reliability. Operating temperature from -55°C to 125°C supports harsh environments. Solder terminations guarantee strong PCB connections. Tape and reel packaging streamlines automated assembly.

Manufactured in Japan with premium quality controls.

This Multilayer Ceramic Capacitor is suitable for automotive, industrial, and consumer electronics, including telecommunications, instrumentation, and power smoothing applications. Explore more TDK electronic components and accessories at EnvMart for reliable industrial-grade performance.
