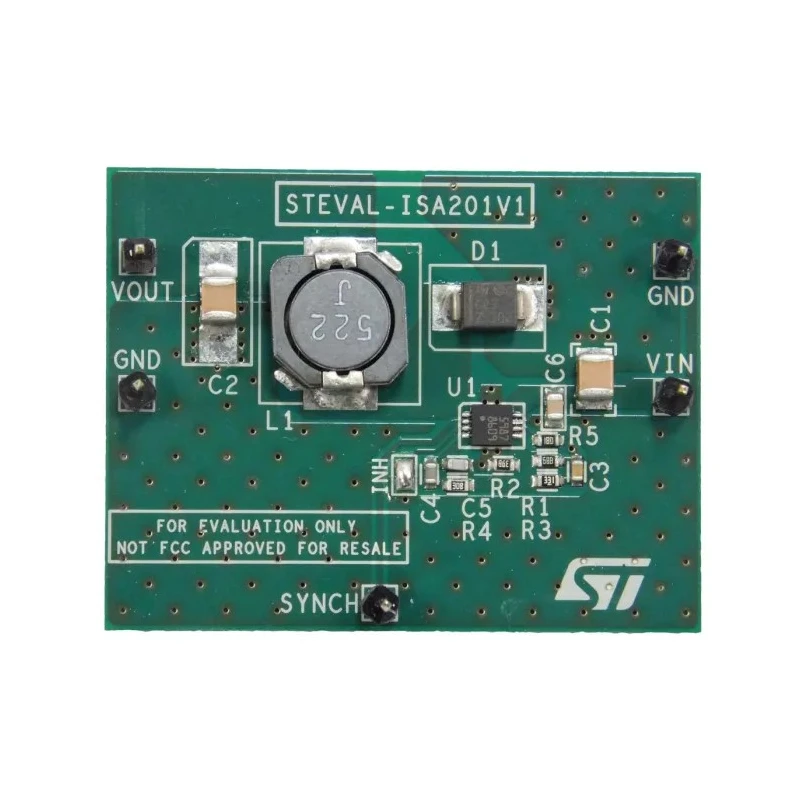

STMicroelectronics Evaluation Board DC-DC Converter for L5987 STEVAL-ISA201V1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ISA201V1 |
| Kit Classification | Evaluation Board |
| Featured Device | L5987 |
| Kit Name | Evaluation Board |
Key Features
- Input voltage range from +2.9V to +18V DC ensures broad compatibility.
- Output voltage adjustable starting at +0.6V with default set at +1.8V.
- Maximum output current rating of 3A supports moderate power applications.
- Switching frequency adjustable between 250kHz to 1MHz with default at 430kHz.
- Zero-load current operation optimizes energy efficiency during idle periods.
- Low dropout operation achieves 100% duty cycle performance.
- Integrated internal soft-start and inhibit functions for controlled startup.
- Built-in overcurrent and thermal protection enhance reliability and safety.
Product Description
STMicroelectronics STEVAL-ISA201V1 Evaluation Board is an advanced DC-DC converter platform based on the L5987 step-down converter IC. This evaluation board supports input voltages from 2.9 to 18 V DC and offers an adjustable output voltage starting as low as 0.6 V, with the default assembled output voltage set to 1.8 V. It is engineered for power management applications requiring efficient voltage regulation and moderate current delivery up to 3 Amps.
The switching frequency of the board can be tailored from 250 kHz up to 1 MHz, with a factory default of 430 kHz, enabling optimization between efficiency and component size. The device features zero-load current operation to minimize power wastage during standby periods and supports low dropout operation, providing a continuous 100% duty cycle when required.
Additional integrated functionalities include an internal soft-start mechanism for gradual power ramp-up, an inhibit input for easy enable/disable controls, and comprehensive protections against overcurrent and overheating conditions, thereby ensuring robust operation and longevity of connected systems.
This evaluation board is suitable for industrial, laboratory, development, and power management design applications where reliable DC-DC conversion is essential. The board facilitates rapid prototyping and performance testing of the L5987 converter chip technology.
Input voltage range: +2.9V to +18V DC. Adjustable output voltage starting at +0.6V (default +1.8V). Maximum output current: 3A. Switching frequency adjustable from 250 kHz to 1 MHz (default 430 kHz). Zero-load current operation for energy savings.
Low dropout operation with 100% duty cycle capability. Internal soft-start and inhibit functionality. Overcurrent and thermal protection ensure system safety. Explore the full range of power management and DC-DC Converter development tools to enhance your electronic design projects and power supply efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the STEVAL-ISA201V1 evaluation board is from +2.9V to +18V DC.
This model has a maximum output current rating of 3A, suitable for moderate power applications.
The output voltage is adjustable starting from +0.6V, with the default set at +1.8V.
The switching frequency can be adjusted between 250 kHz and 1 MHz, with a factory default of 430 kHz.
Yes, it features zero-load current operation to optimize energy efficiency during idle periods.
It includes built-in overcurrent and thermal protection to enhance reliability and safety during operation.
Yes, the evaluation board has an internal soft-start mechanism for controlled startup.
This evaluation board is suitable for industrial, laboratory, development, and power management design applications.
The country of origin for the STEVAL-ISA201V1 evaluation board is India.
Low dropout operation allows for 100% duty cycle performance, ensuring continuous output even at low input voltages.
The inhibit function allows for easy enable/disable controls, providing flexibility in operation.
The featured device on this evaluation board is the L5987 step-down converter IC.
