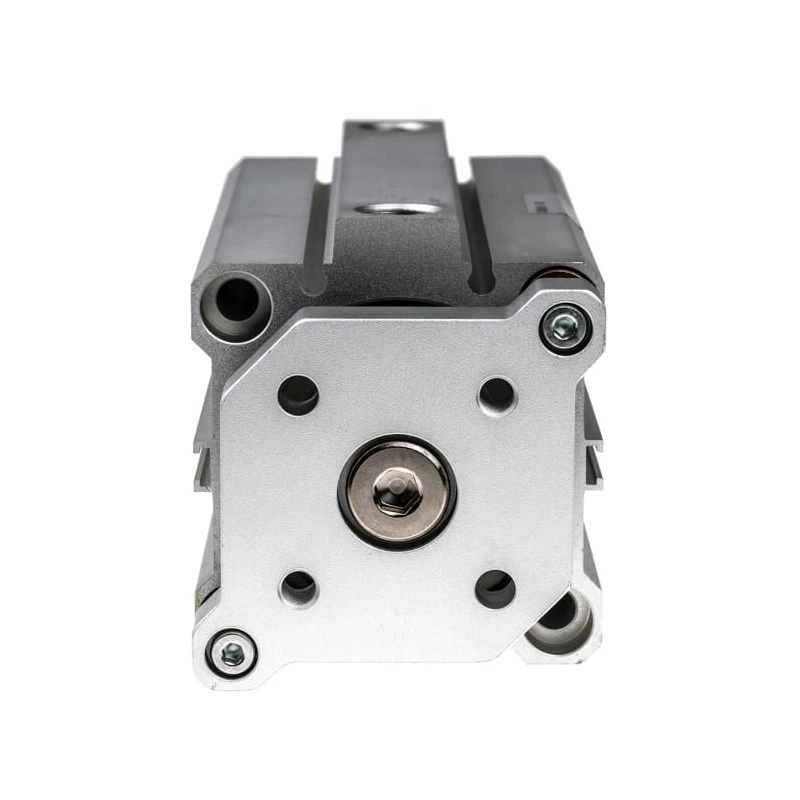

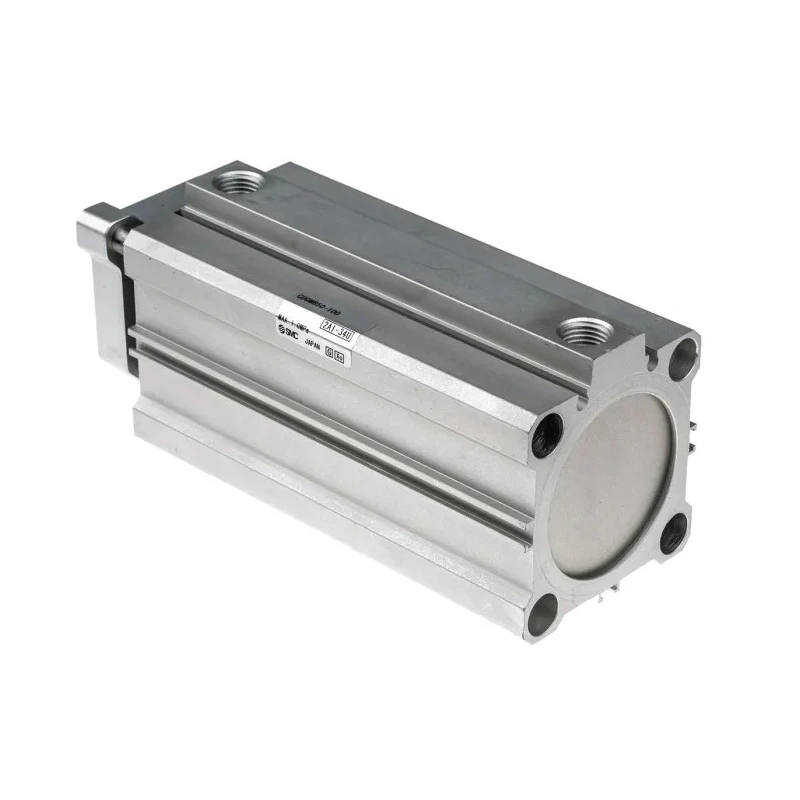

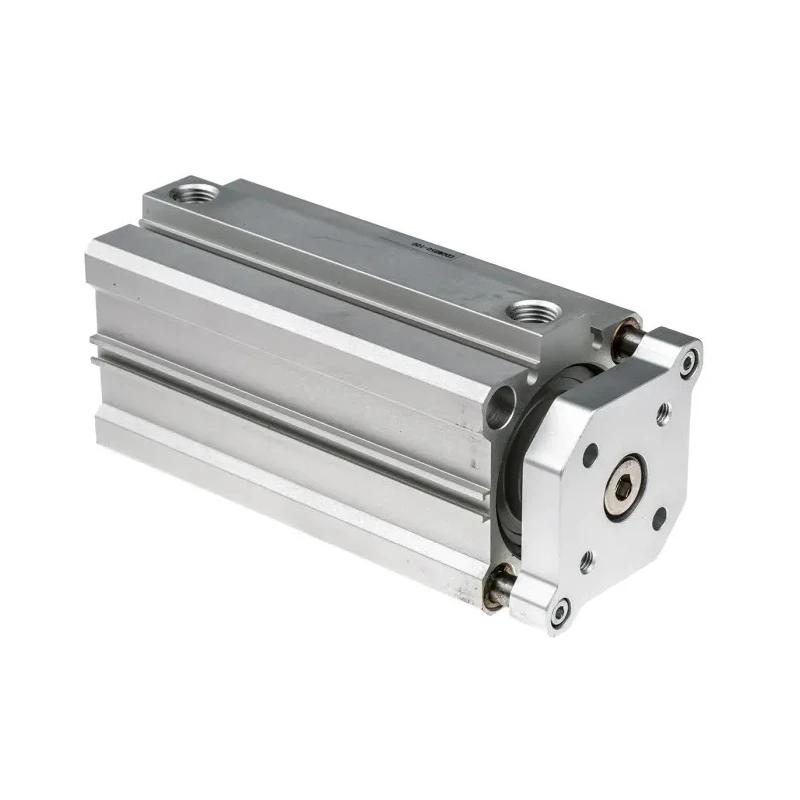

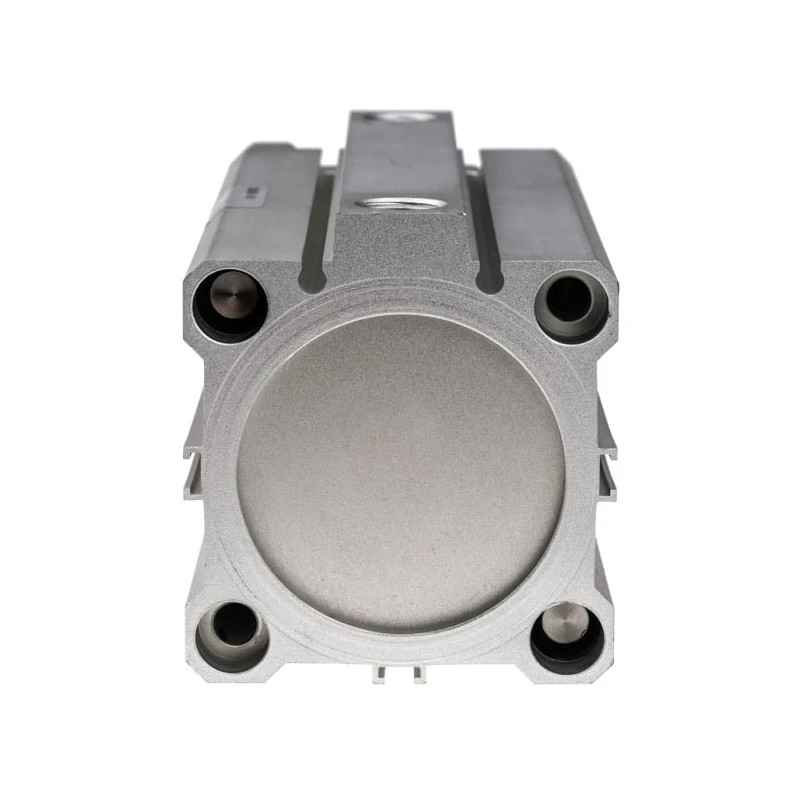

SMC Pneumatic Guided Cylinder 50mm Bore Double Acting 100mm Stroke CQM Series CDQMB50-100

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Guided Cylinder 50mm Bore Double Acting 100mm Stroke CQM Series CDQMB50-100



Category Pneumatic Guided Cylinder Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Height	64mm
Length	160.5mm
Model	CDQMB50-100
Gross Weight	1.3kg
Width	80mm
Mount Type	Through Hole
Series	CQM
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	100mm
Bore Diameter	50mm
Rod Type	Single
Action Type	Double Acting
Cushioning Type	Rubber
Guide Type	Slide Bearing

Key Features

Compact guided cylinder offering high lateral load resistance and stability.
Double acting with magnetic piston for precise control and durability.
Aluminium alloy hard anodized body ensures lightweight and corrosion resistance.
Through hole mounting type compatible with SMC CQS and CQ2 series cylinders.
Rubber cushioning type for smooth operation and noise reduction.
Slide bearing guide type supporting direct loads and preventing rotation.
Operating temperature range from -10°C to 70°C allows versatile industrial usage.
Maximum operating pressure of 1 Mpa and piston speed up to 500 mm/s.

Product Description

SMC CDQMB50-100 Pneumatic Guided Cylinder is a robust industrial pneumatic actuator designed for applications requiring guided motion and enhanced stability. Featuring a 50mm bore diameter and 100mm stroke, this double acting cylinder includes a magnetic piston standard to improve position sensing and operational precision.

The cylinder body is made of hard anodized aluminium alloy, providing corrosion resistance and lightweight construction, suitable for various industrial environments including manufacturing and automation systems.

This model employs a slide bearing guide type that resists lateral loads two to four times greater than standard SMC CQ series cylinders, ensuring non-rotational motion and increased longevity under direct loads. The through hole mount type facilitates easy installation and compatibility with related SMC series cylinders such as CQS and CQ2.

Designed to operate within a temperature range from -10°C to 70°C and a maximum operating pressure of 1 Mpa, it supports a maximum piston speed of 500 mm/s. Rubber cushions improve cushioning action, reducing noise and wear during operation.

Compact guided cylinder offering high lateral load resistance and stability. Double acting with magnetic piston for precise control and durability. Aluminium alloy hard anodized body ensures lightweight and corrosion resistance.

Through hole mounting type compatible with SMC CQS and CQ2 series cylinders. Rubber cushioning type for smooth operation and noise reduction. Slide bearing guide type supporting direct loads and preventing rotation. Operating temperature range from -10°C to 70°C allows versatile industrial usage.

Maximum operating pressure of 1 Mpa and piston speed up to 500 mm/s. Dimensions: length 160.5 mm, width 80 mm, height 64 mm; weight 1.3 kg.

This Pneumatic Guided Cylinder is ideal for industrial automation, mechanical machinery, hydraulic and pneumatic tooling, and other fluid power applications requiring high precision and durability. It is manufactured in France, ensuring compliance with quality standards and reliable performance.

Explore the full range of pneumatic cylinders and actuators offered by SMC and other leading industrial brands in the EnvMart catalog to find solutions tailored to your operational requirements.
