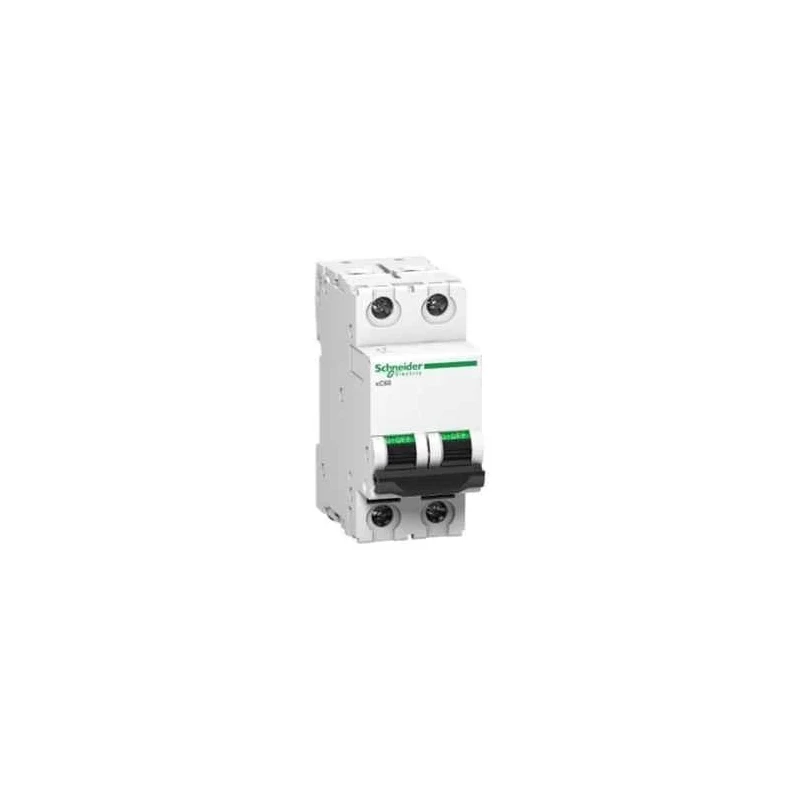

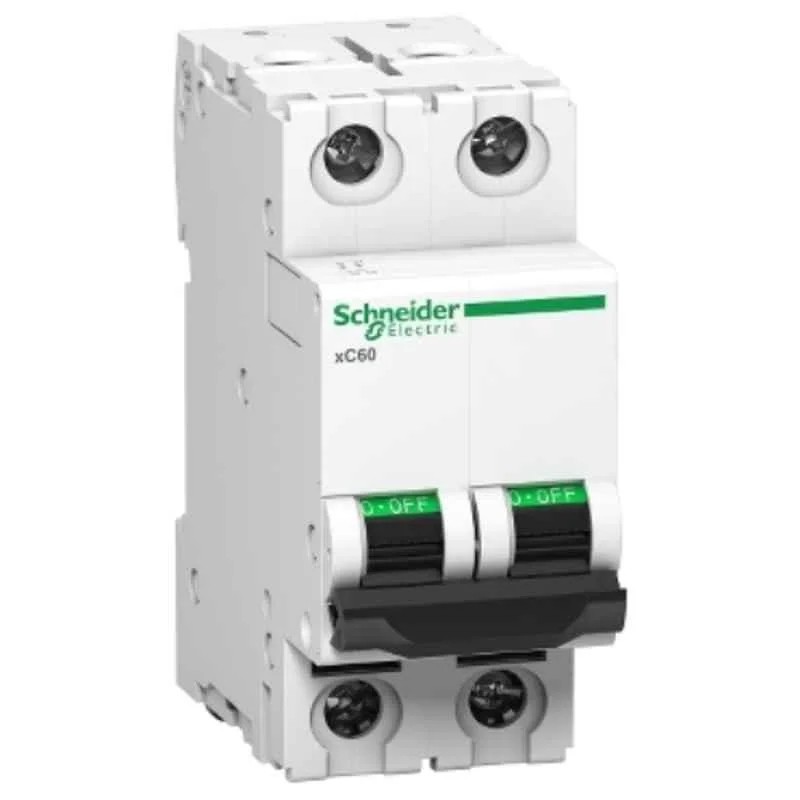

Schneider Electric Acti9 xC60 Double Pole MCB 20A B Curve Breaking Capacity 10 kA A9N2P20B

Schneider Electric Acti9 xC60 Double Pole 20A B-Curve MCB is engineered for advanced protection of residential and commercial electrical circuits. This miniature circuit breaker (MCB) combines high-breaking capacity with reliable performance to prevent electrical mishaps caused by overloads and short circuits. The double pole configuration ensures both lines are securely isolated when tripping occurs, enhancing safety.

With a current rating of 20A and a B-curve tripping characteristic, it is excellent for sensitive low-voltage circuits that require fast response to faults. The device’s breaking capacity of 10 kA means it can withstand and safely interrupt high fault currents, making it highly dependable in demanding environments. Its thermal magnetic control mechanism ensures accurate operation, toggling automatically under abnormal conditions.

Installation is straightforward thanks to its clip-on design for standard DIN rails, and its IP20 protection class shields against dust and accidental finger contact. It operates efficiently across a wide temperature range, from -30°C to +70°C, so it’s suitable for various climate zones. The insulation voltage is rated at 500 VAC, and impulse voltage at 6 kV, supporting robust performance in electrical networks.

Provides fast protection against short circuits and overloads. High breaking capacity of 10 kA ensures safety and durability. Double pole design supports secure isolation and control. B-Curve tripping characteristic suitable for sensitive circuits.

Thermal magnetic mechanism for precise switching. Easy clip-on mounting on DIN rail for quick installation. IP20 protection class safeguards from dust and accidental contact. Supports operation from -30 to 70°C for wide ambient conditions.

Rated for 20A current at 240 VAC, ideal for domestic circuits.

This MCB is ideal for use in homes, offices, and industrial setups where dependable circuit protection is vital. Typical applications include main boards, distribution boxes, lighting, and socket circuits. Its robust features and efficient design make it a trusted choice for electrical engineers and installers.
