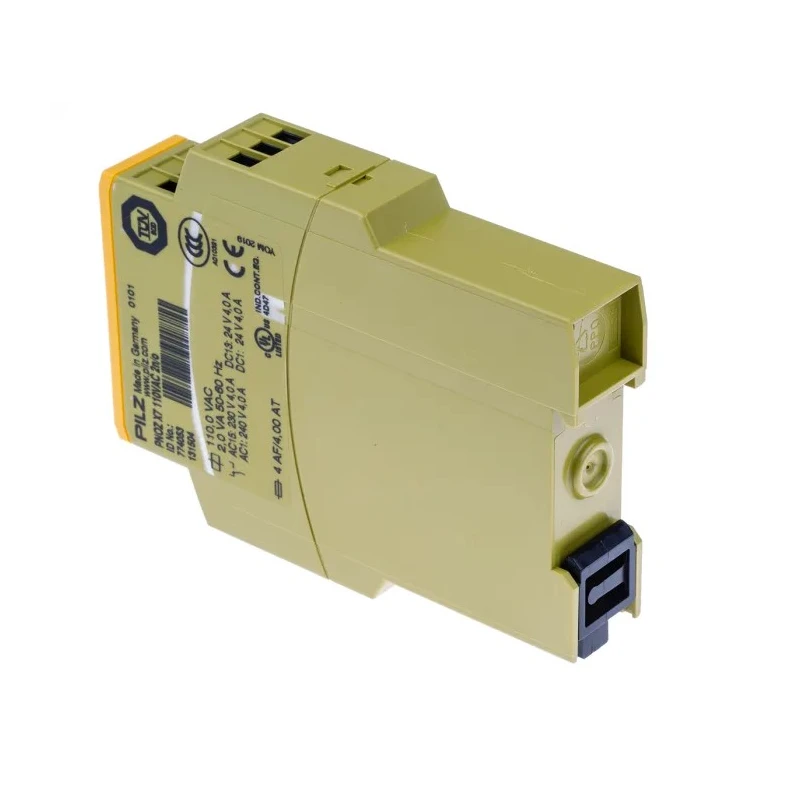

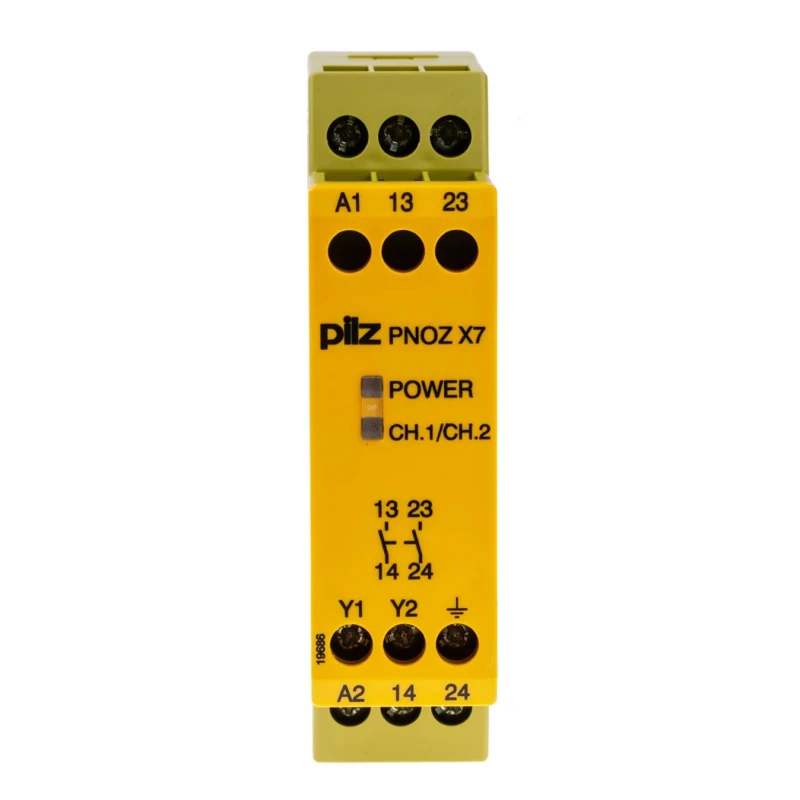

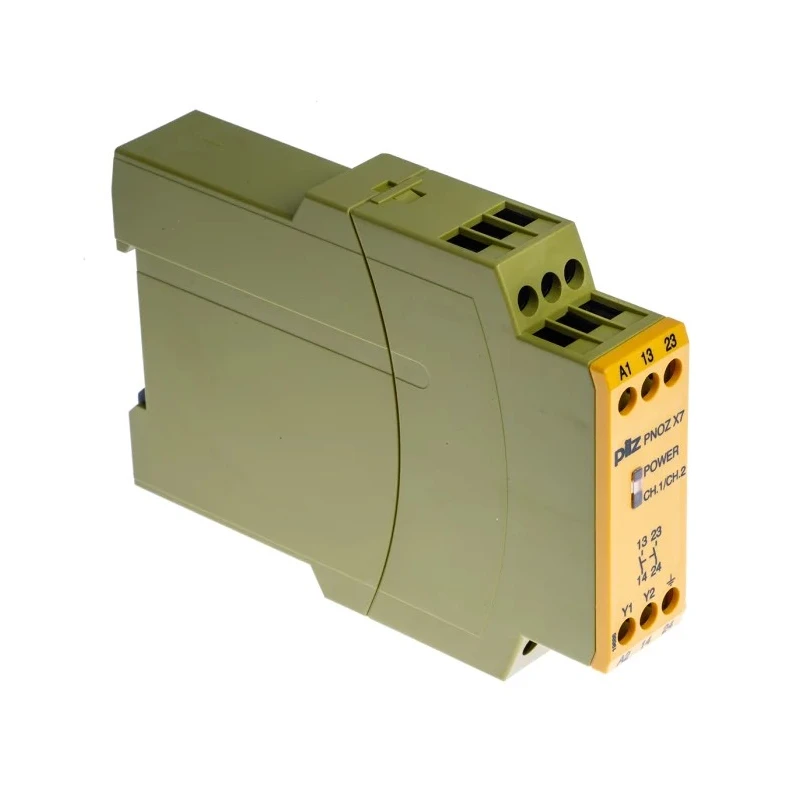

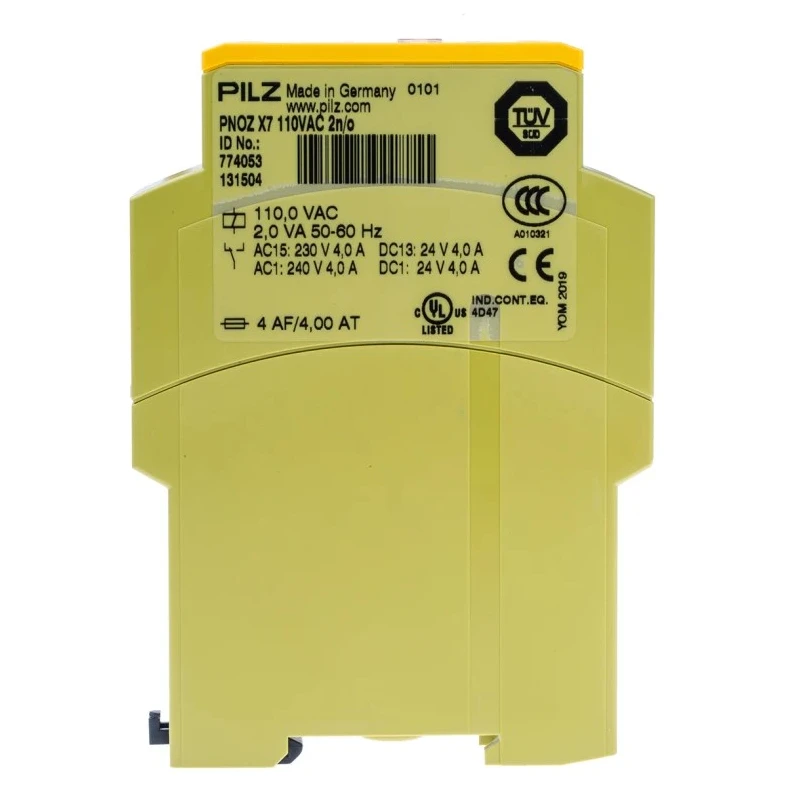

Pilz Safety Relay 110V AC, 2 Safety Contacts, 1 Auxiliary Contact, DIN Rail Mount PNOZ X7 774053

Pilz 774053 PNOZ X7 Safety Relay operates on 110V AC coil voltage, designed specifically for safety-related switching in industrial automation environments. This device incorporates 2 normally open safety contacts and 1 auxiliary contact configured for DIN rail mounting, making it suitable for integration into control cabinets and automated systems.

The relay ensures high reliability with automatic self-testing at every power-up, alongside LED status indicators that provide clear visual feedback on operational status, including supply voltage presence. Its built-in redundancy and self-monitoring functionalities guard against failures, maintaining a continuous safety function in challenging environments.

Rated to handle contact currents up to 4A with switching voltages of 240V AC and 24V DC, this safety relay complies with internationally recognized standards such as EN 60947-4-1, IEC 60204-1, and others, ensuring trusted performance in compliance-driven applications.

Typical applications include emergency stop buttons, reset buttons, and external relay or contactor feedback monitoring in automated production lines, warehouses, and manufacturing plants requiring fast and reliable safety interruption.

The device is compact with an IP rating that includes IP20, IP40, and IP54 variants, suitable for installation in various industrial environments with operating temperatures ranging from -10°C to 55°C. The coil voltage is specified as 110V AC, aligning with common industrial power supply configurations.

Equipped with 2 normally open safety contacts and 1 auxiliary contact providing versatile control options. DIN rail mounting standard offers straightforward installation within control panels. LED status indication enables easy monitoring of operational status and supply voltage.

Automatic self-testing on each power cycle enhances operational safety and reliability. Designed with built-in redundancy and self-monitoring to sustain safety function even during component failure. Meets key international safety and electrical standards for industrial automation.

Suitable for emergency stop and reset button applications in hazardous environments. Compact dimensions (121mm H x 87mm L x 22.5mm W) and IP ratings of IP20, IP40, and IP54 provide installation flexibility. Explore the full range of Pilz Safety Relays and industrial automation components available at EnvMart to ensure your operations maintain highest safety standards and reliability.
