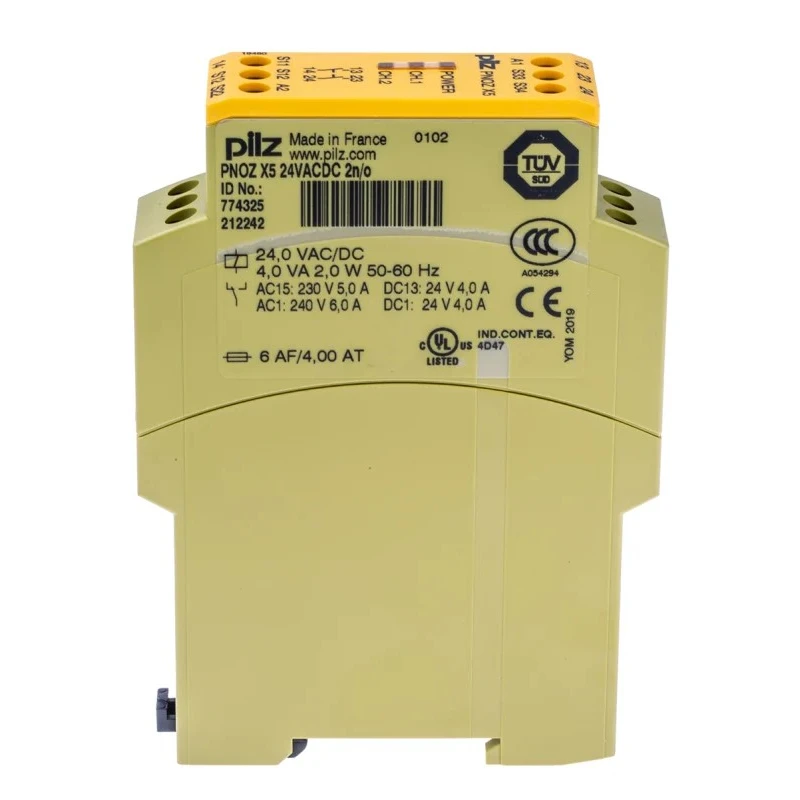

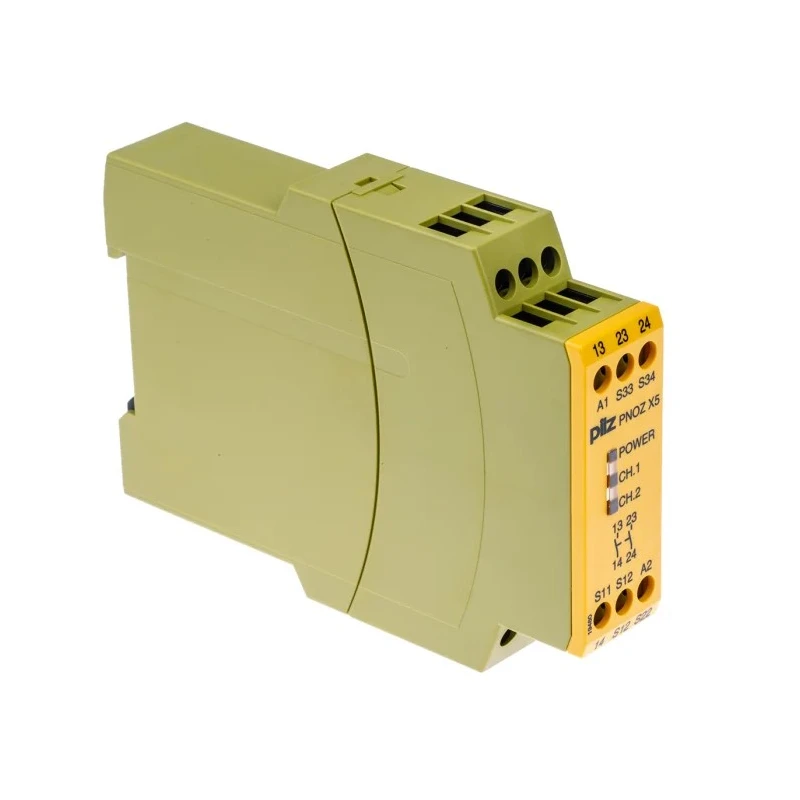

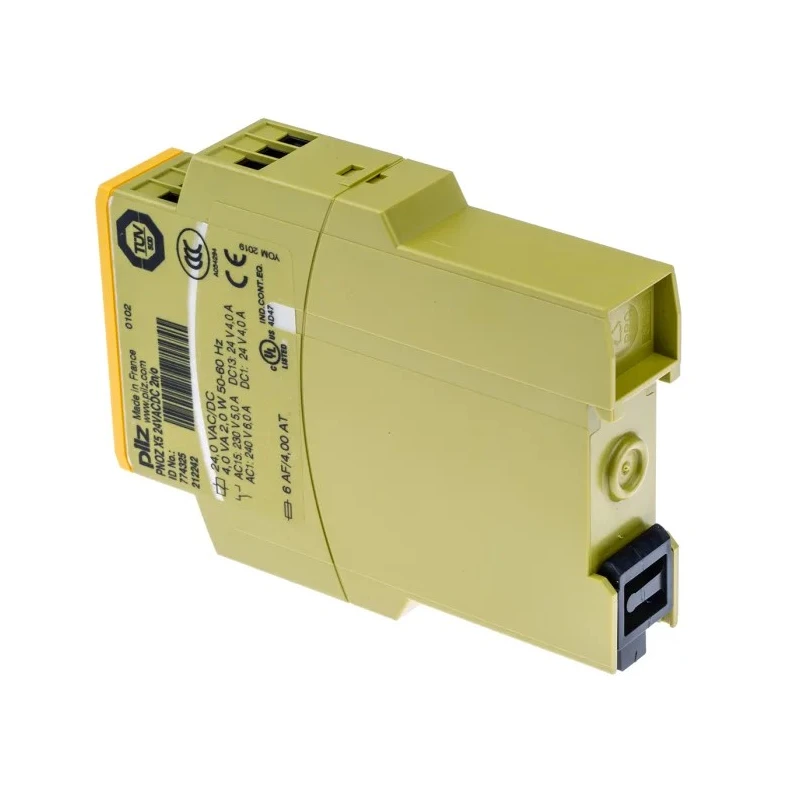

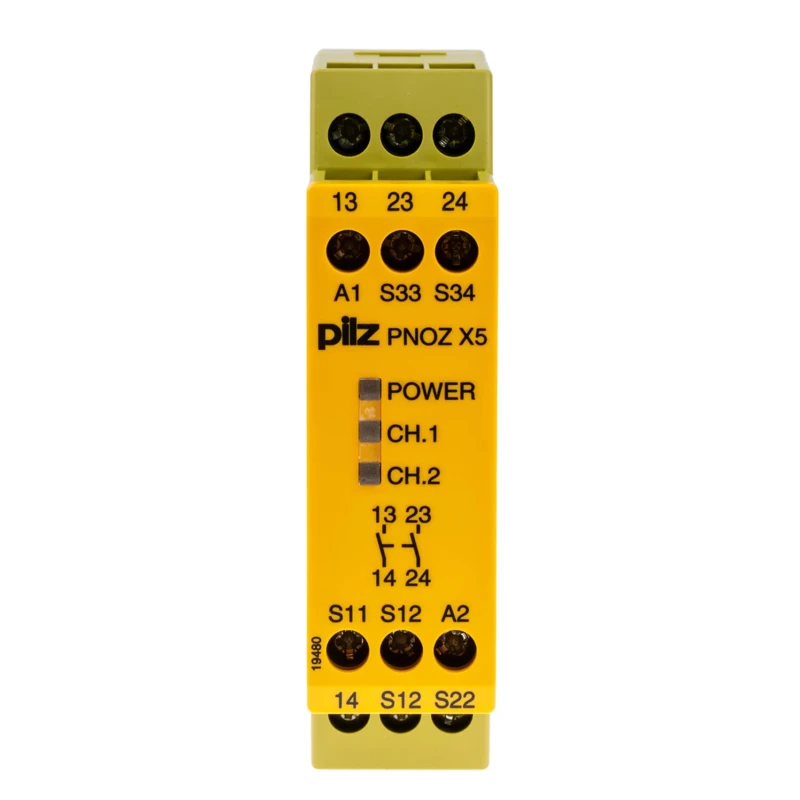

Pilz PNOZ X5 24V AC/DC Safety Relay with 2 Safety Contacts and 1 Auxiliary Contact 774325

Pilz 774325 PNOZ X5 is a highly reliable 24V AC/DC safety relay featuring dual channel configuration with 2 normally open safety contacts and 1 auxiliary contact. This electromechanical safety relay is designed for use in industrial automation, manufacturing systems, and hazardous environments requiring rapid and secure power cut-off to protect personnel and machinery.

The device supports DIN rail mounting and uses screw type terminals for secure and convenient wiring. It offers LED status indication to continuously display supply voltage presence, facilitating easy diagnostics and maintenance. Reset functionality can be configured for either automatic or manual operation ensuring adaptability to varied application needs.

PNOZ X5 adheres to multiple international standards including EN ISO 13849-1 (Safety of machinery), EN 60947-5-1 (Control circuit devices and switching elements), and VDE 0113-1 ensuring compliance with modern safety requirements. Its protection ratings IP54, IP20, and IP40 make it suitable for industrial environments with exposure to dust and moisture.

Operating temperature range from -10°C to 55°C allows deployment in diverse climatic conditions while maintaining performance and reliability. The relay’s rugged build withstands heavy shocks and vibrations typically encountered in factory and warehouse setups with high foot traffic.

Typical applications include monitoring of emergency stop pushbuttons, line inspection devices, and small control systems where achieving Performance Level e (PLe)/Category 4 safety is critical. The built-in redundancy and self-monitoring features enhance circuit and component fault detection, preventing unsafe conditions and ensuring continuous operational safety.

2 normally open safety contacts for reliable circuit isolation. DIN rail mount facilitates easy installation. LED indicators for real-time voltage status. Configurable reset - manual or automatic modes. Screw terminals provide robust connections.

IP54, IP20, IP40 ratings for dust and splash protection. Certified to meet EN ISO 13849-1 and EN 60947-5-1 safety standards. Wide operating temperature range: -10°C to 55°C. Manufactured in France ensuring quality assurance.

Ideal for factory automation, conveyor systems, and safety circuit monitoring. Explore related Safety Relays and automation components in the Electronics & Electricals category at EnvMart.
