Amphenol Communications Solutions Right Angle Surface Mount Female 1 Port Micro USB Type B USB 2.0 Connector 10118194-0001LF

Free Delivery in India | Lowest Global Shipping Charges

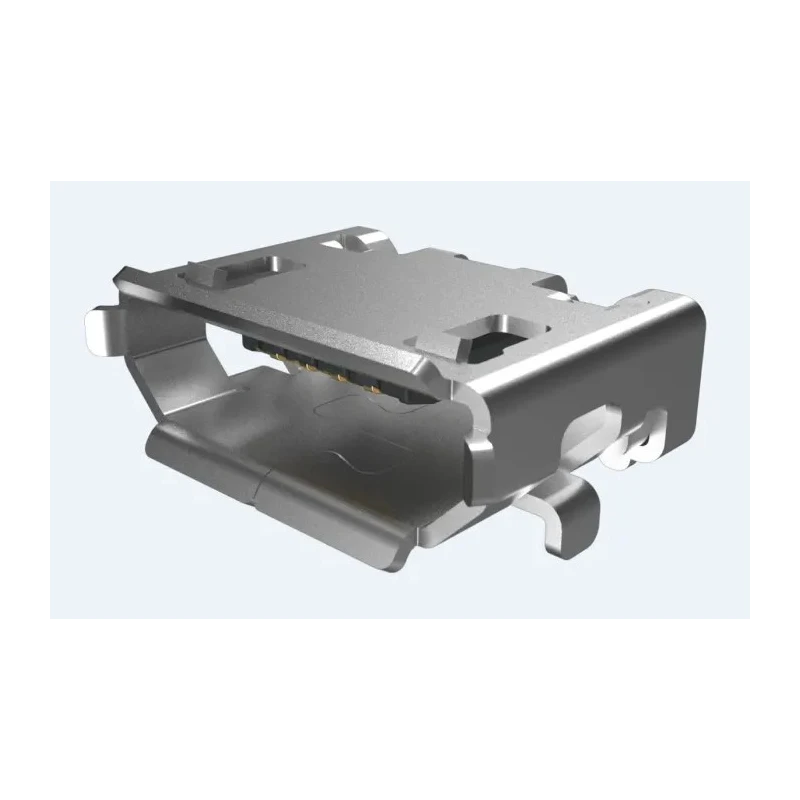

Amphenol Communications Solutions Right Angle Surface Mount Female 1 Port Micro USB Type B USB 2.0 Connector 10118194-0001LF

Name: Amphenol Communications Solutions Right Angle Surface Mount Female 1 Port Micro USB Type B USB 2.0 Connector 10118194-0001LF
Brand: Amphenol Communications Solutions
SKU: 145846
Price: 0.59 USD
Availability: InStock



Category USB Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	Amphenol Communications Solutions
Orientation	Right Angle
Current	1A
Model	10118194-0001LF
Mount Type	Surface
Contact Material	Copper Alloy
Series	101xxxxx-0001LF
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Interfaces	USB 2
USB Type	Micro USB Type B
Connector Gender	Female
USB Specification	USB 2.0

Key Features

Supports USB 2.0 with data rates suitable for various applications.
Compact right angle design for space-saving PCB layouts.
High temperature UL94V-0 thermoplastic housing ensures durability.
EMI and ESD shielding provide excellent signal protection.
Capable of withstanding up to 10,000 insertion cycles for long service life.
Operates safely between -55°C to 85°C temperature range.
Contact made from copper alloy for reliable conductivity.
Designed for solder termination for secure PCB mounting.

Product Description

Amphenol Communications Solutions 10118194-0001LF is a right angle surface mount female USB connector with a single port Micro USB Type B interface compliant with USB 2.0 specifications. This connector supports On-The-Go (OTG) functionality for enhanced user convenience and accessibility.

The connector housing is constructed from high temperature UL94V-0 thermoplastic material, ensuring resistance to heat and flame. Metal shielding provides robust EMI and ESD protection, essential for maintaining signal integrity in demanding environments. It is engineered to endure up to 10,000 insertion cycles, offering reliable long-term usage with maximum receptacle to PCB retention.

Operating voltage is rated at 100 volts with a continuous current capacity of 1 ampere, suitable for a range of low-power electronic applications. The connector functions efficiently across a broad temperature range from -55°C to 85°C.

Termination is via soldering, offering secure and stable mechanical and electrical connection on the PCB. Contact materials consist of copper alloy to deliver consistent conductivity and durability over time.

This Micro USB 2.0 receptacle connector is suitable for consumer electronics such as smartphones, tablets, MP3 players, smartwatches, and Bluetooth headphones. It also fits well in industrial and communication applications including field PCs and satellite phones, providing flexibility and performance in varied use cases.

Supports USB 2.0 data rates and OTG functionality. High temperature thermoplastic housing with UL94V-0 certification. Full EMI/ESD shielding to protect signal quality. Durable up to 10,000 insertion cycles. Compact right angle design saves PCB space.

Reliable copper alloy contacts. Surface mount solder termination type. Operating temperature range from -55°C to 85°C. Rated current 1 Amp and voltage 100 Volts. Applications in consumer and industrial electronics.

This product is an ideal choice for OEMs and PCB assemblers requiring high-quality, durable USB connectors that combine performance, compliance, and longevity. Explore similar USB Connectors in the EnvMart catalogue for additional options.
